Roadster Supply Company - Roadster Supply Traditional Hairpin Radius Rod Kit

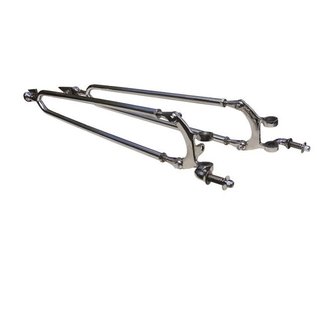

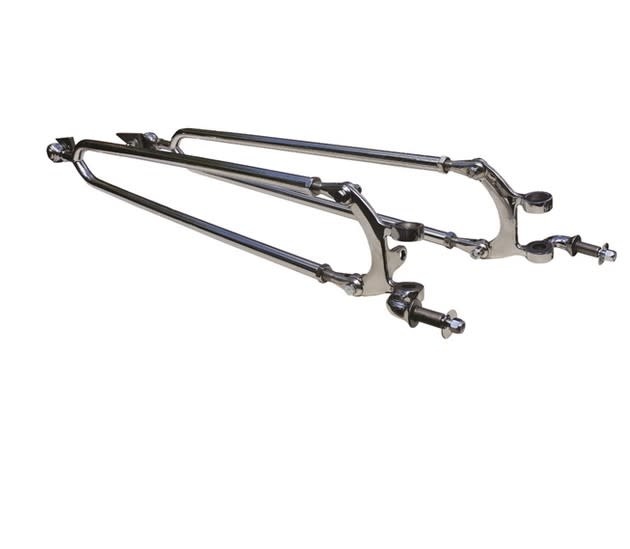

Roadster Supply Traditional Hairpin Radius Rod Kit - Select Polished Stainless or Bare Steel Above

Designed for use with 1932 - 1934 Ford but may work with other applications. Fully polished stainless steel or bare steel construction. Batwings feature built in lower shock mounts and panhard mounting tab. Includes polished stainless steel or bare steel 11/16" - 18 sealed tie rod ends and front clevises. Center of frame mount tab to center of perch pin: 36 1/2".Made in The USA. SOLD AS KIT

FEATURES:

Designed For Use With 1932 - 1934 Ford
May Fit Other Applications

Center of Frame Mounting Bracket to Center of Perch Pin: 36 1/2" (+/- 1/2" Adjustment)
Batwing Mounting Holes Center to Center: 4 3/4"
For Perch Boss: 2 1/4"

Our traditional hot rod hairpins are made from 304 stainless steel or bare steel and come beautifully TIG welded. They feature a longer stub than cheaper alternatives to provide further adjustment and less thread sticking out from the back end. The investment cast stainless steel batwings feature a built in lower shock mount and panhard mounting tab. The frame mounting brackets are easy to weld forged steel and can be welded at an angle to suit various axle widths. The kit comes complete with 11/16" - 18 sealed tie rod ends and 5/8" - 18 adjustable clevises in the front. The polished stainless kit uses chrome mounting hardware for maximum shear strength. Better yet... All designed and manufactured in The USA.

WHAT'S INCLUDED:

NOTES & TIPS:

The Traditional batwings feature a built in lower shock mount. This allows them to be made with a flat bottom design, eliminating the need for a tapered washer or tapered perch nut during installation.

The Traditional batwings have a built in panhard mounting tab with a 1/2" thru hole on the right batwing.

Remember to always use Anti-Seize on all stainless steel and aluminum parts.
