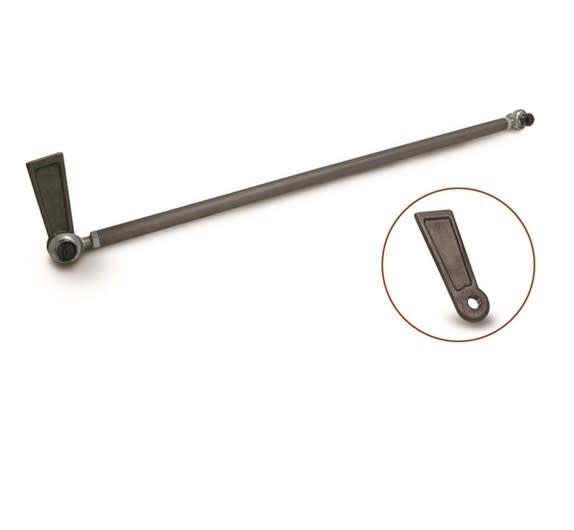

Roadster Supply Front Panhard Bar Kit With Forged Frame Bracket- Plain Steel - Select Length Below
Read more...
| Article number: | 00162012 |
| Quantity: | 2 |
Roadster Supply Front Panhard Bar Kit With Forged Frame Bracket- Plain Steel - Select Length Above
Made from 3/4" OD steel tubing. Includes 1 left hand thread and 1 right hand thread 1/2" - 20 aircraft style heim joint ends. Includes easy to weld forged frame tab. Heim Joint ID: 1/2". Overall adjustment in: 3/4". Overall adjustment out: 1 1/8". Choose from industry standard lengths. Made in the USA. SOLD AS KIT
FEATURES:
Choose from various industry standard lengths.
See Notes & Tips below for common Hot Rod applications.
Overall Adjustment In: 0.750"
Overall Adjustment Out: 1.125"
Heim Joint ID: 0.500"
Made in the USA. Overall adjustment measurements are based on safe operating thread engagement. All threads are tapped extra deep to allow slight trimming of bar if necessary. This kit is also available in polished stainless steel. Search for Polished Panhard Kit in the search box to learn more.
WHAT'S INCLUDED:
| 1 (ONE) | 3/4" OD Plain Steel Panhard Bar Link |
| 1 (ONE) | Forged Steel Frame Mounting Tab |
| 1 (ONE) | Left Hand Thread Steel Heim Joint Assembly |
| 1 (ONE) | Right Hand Thread Steel Heim Joint Assembly |
| 2 (TWO) | Steel Jam Nuts (1 Left and 1 Right) |
| 1 (ONE) | Mounting Hardare Kit |
NOTES & TIPS:
We recommend always measuring before buying any panhard bar kit.
Typical uses include:
Stock Width 1932 Frame with 34" Perch Width Center to Center Axle: Use 28" C-C Panhard (62014)
Stock Width 1932 Frame with 36 1/2" Perch Width Center to Center Axle: Use 29" C-C Panhard (62018)
Pinched Nose 1932 Frame with 34" Perch Width Center to Center Axle: Use 27" C-C Panhard (62010)
Pinched Nose 1932 Frame with 36 1/2" Perch Width Center to Center Axle: Use 28" C-C Panhard (62014)
