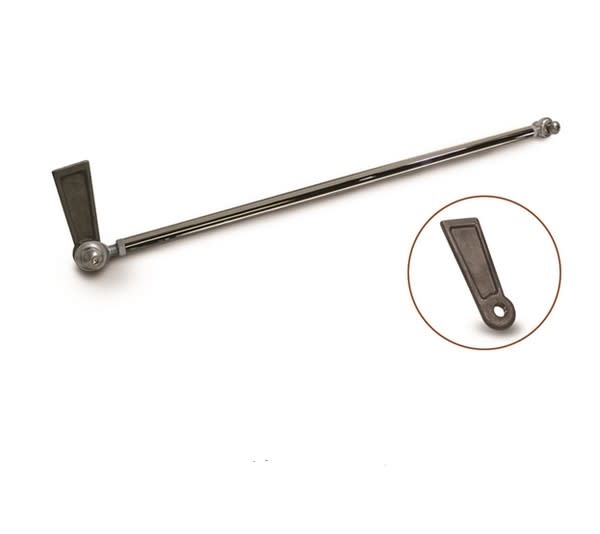

Roadster Supply Company - Roadster Supply Front Panhard Bar Kit With Forged Frame Bracket - Polished Stainless Steel

Roadster Supply Front Panhard Bar Kit With Forged Frame Bracket - Polished Stainless Steel - Select Length Above

Made from 3/4" OD 304 stainless steel tubing. Includes 1 left hand thread and 1 right hand thread 1/2" - 20 aircraft style heim joint ends. Includes easy to weld forged frame tab. Heim Joint ID: 1/2". Overall adjustment in: 3/4". Overall adjustment out: 1 1/8". Choose from industry standard lengths. Made in the USA. SOLD AS KIT

FEATURES:

Choose from various industry standard lengths.
See Notes & Tips below for common Hot Rod applications.

Overall Adjustment In: 0.750"
Overall Adjustment Out: 1.125"
Heim Joint ID: 0.500"

Made in the USA. Overall adjustment measurements are based on safe operating thread engagement. All threads are tapped extra deep to allow slight trimming of bar if necessary. 304 Stainless Steel is used on all our polished panhard links for a show quality finish. This kit is also available in plain steel. Search for Steel Front Panhard Kit in the search box to learn more.

WHAT'S INCLUDED:

NOTES & TIPS:

We recommend always measuring before buying any panhard bar kit.

Typical uses include:

Stock Width 1932 Frame with 34" Perch Width Center to Center Axle: Use 28" C-C Panhard (62015)
Stock Width 1932 Frame with 36 1/2" Perch Width Center to Center Axle: Use 29" C-C Panhard (62019)
Pinched Nose 1932 Frame with 34" Perch Width Center to Center Axle: Use 27" C-C Panhard (62011)
Pinched Nose 1932 Frame with 36 1/2" Perch Width Center to Center Axle: Use 28" C-C Panhard (62015)

Remember to always use Anti-Seize on all stainless steel and aluminum parts.
