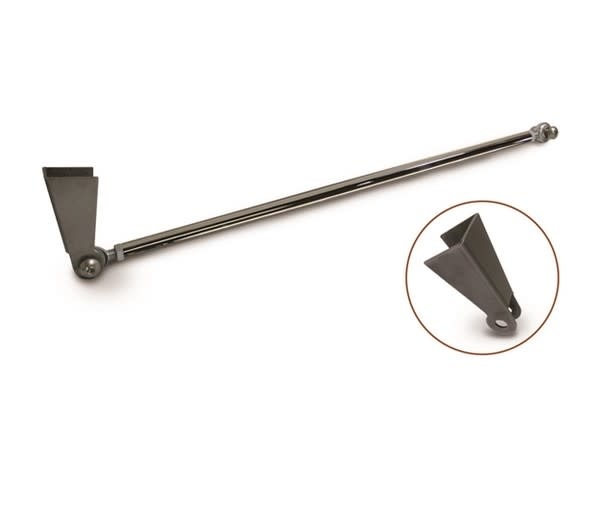

Roadster Supply Company - Roadster Supply Front Panhard Bar Kit With Stamped Steel Frame Bracket- Polished Stainless Steel

Roadster Supply Front Panhard Bar Kit With Stamped Steel Frame Bracket- Polished Stainless Steel - Select Length Below

Read more...
$94.99 Excl. tax
Delivery time: Due to supply chain delays currently affecting the world, order fulfillment may be delayed. Call 620-792-2836 with any questions.
+ -
Add to cart

Roadster Supply Front Panhard Bar Kit With Stamped Steel Frame Bracket- Polished Stainless Steel - Select Length Above

Made from 3/4" OD 304 stainless steel tubing. Includes 1 left hand thread and 1 right hand thread 1/2" - 20 aircraft style heim joint ends. Includes double shear stamped steel frame tab. Heim Joint ID: 1/2". Overall adjustment in: 3/4". Overall adjustment out: 1 1/8". Choose from industry standard lengths. SOLD AS KIT

FEATURES:

Choose from various industry standard lengths.
See Notes & Tips below for common Hot Rod applications.

Overall Adjustment In: 0.750"
Overall Adjustment Out: 1.125"
Heim Joint ID: 0.500"

Overall adjustment measurements are based on safe operating thread engagement. All threads are tapped extra deep to allow slight trimming of bar if necessary. The stamped frame bracket places the heim joint between two walls for a double shear mount. 304 Stainless Steel is used on all of our polished panhard links for a show quality finish. This kit is also available in plain steel. Search for Steel Front Panhard Kit in the search box to learn more.

WHAT'S INCLUDED:

1 (ONE)   3/4" OD Polished Stainless Steel Panhard Bar Link
1 (ONE) Stamped Steel Frame Mounting Tab
1 (ONE)  Left Hand Thread Steel Heim Joint Assembly
1 (ONE) Right Hand Thread Steel Heim Joint Assembly
2 (TWO)   Steel Jam Nuts (1 Left and 1 Right)
1 (ONE) Stainless Steel Mounting Hardware Kit


NOTES & TIPS:

We recommend always measuring before buying any panhard bar kit.

Typical uses include:

Stock Width 1932 Frame with 34" Perch Width Center to Center Axle: Use 28" C-C Panhard (20228)
Stock Width 1932 Frame with 36 1/2" Perch Width Center to Center Axle: Use 29" C-C Panhard (20229)
Pinched Nose 1932 Frame with 34" Perch Width Center to Center Axle: Use 27" C-C Panhard (20227)
Pinched Nose 1932 Frame with 36 1/2" Perch Width Center to Center Axle: Use 28" C-C Panhard (20228)

Remember to always use Anti-Seize on all stainless steel and aluminum parts.
