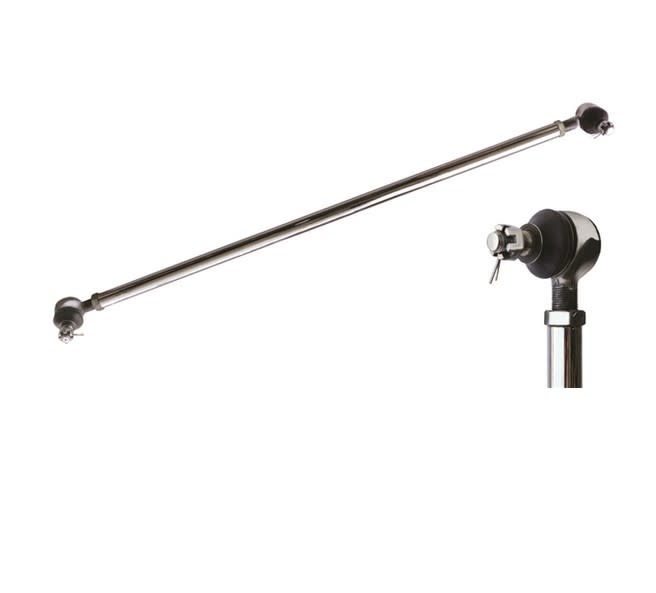

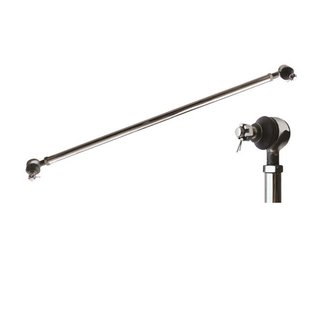

Roadster Supply Tie Rod Kits - Polished Stainless Steel - Select Length Above
Made from 7/8" OD stainless steel tubing. Includes 1 left hand thread and 1 right hand thread 11/16"-18 Ford tie rod end assemblies. Overall adjustment in: 3/8". Overall adjustment out: 3/4". Choose from industry standard lengths or specify a custom length. SOLD AS KIT
FEATURES:Choose from various industry standard lengths or specify a custom length. Overall Adjustment In: 0.375" Overall Adjustment Out: 0.750" Tie Rod End Taper Angle: 7 Degrees Designed to keep tie rod ends adjusted in for better aesthetics and a stronger steering link. All threads are tapped extra deep to allow trimming of bar if necessary. 304 Stainless Steel is used on all of our polished steering links for a show quality finish. This kit is also available in plain steel. Search for Steel Tie Rod Kit in the search box to learn more. WHAT'S INCLUDED:
| 1 (ONE) |
7/8" OD Polished Stainless Steel Steering Link |
| 1 (ONE) |
Left Hand Thread Polished Stainless Steel Tie Rod End Assembly |
| 1 (ONE) |
Right Hand Thread Polished Stainless Steel Tie Rod End Assembly |
| 2 (TWO) |
Polished Stainless Steel Jam Nuts (1 Left and 1 Right) |
| 2 (TWO) |
Polished Stainless Steel Castle Nuts |
| 2 (TWO) |
Stainless Steel Split Pins |
NOTES & TIPS:
We recommend always measuring before buying any tie rod or drag link kit, refer to Technical Specifications below for helpful hints on measuring your steering links.
Remember to always use Anti-Seize on all stainless steel and aluminum parts.
|
|
