Roadster Supply Company - Roadster Supply Tie Rod Kits - Plain Steel

Roadster Supply Tie Rod Kits - Plain Steel - Select Length Below

Read more...
$85.99 Excl. tax
Delivery time: Typically Ships In 1 Business Day
+ -
Add to cart
Article number: 00160632
Quantity: 2

Roadster Supply Tie Rod Kits - Plain Steel - Select Length Above

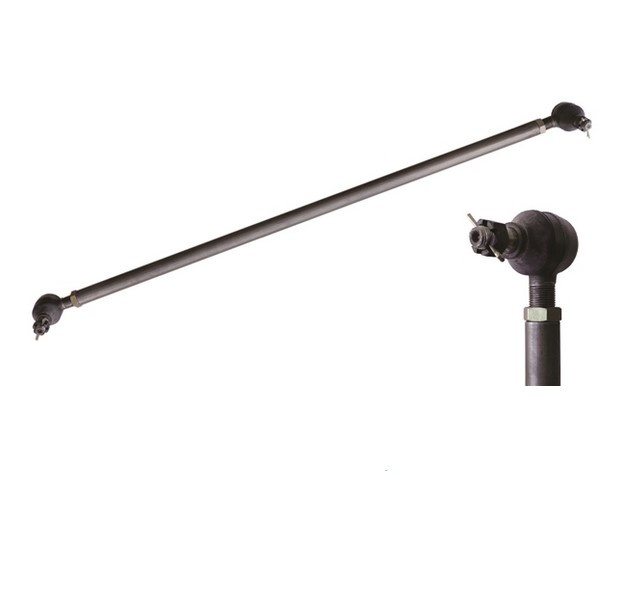

Made from 7/8" OD steel tubing. Includes 1 left hand thread and 1 right hand thread forged 11/16"-18 Ford tie rod end assemblies. Overall adjustment in: 3/8". Overall adjustment out: 3/4". Choose from industry standard lengths or specify a custom length. SOLD AS KIT

FEATURES:

Choose from various industry standard lengths or specify a custom length.

Overall Adjustment In: 0.375"
Overall Adjustment Out: 0.750"
Tie Rod End Taper Angle: 7 Degrees

Designed to keep tie rod ends adjusted in for better aesthetics and a stronger steering link. All threads are tapped extra deep to allow trimming of bar if necessary. This kit is also available in polished stainless steel. Search for Polished Tie Rod Kit in the search box to learn more.

WHAT'S INCLUDED:

1 (ONE)   7/8" OD Plain Steel Steering Link
1 (ONE)  Left Hand Thread Forged Steel Tie Rod End Assembly
1 (ONE) Right Hand Thread Forged Steel Tie Rod End Assembly
2 (TWO) Plain Steel Jam Nuts (1 Left and 1 Right)
2 (TWO) Plain Steel Castle Nuts
2 (TWO) Plain Steel Split Pins

NOTES & TIPS:

We recommend always measuring before buying any tie rod or drag link kit, refer to Technical Specifications below for helpful hints on measuring your steering links.




Technical Specifications
