Roadster Supply Company - Roadster Supply Drag Link Kits - Polished Stainless Steel

Roadster Supply Drag Link Kits - Polished Stainless Steel - Select Length Below

Read more...
$189.99 Excl. tax
Delivery time: Typically Ships In 1 Business Day
+ -
Add to cart
Article number: 00162180
Quantity: 2

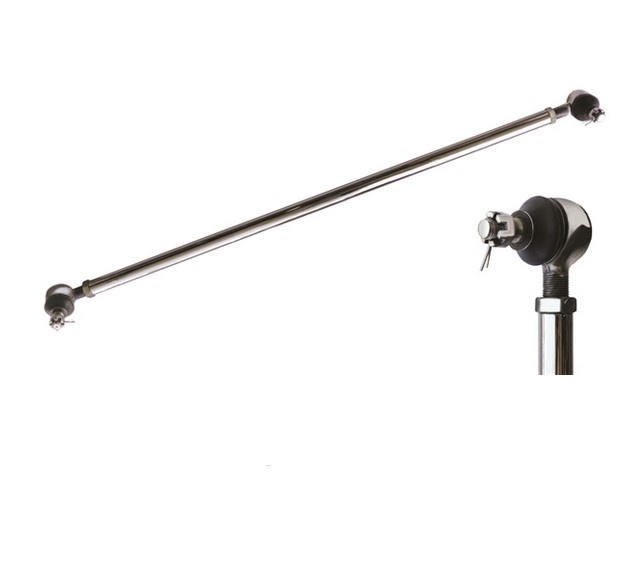

Roadster Supply Drag Link Kits - Polished Stainless Steel - Select Length Above

Made from 7/8" OD stainless steel tubing. Includes 1 left hand thread and 1 right hand thread 11/16"-18 Ford tie rod end assemblies. Overall adjustment in: 3/8". Overall adjustment out: 3/4". Choose from industry standard lengths or specify a custom length. SOLD AS KIT

FEATURES:

Choose from various industry standard lengths or specify a custom length.

Overall Adjustment In: 0.375"
Overall Adjustment Out: 0.750"
Tie Rod End Taper Angle: 7 Degrees

Designed to keep tie rod ends adjusted in for better aesthetics and a stronger steering link. All threads are tapped extra deep to allow trimming of bar if necessary. 304 Stainless Steel is used on all of our polished steering links for a show quality finish. This kit is also available in plain steel. Search for Steel Tie Rod Kit in the search box to learn more.

WHAT'S INCLUDED:

1 (ONE)   7/8" OD Polished Stainless Steel Steering Link
1 (ONE)  Left Hand Thread Polished Stainless Steel Tie Rod End Assembly
1 (ONE) Right Hand Thread Polished Stainless Steel Tie Rod End Assembly
2 (TWO)   Polished Stainless Steel Jam Nuts (1 Left and 1 Right)
2 (TWO) Polished Stainless Steel Castle Nuts
2 (TWO) Stainless Steel Split Pins

NOTES & TIPS:

We recommend always measuring before buying any tie rod or drag link kit, refer to Technical Specifications below for helpful hints on measuring your steering links.

Remember to always use Anti-Seize on all stainless steel and aluminum parts.




Technical Specifications
