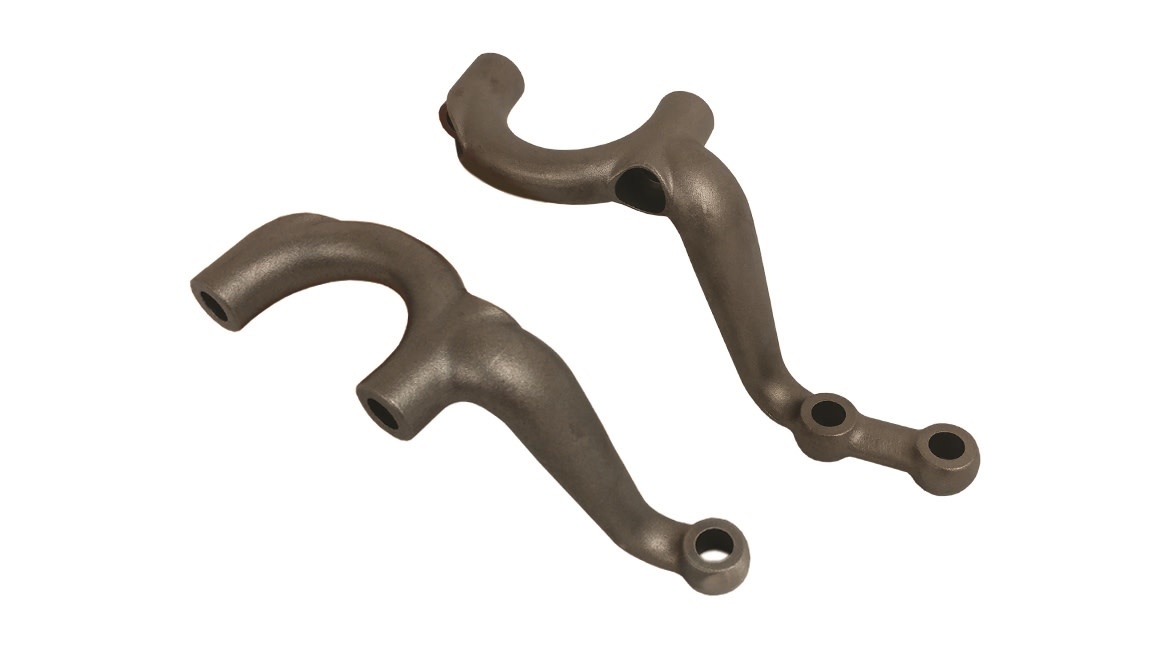

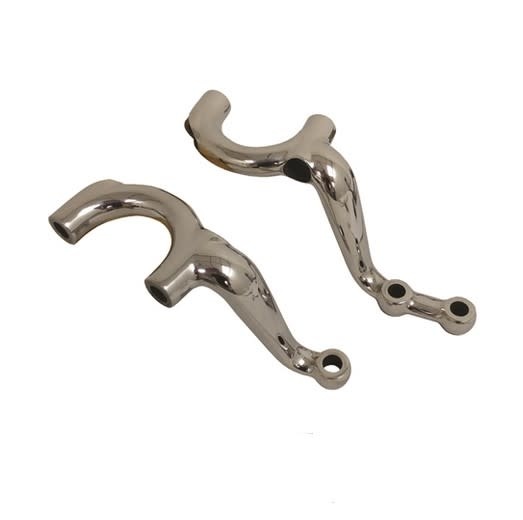

Roadster Supply Deep Drop Thru Hole Steering Arms - Select Plain or Polished Above
Made in the USA from investment cast, 17-4 stainless steel. Thru-hole bolt design for increased safety. Fits 1937-1948 Ford spindles. Deep Drop arms engineered for 4" drop axle with wishbones. Accepts 5/8" or 11/16" Ford tie rod ends. Tapered 7 degrees from bottom side. See Technical Specifications below for part dimensions. Made in the USA. SOLD IN PAIRS
FEATURES:For Use With 1937-1948 Ford Spindles Mounting Center to Center Width: 3.300" Tie Rod End Taper Angle: 7 Degree Tapered From Bottom Side Manufactured from investment cast, 17-4 stainless steel and all made in the USA! Thru hole steering arms offer increased safety over blind hole steering arms by allowing users to put a nyloc nut or lock washer to secure their steering. The deep drop arm is most commonly used on 4" dropped axles using wishbones. See Technical Specifications below for part dimensions. 7 degree taper suits Ford style tie rod ends. All American Hot Rod Parts' thru hole steering arms come with a 0.800" bolt head bore, ideal for 1/2" socket cap mounting bolts, also available on this store. WHAT'S INCLUDED:
| 1 (ONE) |
Left Side Thru Hole Steering Arm |
| 1 (ONE) |
Right Side Thru Hole Steering Arm |
NOTES & TIPS:
See measurements in the Technical Specifications tab below to ensure this part will fit your application.
If using hairpins or 4-bars, we recommend running "standard drop" steering arms, also available on this store. Search for Standard Drop Steering Arms in the search box to learn more.
If using a 5" axle, we recommend running "5 inch drop" steering arms, also available on this store. Search for 5" Steering Arms in the search box to learn more.
Illustrations in the Technical Specifications tab are for reference of dimensions ONLY. They may not be an accurate reflection of what the part looks like and may not be drawn to scale.
|
|
