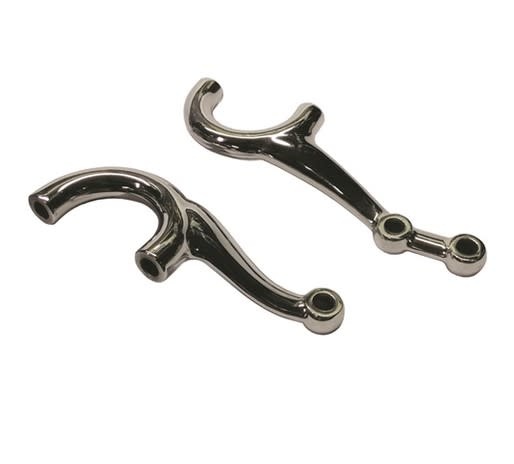

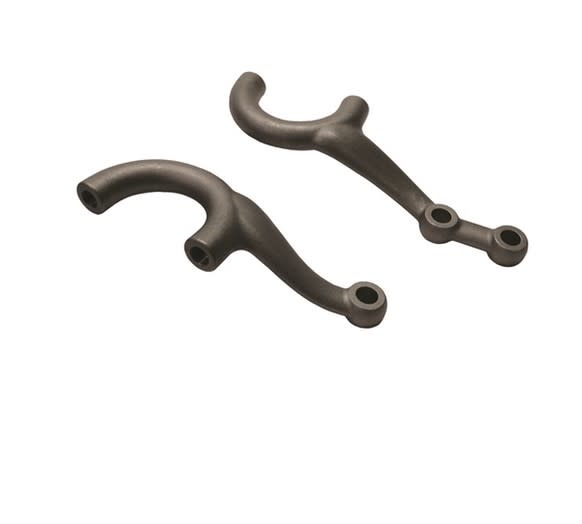

Roadster Supply Blind Hole Steering Arms - Select Polished Stainless, Plain Stainless or Bare Steel Above
1/2"-20 blind hole thread. Fits 1937-1948 Ford spindles. Engineered for 4" drop axle with hairpin radius rods or four bar suspension. Accepts 5/8" or 11/16" Ford tie rod ends. Tapered 7 degrees from bottom side. SOLD IN PAIRS
FEATURES:For Use With 1937-1948 Ford Spindles Mounting Center to Center Width: 3.300" Tie Rod End Taper Angle: 7 Degree Tapered From Bottom Side Thread Size: 1/2"-20 Blind hole steering arms offer maximum backing plate clearance for many hot rod brake kits on the market today. Designed for a sleek aesthetic and added strength, these blind hole steering arms keep a constant body diameter around the hoop. The standard drop is most commonly used on 4" dropped axles with a hairpin radius rod or four bar front suspension. WHAT'S INCLUDED:
| 1 (ONE) |
Left Side Blind Hole Steering Arm |
| 1 (ONE) |
Right Side Blind Hole Steering Arm |
NOTES & TIPS:
See measurements in the Technical Specifications tab below to ensure this part will fit your application.
If using wishbones, we recommend running "deep drop" steering arms
If using a 5" axle, we recommend running "5 inch drop" steering arms
Illustrations in the Technical Specifications tab are for reference of dimensions ONLY. They may not be an accurate reflection of what the part looks like and may not be drawn to scale.
|
|
