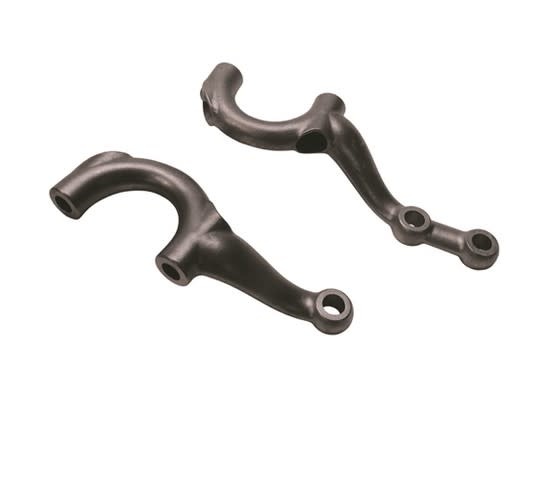

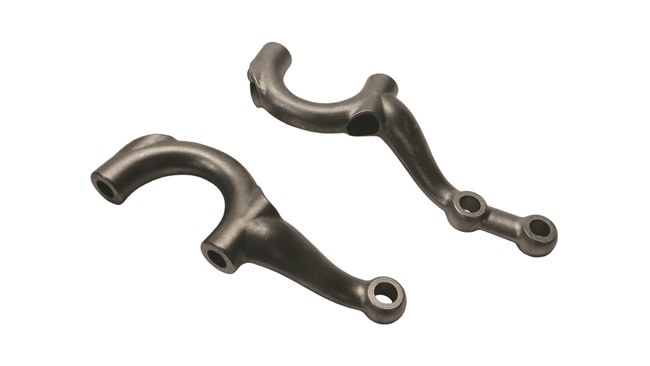

Roadster Supply Thru Hole Steering Arms - Select Polished Stainless, Plain Stainless or Bare Steel Above
Thru-hole bolt design for increased safety. Fits 1937-1948 Ford Spindles. Engineered for 4" drop axle with hairpin radius rods or four bar suspension. Accepts 5/8" or 11/16" Ford tie rod ends. Tapered 7 degrees from bottom side. SOLD IN PAIRS
FEATURES:For Use With 1937-1948 Ford Spindles Mounting Center to Center Width: 3.300" Tie Rod End Taper Angle: 7 Degree Tapered From Bottom Side Thru hole steering arms offer increased safety over blind hole steering arms by allowing users to put a nylock nut or lock washer to secure their steering. The standard drop is most commonly used on 4" dropped axles with a hairpin radius rod or four bar front suspension. All American Hot Rod Parts' thru hole steering arms come with a 0.800" bolt head bore, ideal for 1/2" socket cap mounting bolts. WHAT'S INCLUDED:
| 1 (ONE) |
Left Side Thru Hole Steering Arm |
| 1 (ONE) |
Right Side Thru Hole Steering Arm |
NOTES & TIPS:
See measurements in the Technical Specifications tab below to ensure this part will fit your application.
If using wishbones, we recommend running "deep drop" steering arms, also available on this store. Search for Deep Drop Steering Arms in the search box to learn more.
If using a 5" axle, we recommend running "5 inch drop" steering arms
Illustrations in the Technical Specifications tab are for reference of dimensions ONLY. They may not be an accurate reflection of what the part looks like and may not be drawn to scale.
|
|
