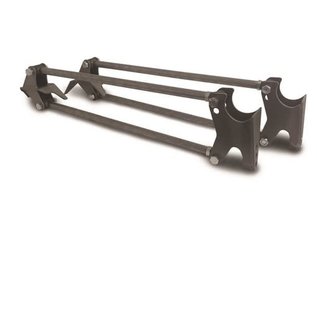

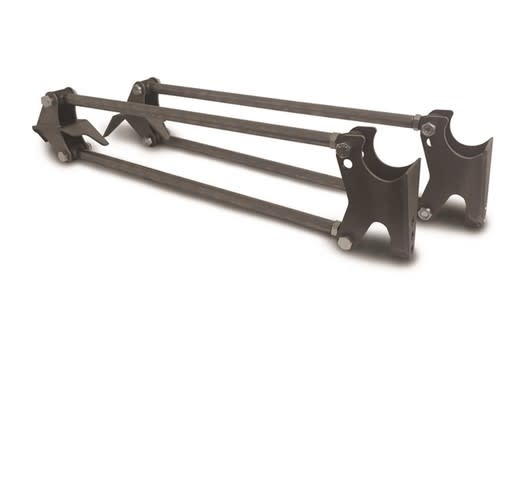

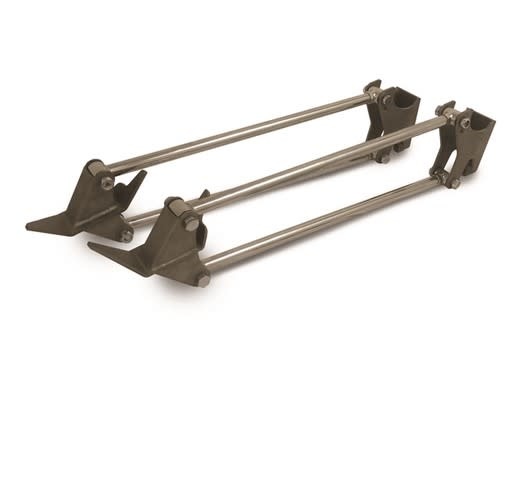

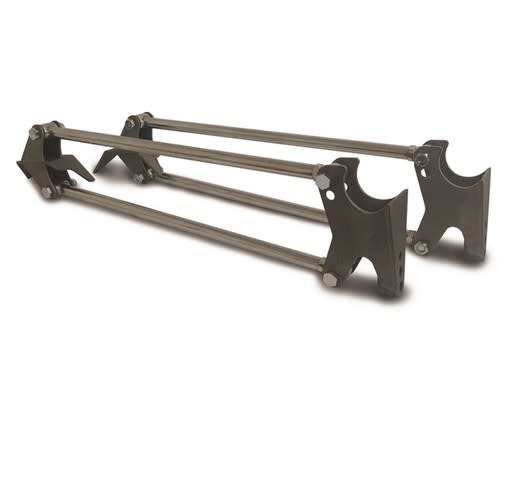

Roadster Supply Short Rear Paralell 4-Bar Kits - Select Polished Stainless or Bare Steel Above
Parallel style, universal rear end 4 link kit. Shorty design for several 1932 - 1940's car and truck applications, but may suit others. Designed for 3" OD rear end housings and made for coil over type suspensions. See Technical Specifications tab below for part dimensions to ensure proper fitment. SOLD AS KIT
FEATURES:Weld in Style Suits 3" OD Housings A rear four link kit really simplifies fine tuning your rear end, and this kit provides even further adjustability. Offering 3 positions for coil overs (ride height adjustability) and frame brackets that can be welded to the inside (most common) or outside of the frame rails based on application, and can be mounted either up or down to minimize interference. Made from DOM tubing and features forged steel adjusters. Shorty design is common for most 1932 - 1940 Hot Rod applications, but may suit others. See the Technical Specifications tab below for measurements. WHAT'S INCLUDED:
| 4 (FOUR) |
Steel or Polished Stainless Bars with Adjuster and Bushings Installed |
| 2 (TWO) |
Weld On Rear Housing Brackets Coil Over |
| 2 (TWO) |
Weld On Front Frame Brackets |
| 1 (ONE) |
8 Piece Steel Bolt Kit |
NOTES & TIPS:
This kit requires the use of a panhard bar to prevent lateral movement of the rear end. Various rear panhard kits are available on this store.
Refer to Technical Specifications below for measurements and bolt size information.
|
|
