Roadster Supply Company - Roadster Supply 1932 Ford Rear Panhard Bar Kits For Winters V8 Steel Bell Rear

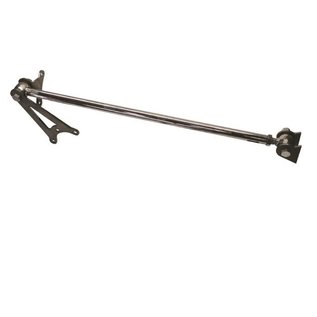

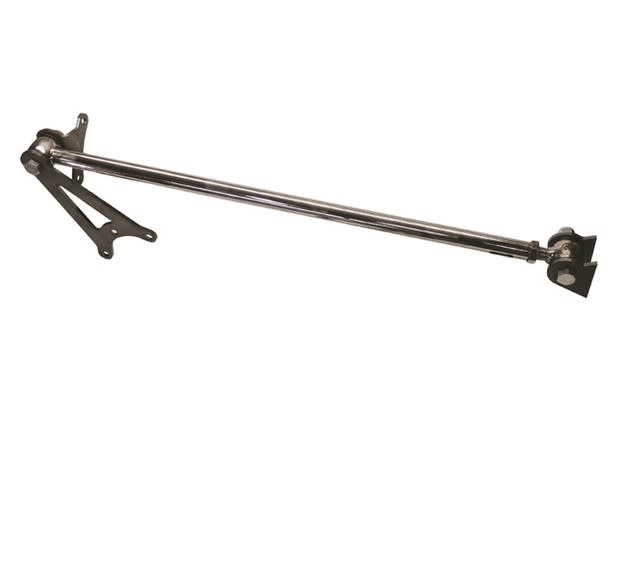

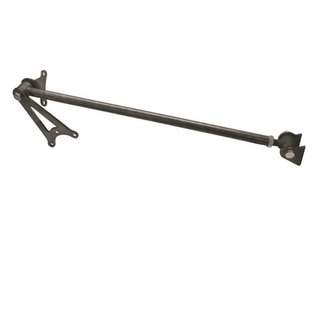

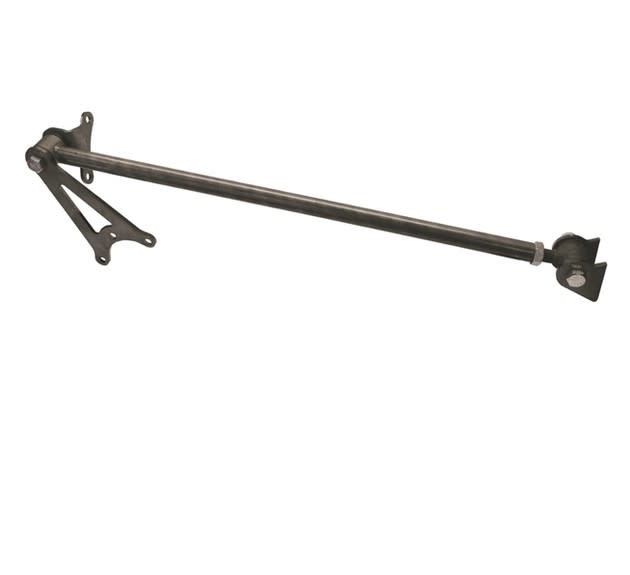

Roadster Supply 1932 Ford Rear Panhard Bar Kits For Winters V8 Steel Bell Rear - Select Polished Stainless or Bare Steel Below

Read more...
$149.99 Excl. tax
Delivery time: Due to supply chain delays currently affecting the world, order fulfillment may be delayed. Call 620-792-2836 with any questions.
+ -
Add to cart

Roadster Supply 1932 Ford Rear Panhard Bar Kits For Winters V8 Steel Bell Rear - Select Polished Stainless or Bare Steel Above

Made from 7/8" OD DOM tubing. Suits Winters V8 Steel Bell quick change rear ends in 1932 Ford applications. Includes all mounting brackets and hardware. Stops lateral rear end movement in both coil over and traditional shackle style suspensions. SOLD AS KIT

FEATURES:

Suits 1932 Ford chassis with Winters V8 Steel Bell Quick Change

A rear panhard is a must for coil over suspensions but also helps reduce lateral movement in any buggy spring style suspensions. Designed to bolt off of existing hardware on the winters V8, steel side bell quickchange, and weld to the inside of 1932 frame rails. The kit has 3/8" adjustment in or out to accommodate different frame boxing methods. This kit is available in polished stainless or bare steel.

WHAT'S INCLUDED:

1 (ONE)   7/8" OD Panhard Bar Link
1 (ONE) Complete 5/8" Forged Rod End Adjuster
1 (ONE)   Frame Mount and Housing Mount Bracket Kit
1 (ONE) Mounting Bolt Hardare Kit


NOTES & TIPS:

This panhard kit will not work with every winters quick change. It is designed for use with the Hot Rod, V8 style center section, Quick change, using tapered steel side bells.
