Kwik Performance - LS Wide Mount Mini AC Bracket for Camaro F-Body (98-02)/GTO (04-06) Bracket - K10674

Genuine Kwik Performance LS Wide Mount Mini AC Bracket for Camaro F-Body (98-02)/GTO (04-06) Bracket - K10674

Wide-Mount AC relocation bracket for LS engines with Camaro/Firebird F-Body (1998-2002) or GTO (2004-06) crank pulley and water pump spacing.

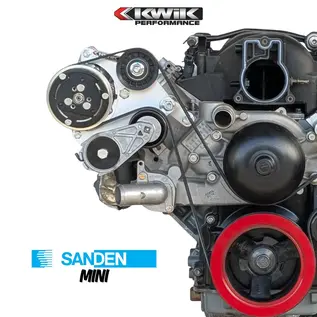

This bracket mounts the popular Sanden mini compressor (SD7B10) just outside the passenger’s side valve cover and is driven by one main 6-rib serpentine belt.

This configuration is popular in classic muscle cars because it maintains low hood clearance without being as wide as some of our competitors.  Our overall width is just 15.24” from the center of the engine to the outer edge of the compressor.

If you need more compressor capacity, check our wide-mount bracket for Sanden 508/709 style compressors, K10471.

What driver’s side bracket works with this AC bracket?

Teams up perfectly with our alternator/power-steering bracket K10167

Works with your OEM alternator/power-steering bracket

• Camaro/Firebird F-Body (1998-2002)
• GTO (2004-06)

What's included:

• Bracket made of 6061-T6 aircraft grade aluminum (brushed satin finish)
• All necessary spacers and zinc coated fasteners
• Automatic spring-style belt tensioner
• Idler Pulley

What else is required to complete the installation:

• GM LS Gen 3 or 4 engine with Camaro F-Body (1998-2002) or GTO (2004-06) harmonic balancer and water pump
• Six-rib belt, see our included installation instructions for suggested lengths and Gates part numbers.
• Complete Gates belt chart available.
• Alternator, rating and PS pulley diameters can change suggested lengths.
• Always check tensioner marks for correct fitment.
• Sanden Mini SD7B10 7176 AC compressor

ITEM IS NON-RETURNABLE ONCE IT HAS BEEN INSTALLED ON ENGINE
