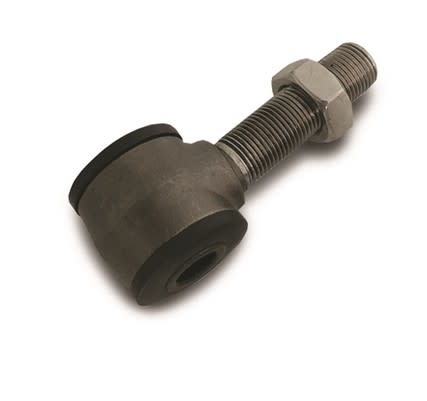

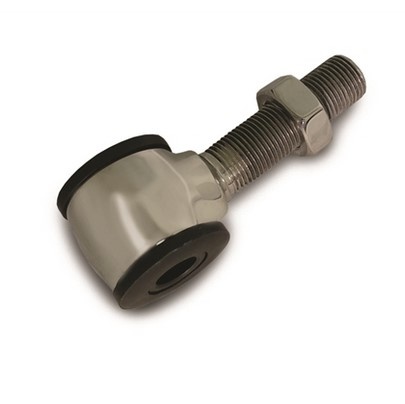

Roadster Supply 7 Degree 5/8"-18 Angled Rod End Adjuster - Select Polished or Plain Stainless Above
Traditional style rod end adjuster with a 7 degree angle. Manufactured from investment cast, 17-4 grade, stainless steel. High quality polyurethane bushings with an included inner sleeve for longer life. Available in 1/2", 9/16", or 5/8" ID sleeve. Thread size: 5/8"-18. Overall width: 1.375" Common for use on front 4 bar and hairpins. Jam nut included. See Technical Specifications below for part dimensions. SOLD EACH
FEATURES:Universal Application See Technical Specifications tab below for part dimensions. Misalignment and binding causes many problems on hot rods, having the correct angle on your rod end can make all the difference. Designed with a built in 7 degree shank angle and all 1 piece, investment cast from 17-4 stainless steel. Includes quality polyurethane bushings and steel inner sleeve for a long life. Common for use on all 4-bar and hairpin front ends and several other trac bar and panhard bars using rod end adjusters. WHAT'S INCLUDED:
| 1 (ONE) |
7 Degree Rod End Adjuster Assembly |
NOTES & TIPS:
Dimensions shown are not exact and may vary slightly, they are shown to help determine which part is correct for your application. If you are not sure this is the correct part please contact our sales team for more information.
Illustrations in the Technical Specifications tab are for reference of dimensions ONLY. They may not be an accurate reflection of what the part looks like and may not be drawn to scale.
Remember to always use Anti-Seize on all stainless steel and aluminum parts.
|
|
