1969 Chevy Camaro/Firebird Notched Corner EFI Gas Tank - TM32BN-T

This notched corner 69 Camaro and Firebird tank is perfect for mini-tub applications.  The front of this tank is narrowed to 27" to clear up to a 345 tire and 3" exhaust.  To help regain fuel capacity from the notched corners this tank is 1" deeper than stock.  Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust.  Please note that this tank will not work with narrowed leaf spring kits.

• 1969 Chevy Camaro and Pontiac Firebird EFI Fuel Tank
• Fuel Injection Ready!
• Utilizes our GPA series fuel pumps, available in sizes from 109 to 450 liters per hour.
• Uses aftermarket 5-bolt senders.  Multiple Ohm ranges available to work with factory or aftermarket gauges. If using tube sender length is 7".
• EFI style internal baffling with extra large 4.8 liter dual tube baffled fuel tray to prevent fuel pump starvation.
• Perfect for your Pro-Touring, Autocross or Road Racing Ride

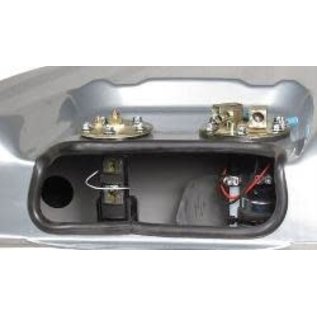

• Fuel pump and sender are recessed in the tank for easy installation with no modification needed to your car.
• Looks like an OE tank when installed.
• Coated galvanized steel then Powder Coated Silver.
• 18 Gallon Capacity
• 1" Deeper than stock
• Longer mounting straps included with the tank
• Size is: 39-3/8" x 20-7/8" x 8-3/4"

For a complete setup simply choose a GPA fuel pump and fuel sending unit.
