Master Power Brakes - Billet X Master Cylinder - Screw In Lid - 15/16" Bore Size

Genuine Master Power Brakes Billet X Master Cylinder - Screw In Lid - 15/16" Bore Size

Brake lines going to the master cylinder are a must. However, they should never look like an afterthought or ruin the overall look of the engine compartment. With the BILLET X Master Cylinder, you can run the lines to the bottom of the master cylinder for a clean, finished look. In addition, it’s a modular design and comes in different lid and finish options.

Fitment Notes:

• Billet X  Master Cylinder mounting flange will accept a 3 1/8″ – 3 3/8″,  two bolt pattern. Mopar applications with a four bolt pattern will require some modification.
• Brake line routing will require modification.

The BILLET X Master Cylinder includes the following features:

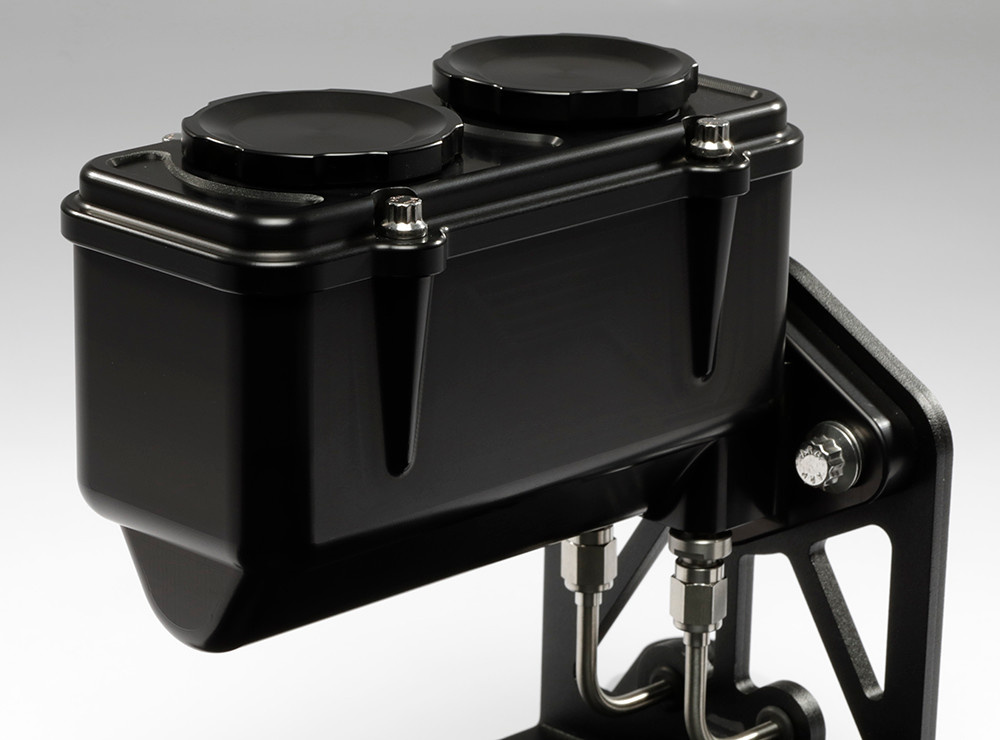

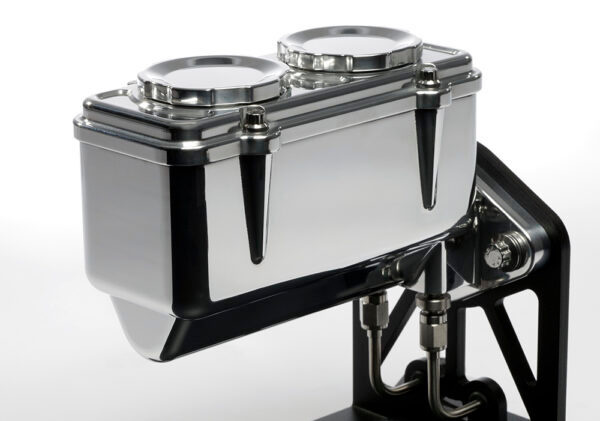

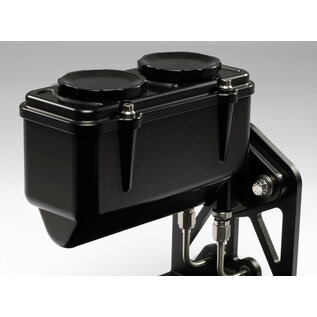

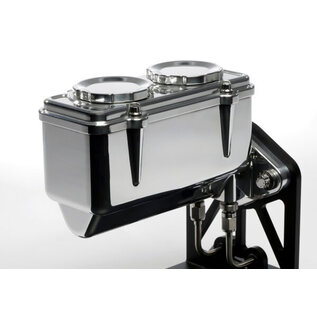

• Black Anodized Finish, Hand-Polished Finish, or

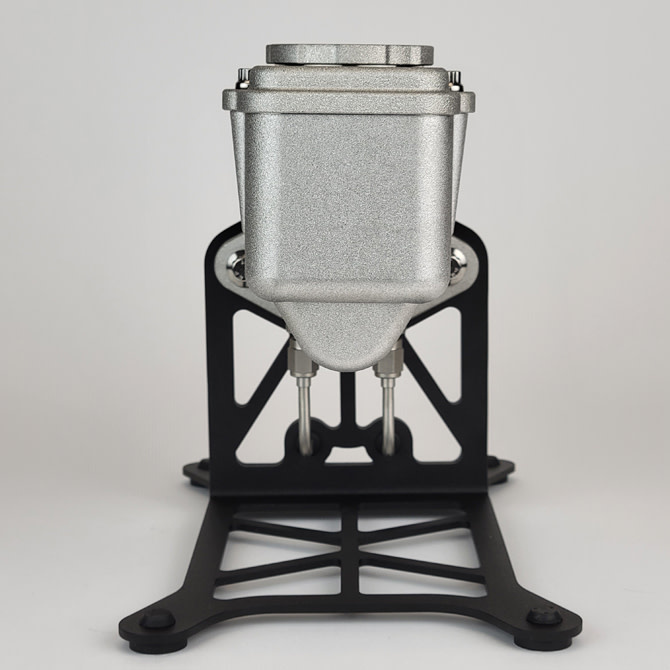

• Natural Aluminum with a Shot-Peened Finish for that Classic, Cast Aluminum Look
• Screw-In Caps for a super easy filling and maintaining of brake fluid.
• Completely CNC machined using 6061 Aluminum
• 15/16″ Bore with Hardcoat Anodized Aluminum Internals with EPDM Rubber Seals
• Polished ARP 12-Point Fasteners
• Machined for 3/8″-24 Inverted Flare Hardlines
• Includes (2) 3/8″-24 x -3 AN Stainless Steel Adapters
• Mounting flange will accept 3-1/8″ Ford pattern and 3-3/8″ GM Pattern
• Slug included and will work in both Manual and Power applicaiton.
• Custom finishes available. Click HERE for more information.
