TIG welded bare steel alternator bracket that mounts: GM 10si, 12si or CS130 alternators that have 6:00 & 12:00 mounting ears, high and outboard on driver side of small block Chevrolet engine. Fits short water pump only.
Read more...
| Quantity In Stock: | 2 |

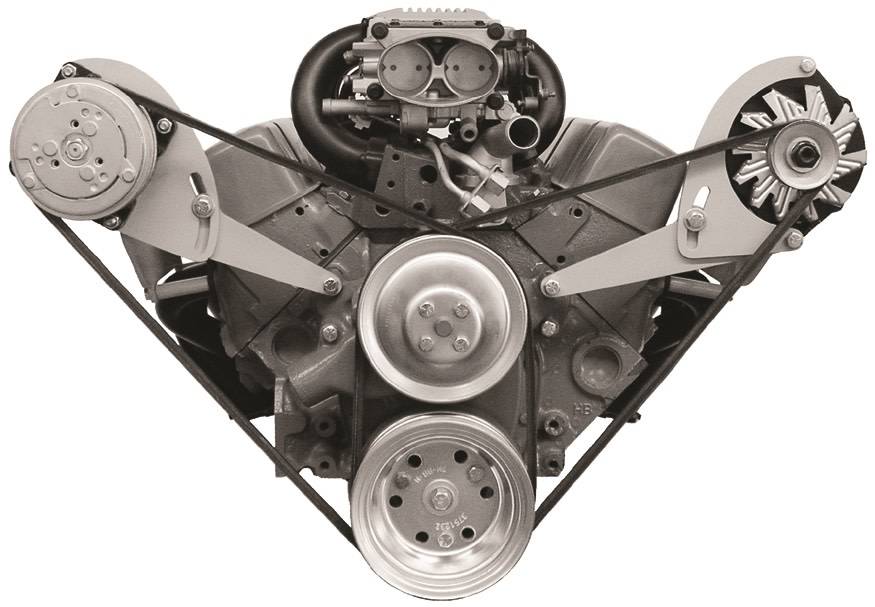

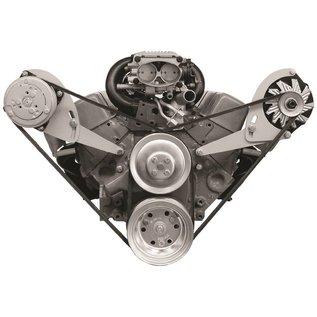

213L Alternator Bracket

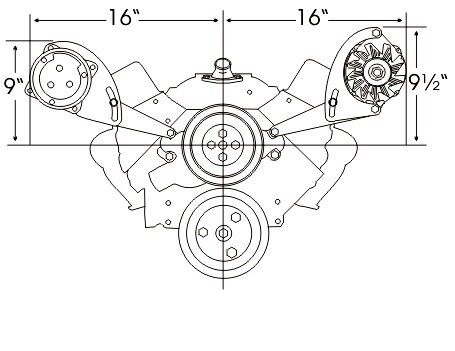

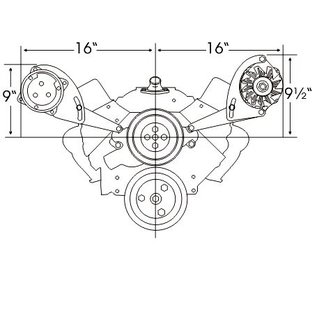

These brackets bolt to the water pump and exhaust. NO HOLES NEEDED in head. Furnished with hardware to fit stock exhaust manifolds and most headers. If used with headers the front tube must turn down enough to allow access to the bolt hole in front of the second pipe.(See Side View) Use as a stand alone alternator bracket or in conjunction with 113R A/C Compressor Bracket. Short water pump only.
Water Pump Identification/Technical Information
