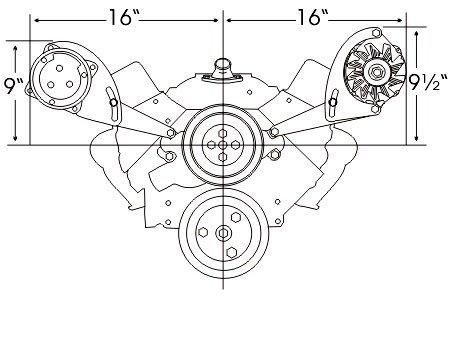

TIG welded bare steel A/C compressor bracket that mounts Sanden 508 or 709 compressor high and outboard on passenger side of small block Chevrolet engine. Fits short water pump only.
Read more...
| Article number: | 15127-SCA |
| Quantity In Stock: | 6 |
113R Compressor Bracket

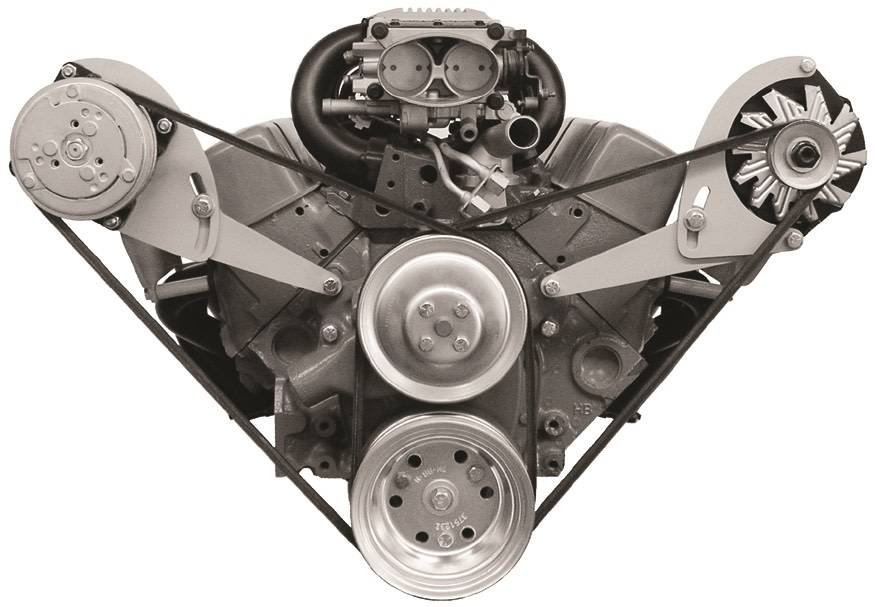

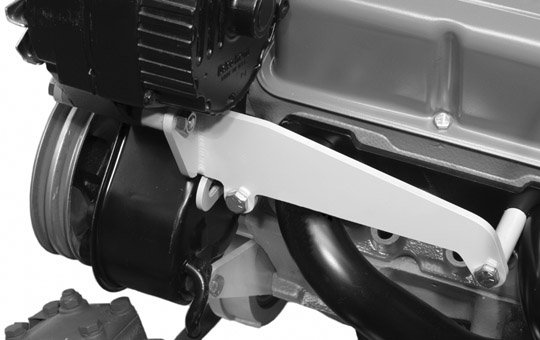

This bracket bolts to the water pump and exhaust. NO HOLES NEEDED in head. Furnished with hardware to fit stock exhaust manifolds and most headers. If used with headers the front tube must turn down enough to allow access to the bolt hole in front of the second pipe.(See Side View) Use with 213L Alternator Bracket. Short water pump only.
Water Pump Identification/Technical Information
Compressor Identification/Technical Information
Belt Routing Technical Information
