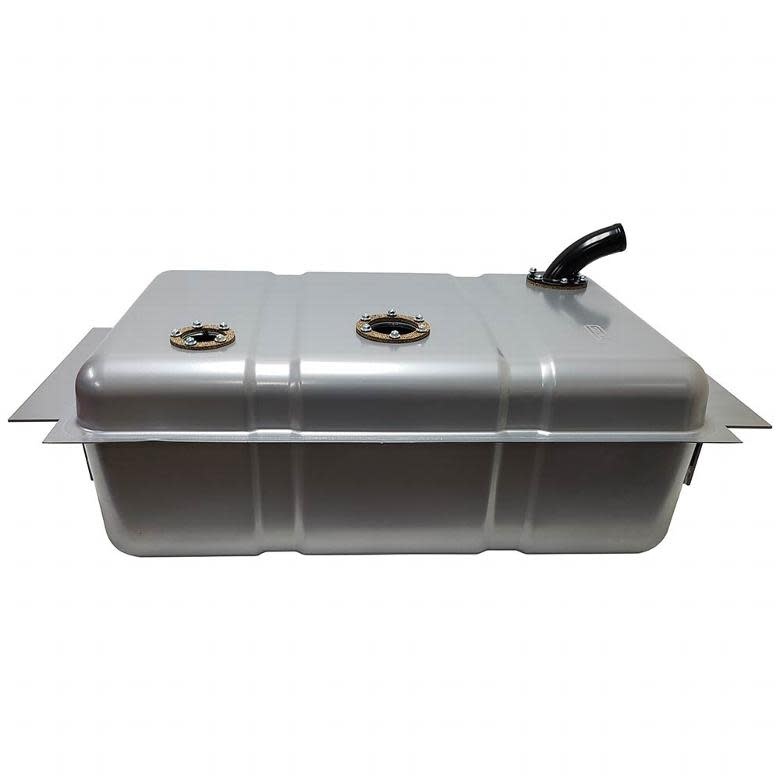

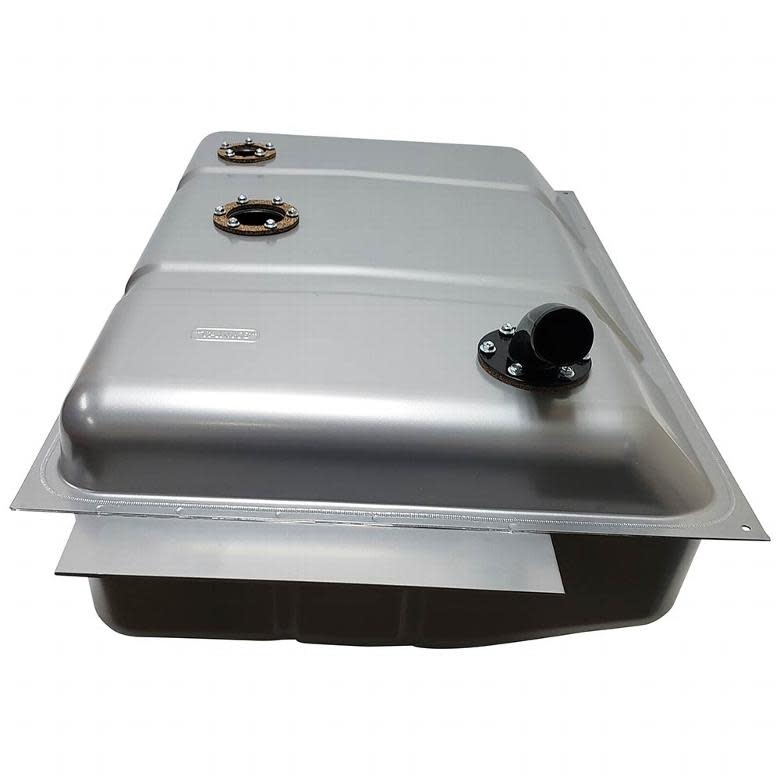

Tanks, Inc. - 69-72 Chevy Blazer Frame Mount EFI Gas Tank - TM6372-BZT

69-72 Chevy Blazer Frame Mount EFI Gas Tank - TM6372-BZT

This tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases.  It is up to the installer to drill and locate the mounting holes.  Mounting hardware not included.

• 1969-72 Chevy Blazer and GMC Jimmy Frame Mount Fuel Tank
• 1-1/2" Side Fill Filler Neck
• Die Stamped Galvanized Steel then Powder Coated Silver
• Fuel Injection Ready!
• Utilizes our GPA series fuel pumps, available in sizes from 109 to 450 liters per hour.
• Uses aftermarket 5-bolt senders.  Multiple Ohm ranges available to work with factory or aftermarket gauges.  If using tube sender length is 9".
• EFI style internal baffling with extra large 4.8 liter dual tube baffled fuel tray to prevent fuel pump starvation.
• If using on a carbureted application use part# PTA-G
• 18 Gallon Capacity
• Size is 32-1/4" x 20-1/2" x 9-3/4" (including the mounting flange)
• Size is 28" x 20-1/2" x 9-3/4"  (measured without the mounting flange)
