1949-52 Chevy Coated Steel Gas Tank Stock Depth, 16 Gallon - 51-CG

Read more...
$260.00 Excl. tax
Delivery time: Due to supply chain delays currently affecting the world, order fulfillment may be delayed. Call 620-792-2836 with any questions.
Brand:

1949-52 Chevy Coated Steel Gas Tank Stock Depth, 16 Gallon - 51-CG

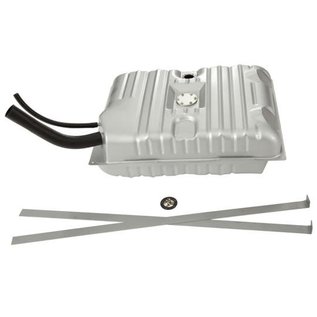

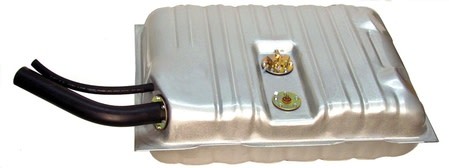

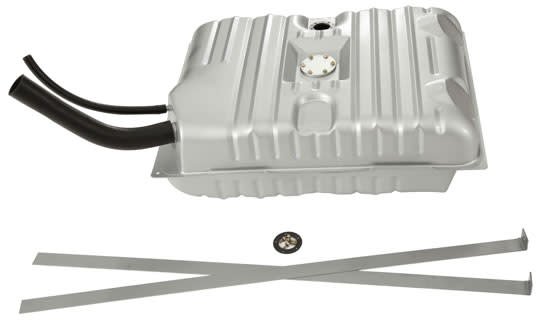

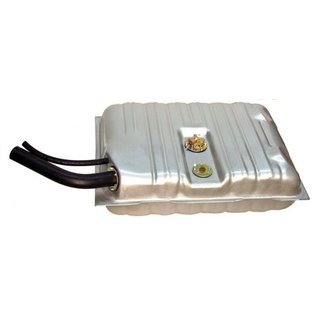

  • 51-CGX Pictured Above
  • Alloy Coated Steel to protect against corrosion
  • Alloy tanks are painted for additional protection
  • Includes mounting straps, gaskets and O-ring sealed screws
  • 51-CGX Tanks are 1" deeper for extra capacity
  • 51-CGX Size is: 29-1/4" x 21-1/4" x 9-1/4"  (18 Gallons)
  • 51-CG Size is: 29-1/4" x 21-1/4" x 8-1/4"  (16 Gallons)
  • 3/8" NPT Internal pickup tube in the stock location for ample fuel supply
  • 51-CGX tank has a fuel drain plug
  • Optional in-tank fuel pumps GPA series are available.
  • 1-1/2" ID Mandrel formed fuel-proof connecting hose for easy installation
  • Accepts All Popular 5-hole Senders
  • When using the 51-CG and 51-CGX tank with a GPA series pump a 3/8" NPT pipe plug will be needed to block off the internal fuel tank pickup tube.
