Tanks, Inc. - 1933-34 Ford Coated Steel Gas Tank - 34G

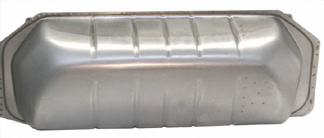

1933-34 Ford Alloy Coated Steel Fuel Tank - 34G

• For the 34 Victoria see part # 34G-PT
• Top Mounted Bolt In Pickup Tube and Vent (1/4" NPT Pickup & Return)
• Alloy Coated Steel Finish
• Fully Baffled to Minimize Sloshing
• Internal Reservoir Tray - Great for Carbs...Absolutely Necessary for Injection
• O-Ring Sealed Cap
• No Splashout Paintable Bolt-On Steel Neck
• 16 Gallon Capacity
• 1½" Deeper than Stock, 2 Extra Gallons
• Overall Size: 42-1/2" x 15-1/2" x 10"
• Accepts All 5-Hole Senders - VDO, SW, Classic, etc.
• Optional In-Tank Fuel Pumps Available
• 3/8" Course Thread Caged Mounting Nuts
• Leak Tested...Twice - For Safety

This tank has a bolt in pickup tube assembly for carbureted applications. It will accept our optional GPA-series Fuel Pump kits as seen in our Fuel Pump Section for EFI applications.
