Borgeson - Power steering conversion box for 1958-1964 Chevy full size cars - 800106

Home / Power steering conversion box for 1958-1964 Chevy full size cars - 800106

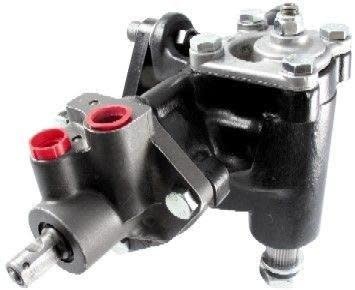

Borgeson power steering conversion box for 1958-1964 Chevy full size cars.

$386.51 Excl. tax

Delivery time: Typically ships within 7-10 business days

Brand:

Borgeson

Information

Borgeson power steering conversion box for 1958-1964 Chevy full size cars. Remanufactured Delphi 600 series power steering box with a 17MM Double-D input shaft and a 14:1 ratio. All Borgeson power steering boxes are assembled and tested in the USA from globally sourced components and have a 3 year warranty. WARRANTY

800106 INSTRUCTIONS

800106 SPECIFICATIONS:

Input Shaft: 17mm DD, 17mm Round shaft with two flat sides

Pitman Shaft: 1-1/8" GM with 32 Splines and 4 Master Splines

Pressure Port: M18 X 1.5 O-Ring or 11/16"-18 Flare, if using included flare inserts

Return Port: M16 X 1.5 O-Ring or 5/8"-18 Flare, if using included flare inserts

Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal

Flow Rate: 2.5-3.0 GPM Flow Rate Recommended
