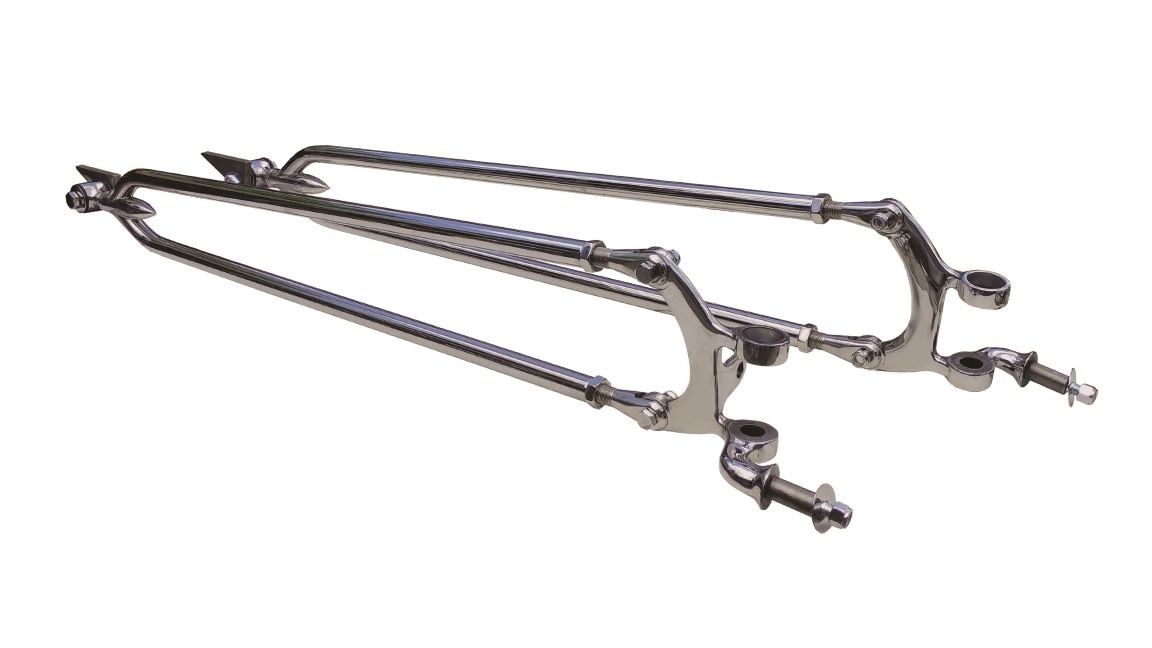

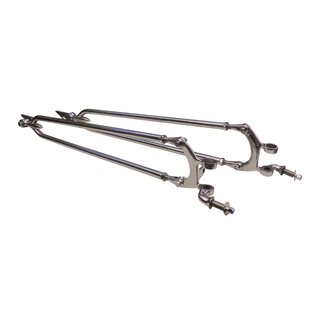

Sleek Design Ford Hairpin Radius Rod Kit Polished - 41000
Sleek Design Ford Hairpin Radius Rod Kit Polished - 41000
Designed For Use With 1932 - 1934 Ford
May Fit Other Applications
Center of Frame Mounting Bracket to Center of Perch Pin: 36 1/2" (+/- 1/2" Adjustment)
Batwing Mounting Holes Center to Center: 4 3/4"
For Perch Boss: 2 1/4"
The Sleek Design Hairpin Kit is fully constructed from stainless steel. The hairpins are made from 304 Stainless with an investment cast bullet center, and come beautifully TIG welded. The investment cast stainless steel batwings feature a built in lower shock mount and panhard mounting tab. The frame mounting brackets are easy to weld forged steel and can be welded at an angle to suit various axle widths. The kit comes complete with 5/8" - 18 stainless steel straight rod ends with long life urethane bushings and steel sleeves at the back, and 5/8" - 18 adjustable stainless steel clevises in the front. This kit uses chrome mounting hardware for maximum shear strength.
WHAT'S INCLUDED:
| 2 (TWO) | Polished Stainless Steel Bullet Style Hairpins | 2 (TWO) | Polished Stainless Steel Traditional Style Batwings |
| 2 (TWO) | Weld On Frame Mounting Brackets | 2 (TWO) | Polished Stainless Steel Adjustable Rod Ends |
| 1 (ONE) | Chrome Mounting Hardware Kit | 4 (FOUR) | Polished Stainless Steel Clevises |
NOTES & TIPS:
The Traditionalist batwings feature a built in lower shock mount. This allows them to be made with a flat bottom design, eliminating the need for a tapered washer or tapered perch nut during installation.
The traditionalist batwings have a built in panhard mounting tab with a 1/2" thru hole on the right batwing.
Remember to always use Anti-Seize on all stainless steel and aluminum parts.
