Tanks, Inc. - EFI Adjustable Bypass Regulator - BYP7910-KIT

Genuine Tanks Inc EFI Adjustable Bypass Regulator - BYP7910-KIT

• Adjustable pressure range of 35-90 PSI
• -10 ORB Inlet and Outlet
• -6 ORB Return
• 180 Gallons Per Hour
• 1/8" NPT Gauge Port
• Vacuum Boost Port with 1:1 Boost/Vacuum Rise Ratio
• Black Anodized

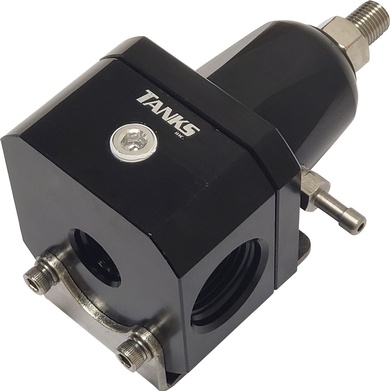

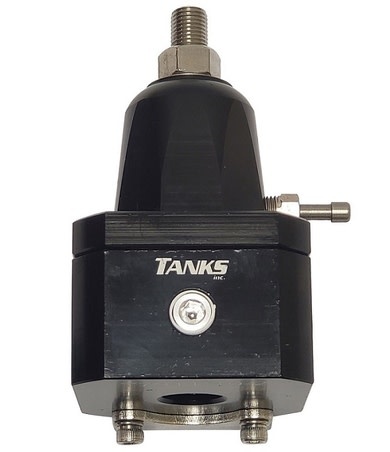

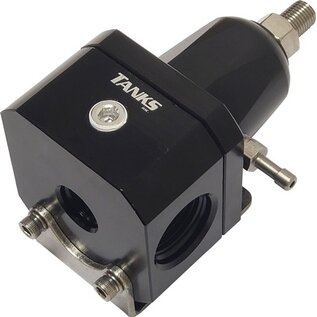

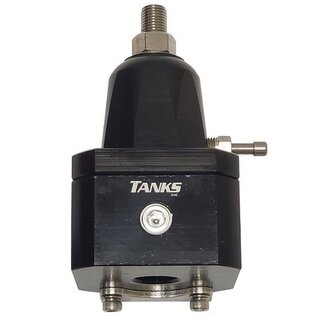

This billet aluminum fuel pressure regulator is machined from aircraft quality aluminum.  Featuring a fluorosilicone diaphragm designed to withstand high temperature protection and extended life.  Compatible with all grades of gasoline.

Click Here for a diagram on how to run fuel lines using this regulator.

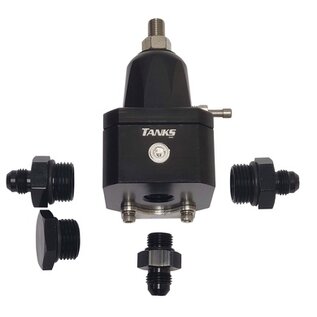

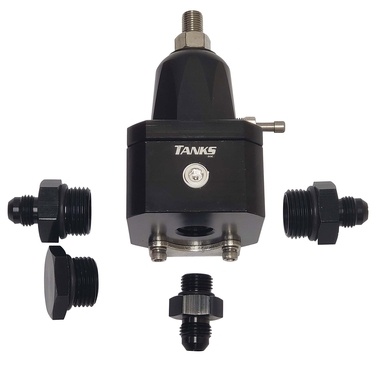

We have packaged this regulator along with the ORB to -6AN adapter fittings needed to run -6AN fuel line.  Also included in this kit is the plug so the regulator can be plumbed before or after the engine.

Kit Includes:

• BYP7910  EFI Bypass Regulator
• R660293  -10 ORB Plug
• R670840  -6 ORB to -6AN Adapter Fitting
• R670650 (x2)  -10 ORB to -6AN Adapter Fittings
