Roadster Supply Company - Buick Style Hot Rod Front Brakes with Concealed Disc Brakes

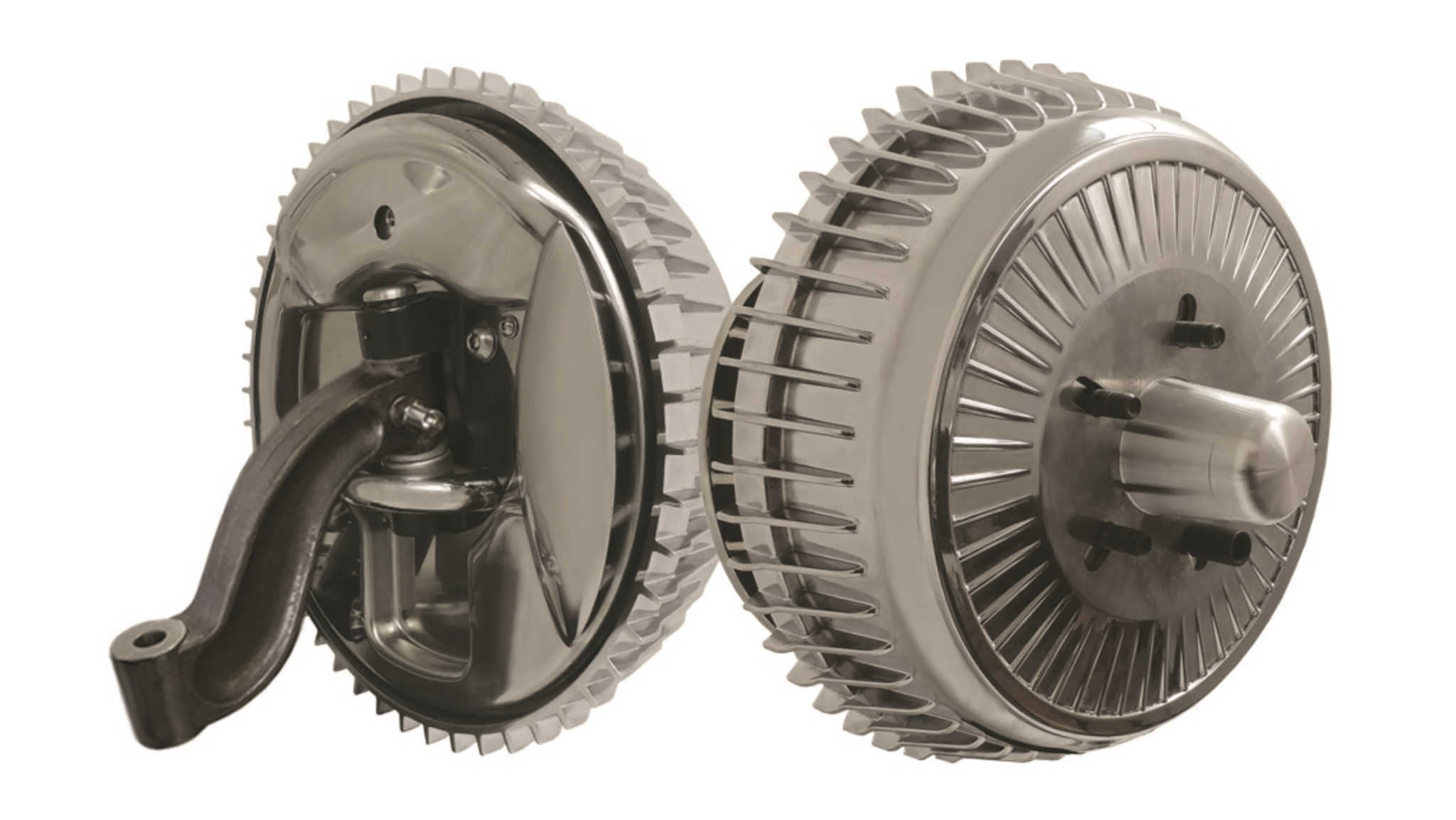

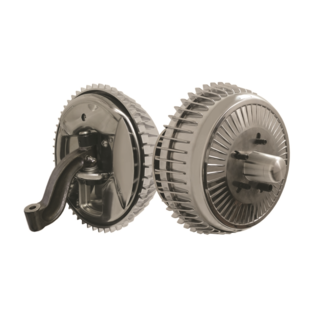

Buick Style Hot Rod Front Brakes with Concealed Disc Brakes - Select Polished or Plain Below

Read more...
$2,199.99 Excl. tax
Delivery time: Typically Ships In 1 Business Day
Article number: 00162031
Quantity: 3

Buick Style Hot Rod Front Brakes with Concealed Disc Brakes - Select Polished or Plain Above

Suits 5 X 4 1/2", 5 X 4 3/4", and 5 X 5 1/2" bolt patterns. Includes bolt on, vented rotors with CNC machined aluminum hubs and forged 4 piston calipers. Features CNC machined caliper brackets for '37 - '41 Ford round back spindles, investment cast stainless steel scoops, and die cast aluminum drums. Polished or unpolished finish. SOLD AS KIT

FEATURES:

Fits 37-41 Ford Round Back Style Spindles
For Bolt Pattern: 5 X 4 1/2", 5 X 4 3/4", 5 X 5 1/2"

The newest design of the Buick Style, Hot Rod Disc Brake Kit is a truly incredible assembly that has taken years of development and gone thru several stages of engineering to becoming the iconic kit it is today. From improved hub design, to 1 inch narrowed track width, and even top mount bleeder screws and re-engineered drums with tighter radii that fit more wheels then ever before, the Buck Style Hot Rod Brakes are the perfect choice for any hot rod!

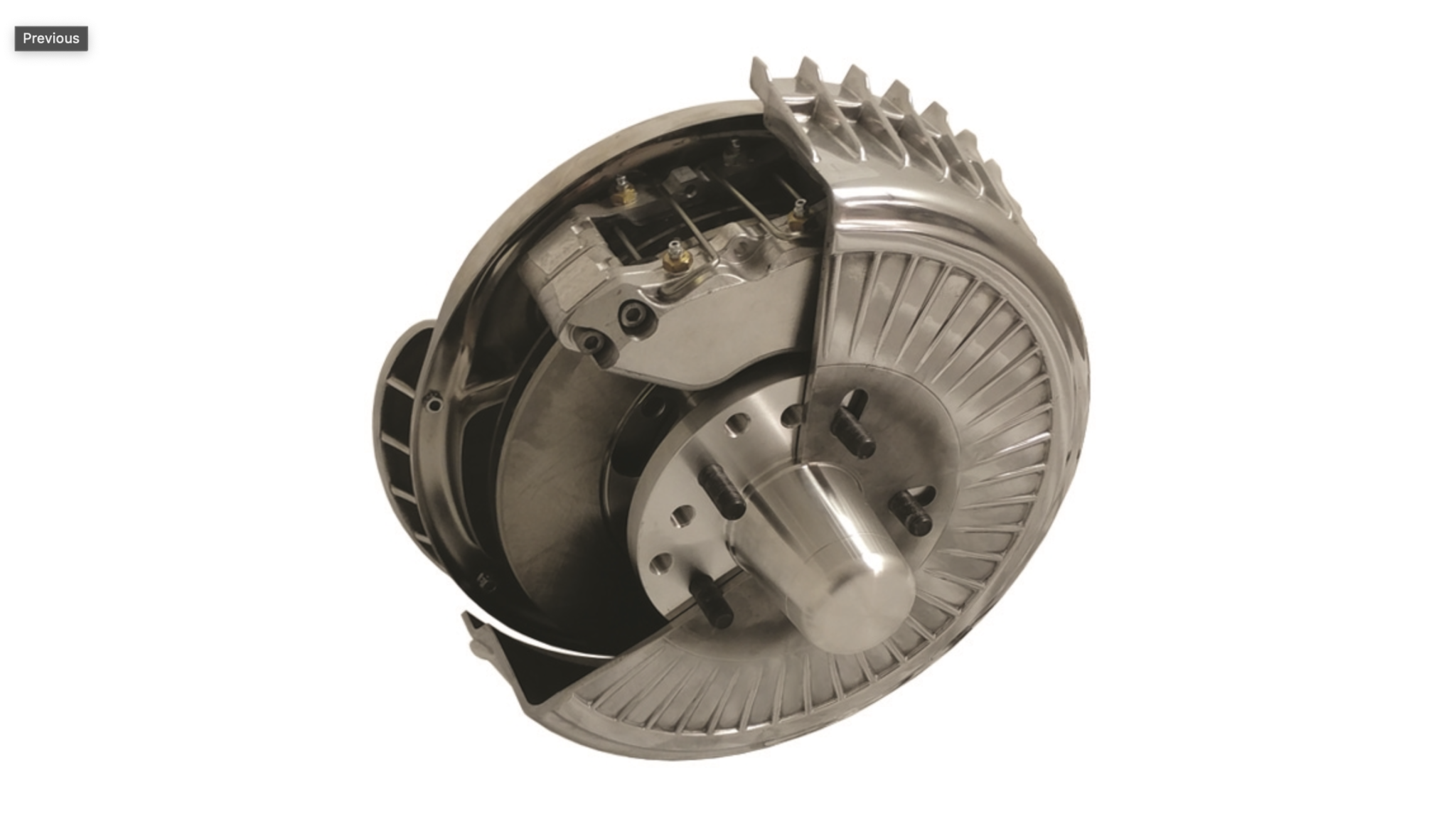

Featuring die cast aluminum drum covers with a tight radii to clear a wide range of wheels, investment cast and CNC machined stainless steel scoops, and deep drawn stamped stainless steel backing plates. Hidden inside is a 4 piston, forged aluminum caliper with top mount bleeder screws that simplify brake jobs over previous versions. Caliper brackets are manufactured from 6061 aluminum plate with pressed in steel inserts for added assurance when mounting your caliper. Includes bolt on 10 3/4" X 0.810" rotors and CNC machined, forged aluminum, tri-drilled hubs with screw on dust caps. Narrows track width 1 inch over previous versions, and no bearing adapter is required. This kit is machined for, and includes bolts for blind hole steering arms. If using thru hole style arms, spacers will be required to clear backing plate. Accepts 1/8" NPT brake line fittings. All bearings, seals, and spindle nuts included. Spindles, steering arms, king pin kit, and brake fittings are NOT included in this kit, they are shown for reference only. This kit is available in a plain or polished finish.

WHAT'S INCLUDED:

2 (TWO) Vented 10.750" X 0.810 Rotors 2 (TWO) Die Cast Aluminum Drum Covers
2 (TWO) Forged Aluminum 4 Piston Calipers With Pads 2 (TWO)  Deep Drawn Stamped S/S Backing Plates
2 (TWO) CNC Machined Caliper Brackets 1 (ONE) Bearing and Seal Kit
2 (TWO) Forged Aluminum Hubs With Races Installed 1 (ONE) Complete Mounting Bolt Kit
2 (TWO) Stainless Steel Scoops 1 (ONE) Spindle Nut Kit


NOTES & TIPS:

Remember to always use Anti-Seize on all stainless steel and aluminum parts.

Spindles, steering arms, king pins, etc... are not included in this kit, they are shown for reference only.

Some original style 5 X 5 1/2" wheels require a plate that mimics original drums to make the wheel seat correctly.

This kit is machined specifically for blind hole steering arms. If using thru hole type steering arms, spacers may be required to clear backing plate.
