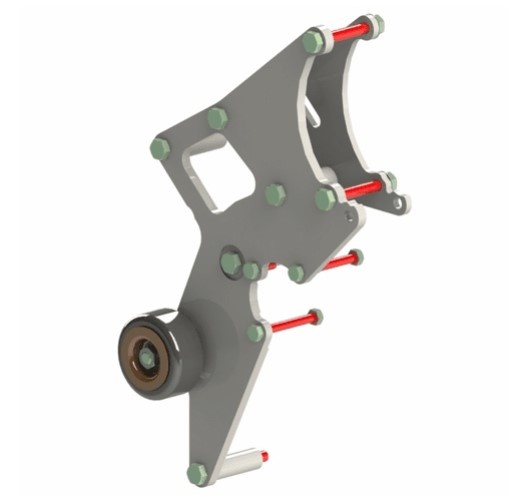

Alt/PS Brackets - Wide Mount for Truck/LS3 Camaro Balancer - Type II - K10168
Wide-Mount Alternator / Power Steering bracket for LS engines with Truck/SUV (1999-2013) and Camaro (2010-15) crank pulley and water pump spacing.
This bracket mimics the factory OEM Corvette Alt/PS configuration with a couple of swap friendly improvements.
Properly spaced to line up with your Truck/Camaro (10-15) balancer.
Dual bolt pattern for Alternator to fit:
- Corvette Alternators (1997-2013)
- Truck Alternators (1999-2013)
- Camaro/GTO Alternators (1998-2002)
- Camaro Alternators (2010-15)
- DOES NOT fit Cadillac CTS-V / LSA Alternators
Power steering pump tucked and reclocked
- Pump moved up and in for added frame / steering clearance
- Pump reclocked to give ease of access to pressure port
Multiple power steering pump options
- Kwik Performance pump with 5.5” pulley: 10206-06
- Corvette pump with 6.7” pulley
- Camaro/GTO (98-02) pump with 6” pulley*
- *Pulley must be pulled off shaft +/- 1/8” to line up properly
- Camaro (2010-15) pump with 6” pulley*
- *Call for Technical Advice
Mounts Corvette OEM PS remote reservoir in Corvette OEM location
Maintains Corvette level of PS Pump belt wrap, approx. 135 degrees
Download K10168 Installation Instructions (Adobe pdf File)What's included:
- Bracket made of 6061-T6 aircraft grade aluminum (brushed satin finish)
- All necessary spacers and zinc coated fasteners
- Idler Pulley
What else is required to complete the installation:
- GM LS Gen 3 or 4 engine with Truck (1999-2013) or Camaro (2010-15) harmonic balancer and water pump
- Six-rib belt, See our included installation instructions for suggested lengths and Gates part numbers.
- Alternator rating and PS pulley diameters can change suggested lengths.
- Always check tensioner marks for correct fitment.
Why you should use a Kwik Performance product:
- Properly engineered using OEM reference drawings
- Computer tested with FEA (finite element analysis) software
- Field tested on shop test engines and in real-world test vehicles
- Backed by a no-hassle warranty and return policy
- Tech support before, during and after the sale
What passenger side bracket works with this Alt/PS bracket?
Teams up perfectly with our Wide Mount AC bracket K10472
Works with your OEM tensioner (mounted on water pump)
- Truck (1999-2013)
- Camaro (2010-15)
How to determine which Chevy LS balancer you have
