Kwik Performance - AC Bracket - Low Mount for Corvette Balancer - SD7B10 Compressor - K10355

AC Bracket - Low Mount for Corvette Balancer - SD7B10 Compressor - K10355

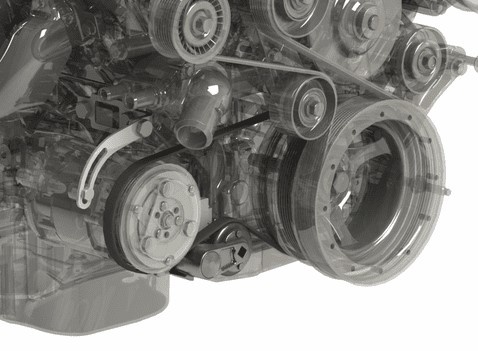

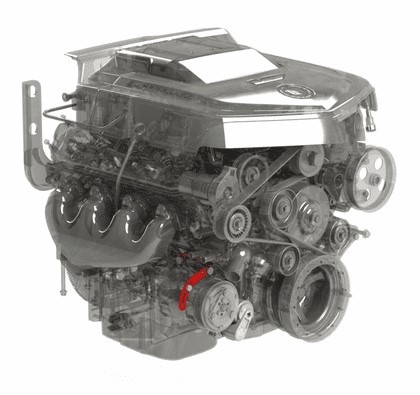

Low-Mount AC bracket for LS engines with Corvette (1997-2013) crank pulley and water pump spacing.*

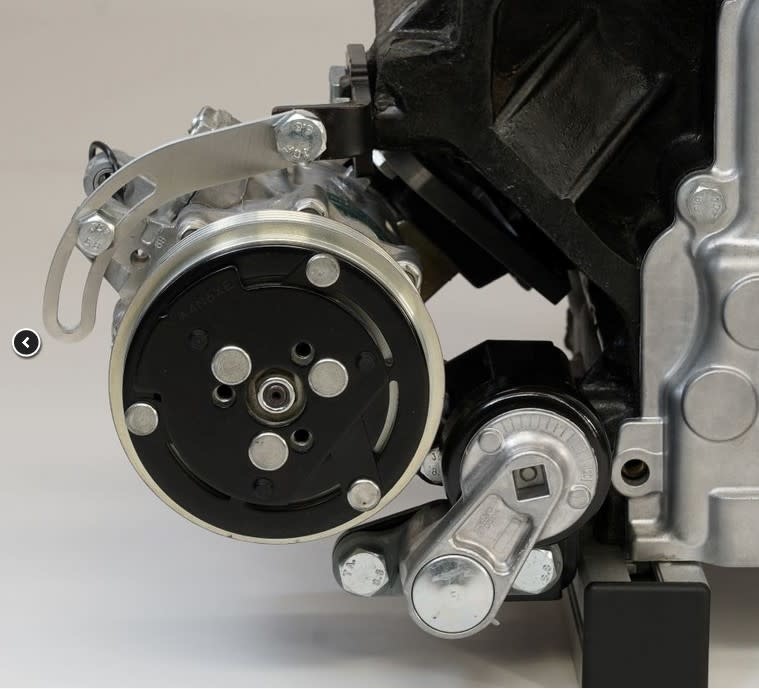

This bracket mounts the “mini” Sanden SD7B10 (7176) compressor in the stock AC location.

The “mini” compressor is shorter than the stock compressor.
This allows clearance for most aftermarket motor mount adaptors that locate the motor in “stock” position.
Our overall width is just 12.5” from the center of the engine to the outer edge of the compressor.
This also has an advantage over the stock compressor for frame / crossmember clearance.
May not work with Holley Gen 1 or 2 Camaro engine mounts or slotted, adjustable style mounts.

This is a great solution for LSA/Supercharged motors

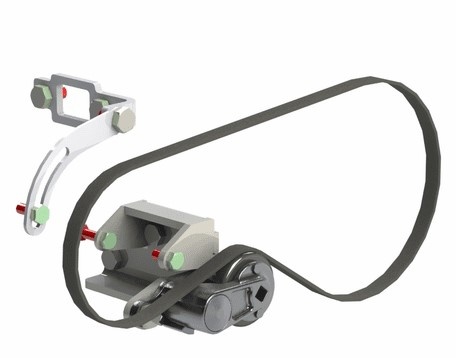

What's included:

• Bracket made of welded steel and powder coated
• All zinc coated fasteners included
• Automatic spring-style belt tensioner
• Belt

What else is required to complete the installation:

• GM LS Gen 3 or 4 engine with Corvette (1997-2013) harmonic balancer and water pump (or equivalent)
• Sanden 7176 “mini” AC compressor (also known as SD7B10)

*Other engines with Corvette belt spacing include:

• Most Chevrolet “crate” engines
• Cadillac CTS-V (2004-07)
• Cadillac CTS-V (2009-15 LSA)
• Camaro ZL-1 (2012-15 LSA)
• Pontiac G8 (2009)
• Chevrolet SS (2013-17)
• Caprice PPV (2009-17)
• Holden Commodore (2009-17)

Why you should use a Kwik Performance product:

• Properly engineered using OEM reference drawings
• Computer tested with FEA (finite element analysis) software
• Field tested on shop test engines and in real-world test vehicles
• Backed by a no-hassle warranty and return policy
• Tech support before, during and after the sale

Why use a genuine Sanden AC compressor?

• Many OEM AC compressors are a “variable displacement” design and don’t work well with older OEM or aftermarket AC systems
• Sanden is the aftermarket standard for AC compressors, recommended by most major AC manufacturers

What driver’s side bracket works with this AC bracket?

Teams up perfectly with our alternator/power-steering bracket K10166

Works with your OEM alternator/power-steering bracket

• Corvette (1999-2013)
• Cadillac CTS-V (2004-07)
• Cadillac CTS-V (2009-15 LSA)
• Camaro ZL-1 (2012-15 LSA)
• Pontiac G8 (2009)
• Chevrolet SS (2013-17)
• Caprice PPV (2009-17)
• Holden Commodore (2009-17)

How to determine which Chevy LS balancer you have
