| Article number: |
005094 |
| Quantity In Stock: |
1 |

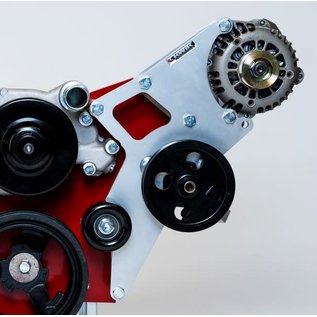

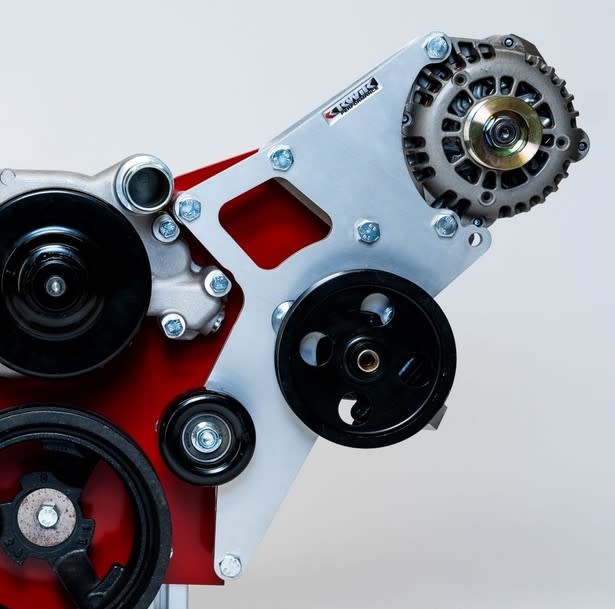

Alt/PS Brackets - Wide Mount for Corvette Balancer - Type II - K10166
Wide-Mount Alternator / Power Steering bracket for LS engines with Corvette (1997-2013) crank pulley and water pump spacing.*
This bracket mimics the factory OEM Corvette Alt/PS configuration with a couple of swap friendly improvements.
Dual bolt pattern for Alternator to fit:
- Corvette Alternators (1997-2013)
- Truck Alternators (1999-2013)
- Camaro/GTO Alternators (1998-2002)
- Camaro Alternators (2010-15)
- DOES NOT fit Cadillac CTS-V / LSA Alternators
Power steering pump tucked and reclocked
- Pump moved up and in for added frame / steering clearance
- Pump reclocked to give ease of access to pressure port
Multiple power steering pump options
- Kwik Performance pump with 5.5” pulley: 10206-06
- Corvette pump with 6.7” pulley
- Camaro/GTO (98-02) pump with 6” pulley*
- *Pulley must be pulled off shaft +/- 1/8” to line up properly
- Camaro (2010-15) pump with 6” pulley*
- *Call for Technical Advice
Mounts Factory OEM PS remote reservoir in Factory OEM location<
Maintains Corvette level of PS Pump belt wrap, approx. 135 degrees What's included:

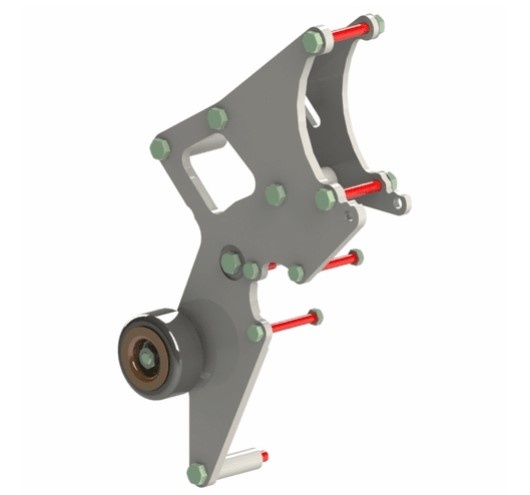

- Bracket made of 6061-T6 aircraft grade aluminum (brushed satin finish)
- All necessary spacers and zinc coated fasteners
- Idler Pulley
What else is required to complete the installation:
- GM LS Gen 3 or 4 engine with Corvette (1997-2013) harmonic balancer and water pump (or equivalent)*
- Six-rib belt, See our included installation instructions for suggested lengths and Gates part numbers.
- Alternator rating and PS pulley diameters can change suggested lengths.
- Always check tensioner marks for correct fitment.
*Other engines with Corvette belt spacing include:
- Most Chevrolet “crate” engines
- Cadillac CTS-V (2006-07, non-supercharged)
- Pontiac G8 (2009)
- Chevrolet SS (2013-17)
- Caprice PPV (2009-17)
- Holden Commodore (2009-17)
Why you should use a Kwik Performance product:
- Properly engineered using OEM reference drawings
- Computer tested with FEA (finite element analysis) software
- Field tested on shop test engines and in real-world test vehicles
- Backed by a no-hassle warranty and return policy
- Tech support before, during and after the sale
What passenger side bracket works with this Alt/PS bracket?
Teams up perfectly with our Wide Mount AC bracket K10470
Works with your OEM tensioner (mounted on water pump)
- Corvette (1999-2013)
- Cadillac CTS-V (2006-07, non-supercharged)
- Pontiac G8 (2009)
- Chevrolet SS (2013-17)
- Caprice PPV (2009-17)
- Holden Commodore (2009-17)
How to determine which Chevy LS balancer you have
