Vintage Air - 68-83 FJ40 Land Cruiser Gen IV SureFit™ Evaporator Kit W/ Ultra-High-Performance Blower - 751201

The Gen IV is Vintage Air's most powerful and intelligent climate control system. The Gen IV uses an exclusive fully electronic microprocessor control system that eliminates cables or vacuum connections. Separate high-capacity copper parallel-flow heat coil and aluminum plate-and fin-cooling coils provide outstanding performance and instant temperature adjustments.

Additional features include variable blower speed and dash/floor/defrost blend.

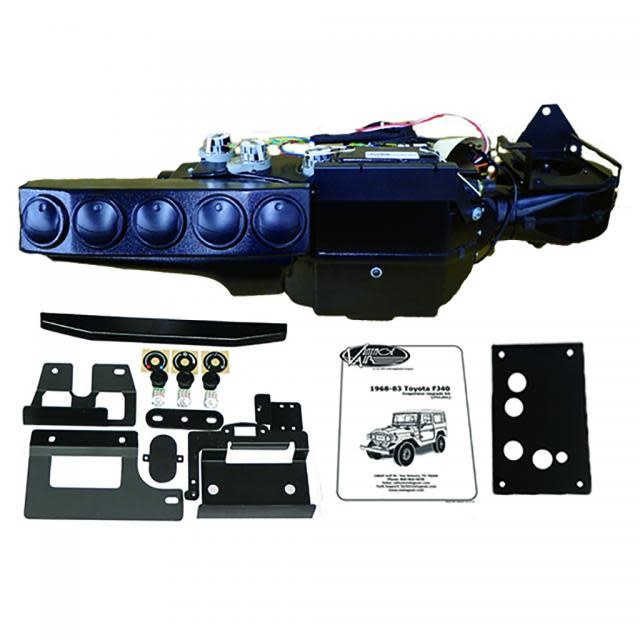

**Evaporator kit includes the evaporator unit and mounting brackets louvers (where required) duct hose wiring harness new electronic rotary controls hardware and installation instructions.

• Fly-By-Wire fully electronic servo motor controls with no cables or capillary tube to route
• Infinite just-right-temperature air blending
• Infinite blower fan speed adjustment
• High-volume dehumidified defrost mode
• Separate high-capacity aluminum plate & fin cooling coil
• Copper/brass CuproBraze™ parallel-flow heater coil
• Mounts behind the dash
• New in-dash rotary controls
• Flat steel firewall cover panel

This kit features an ultra-high-performance blower.

NOTES:
1. Glove box space will be reduced.
2. Kit is for U.S.-spec FJ40 Land Cruisers and may not fit some international models.

***We highly recommend that you upgrade to a 100Amp+GM alternator with the Ultra High Performance Blower Kit as it draws close to 45Amps at full speed and the factory alternator is only rated at 50Amps.

 DOWNLOAD INSTALLATION INSTRUCTIONS
