Vintage Air - 1968-83 Toyota FJ40 Land Cruiser Compressor/GM Alternator Bracket Kit - 158209

Genuine Vintage Air Steel-eez 1968-83 FJ40 Land Cruiser A/C Compressor/GM Alternator Bracket Kit - 158209

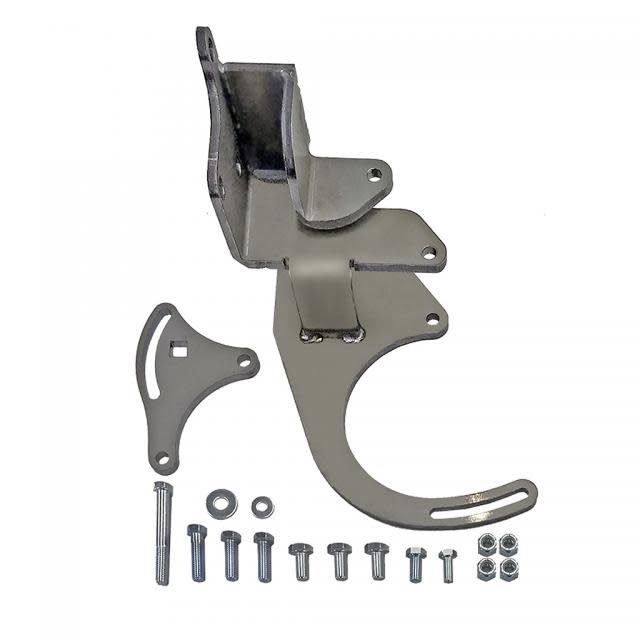

With steel plate brackets to mount the compressor and alternator this kit is a simple and economical solution to air condition your FJ40 Land Cruiser with ease.

1. This bracket kit requires a harmonic balancer with (2) wide grooves. An add-on kit for single-groove harmonic balancers (Part # 732104) is available through Vintage Air.
2. This bracket kit requires a water pump pulley with (2) wide grooves. A (2) wide-groove water pump pulley for long-nose water pumps (Part # 732109) is available through Vintage Air.
3. Vintage Air’s FJ40 SureFit™ system requires a minimum 50-amp alternator. Vintage Air recommends upgrading to a 100-amp 10si or 12si alternator. While a 50-amp alternator will work with the SureFit™ system, additional accessories will require additional amperage. This bracket kit fits the 100-amp 12si alternator with clocking positions of 12:00 and 6:00. Evaluating system requirements and rewiring for higher amperage alternators (using 8 AWG wire) is the sole responsibility of the customer.
4. Vintage Air offers a compressor/alternator bracket kit that fits the OEM alternator (Part # 158217).

Instructions:  Installation Instructions

Regulatory:  WARNING: California proposition 65
