Dakota Digital 65-66 Ford Custom Cab Pickup VHX Instruments - Select Color Options Above
The 1965-66 Custom Cab F-Series trucks used a unique dash layout, straying from the large round opening found of the earlier models. The VHX-65F-PU fits directly onto the rear side of the OEM or Reproduction gauge bezel for a quick and painless installation, while looking right at home in the coveted Custom Cab dash.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

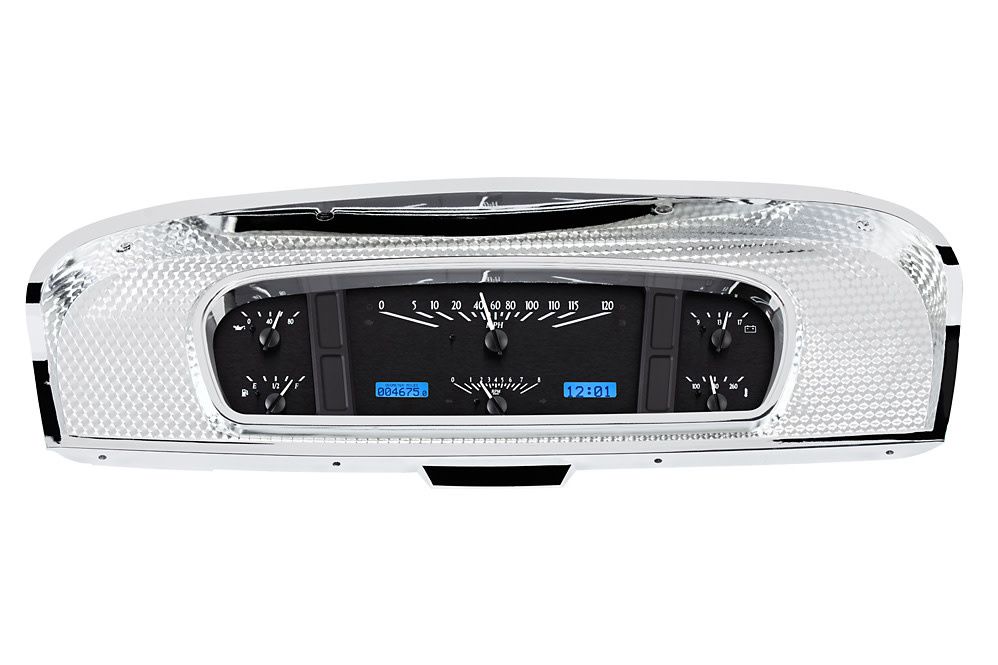

*Bezel/ Trim/ Facia not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
| Analog Gauges |
| Speedometer |
| ·0 -120 MPH (optional metric version 0- 195 kmh) |
| Tachometer |
| ·0- 8,000 RPM |
| Oil Pressure |
| ·0- 80 psi |
| Water Temperature |
| ·100- 260ºF (optional metric version 40- 120ºC) |
| Fuel Level |
| ·E, 1/4, 1/2, 3/4, F |
| Voltmeter |
| ·9- 17 VDC |
| Lighting |

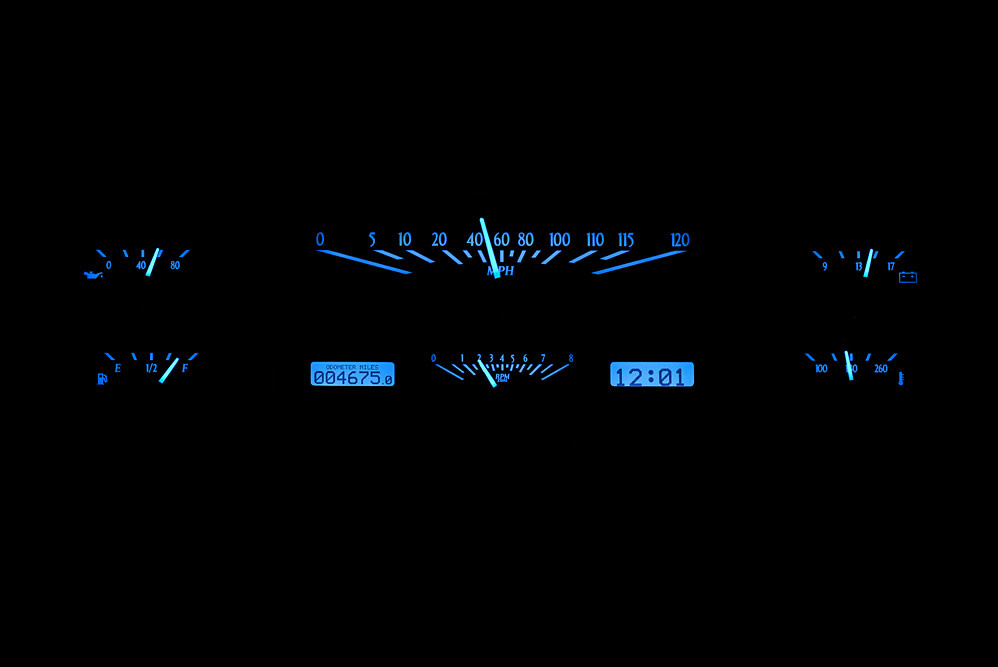

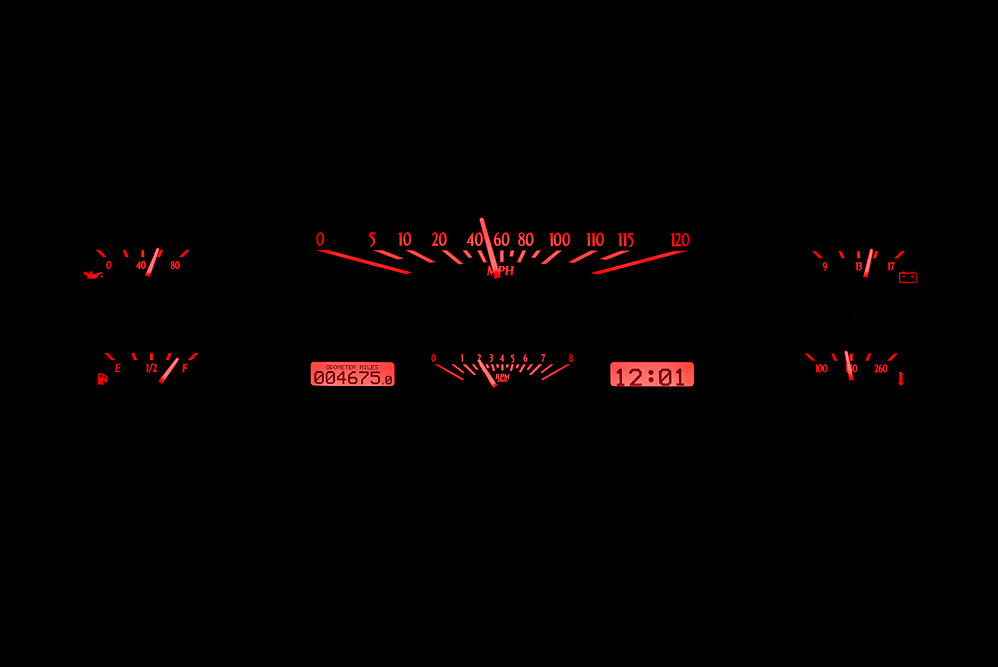

| ·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face. |
|
Digital Message Centers |
| Standard Displays |
| ·Odometer (One time user settable, Million Mile) |
| ·Dual (A/B) Trip Meter (0- 9,999.9) |
| ·Clock (12 hour) |
| Performance Meters |
| ·0- 60 MPH Timer (0- 100 kmh) |
| ·1/4 mile time |
| ·1/4 mile end speed (trap speed) |
| ·High speed recall |
| ·High RPM recall |
| Gauges |
| ·Speedometer (0- 255 MPH/kmh) |
| ·Tachometer (0- 9,900 RPM) |
| ·Oil Pressure (0-100 psi displayed in 1 psi increments) |
| ·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments) |
| ·Voltmeter (9- 17 VDC) |
| ·Fuel Level (0-99% full) |
| Lighting |
| ·Auto-contrasting LCD display for optimal view in the brightest of sunlight. |
| ·LED backlit at night to match/ complete the look at night. |
|
Built-in Indicators |
| Indicators |
| ·Turn Signals (Left/ Right) |
| ·High Beam |
| ·Check Engine |
| ·Parking Brake |
| ·Cruise Control (On/ On & Engaged when vehicle is equipped) |
| ·Gear Position (Optional GSS-3000 sensor required) |
| ·4 x 4 (When vehicle is equipped) |
| ·Wait to Start (When vehicle is equipped) |
**Not all OEM indicator lamp functions will be replaced.
|

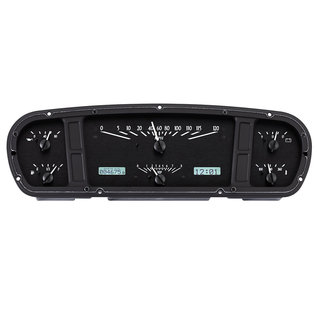

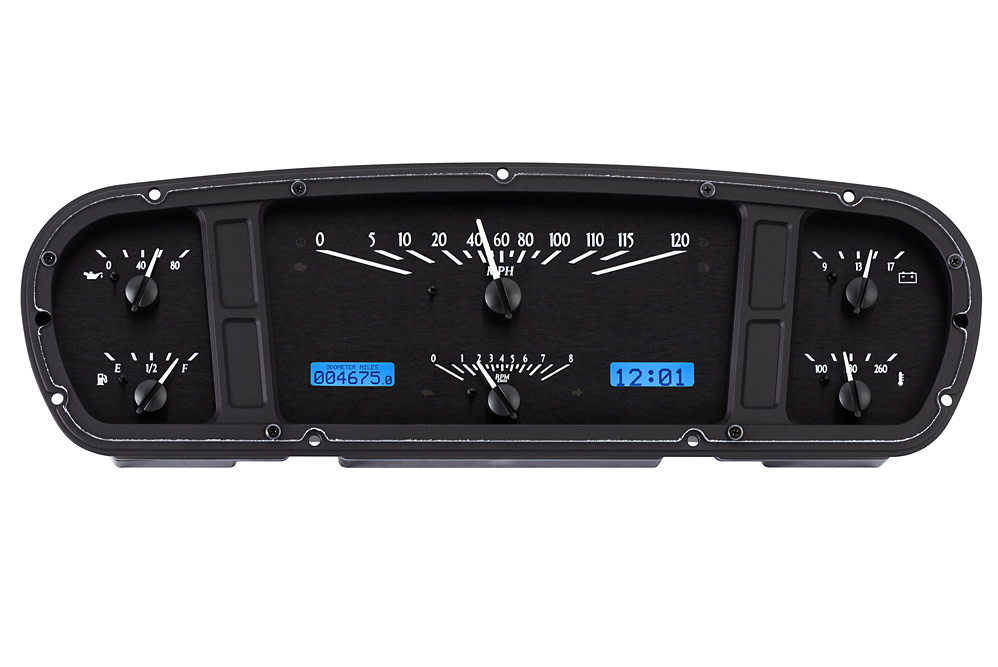

Black Background - Blue lighting - VHX-65F-PU-K-B
Black Background - Red lighting - VHX-65F-PU-K-R

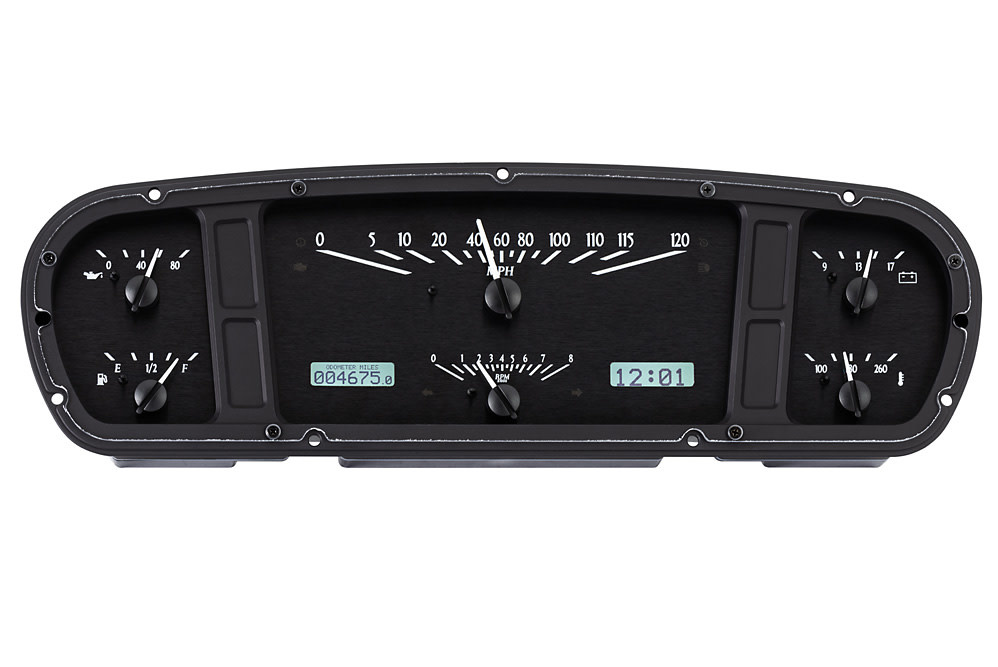

Black Background - White lighting - VHX-65F-PU-K-W

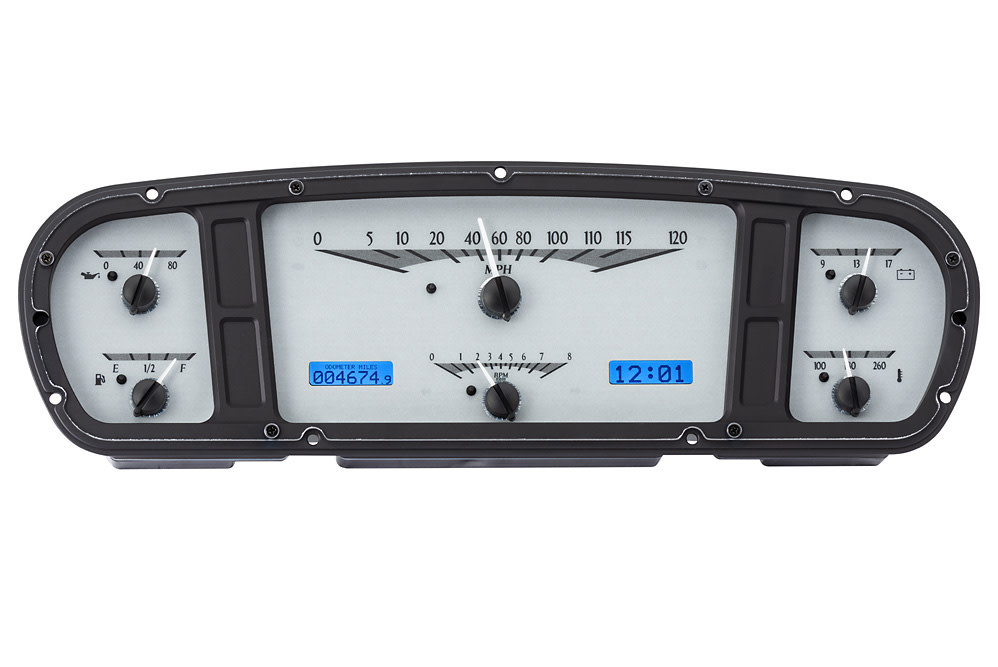

Silver background - Blue lighting - VHX-65F-PU-S-B
Silver Background - Red lighting - VHX-65F-PU-S-R
Silver Background - White lighting - VHX-65F-PU-S-W
