Dakota Digital - 63-72 Jeep Wagoneer VHX Instruments

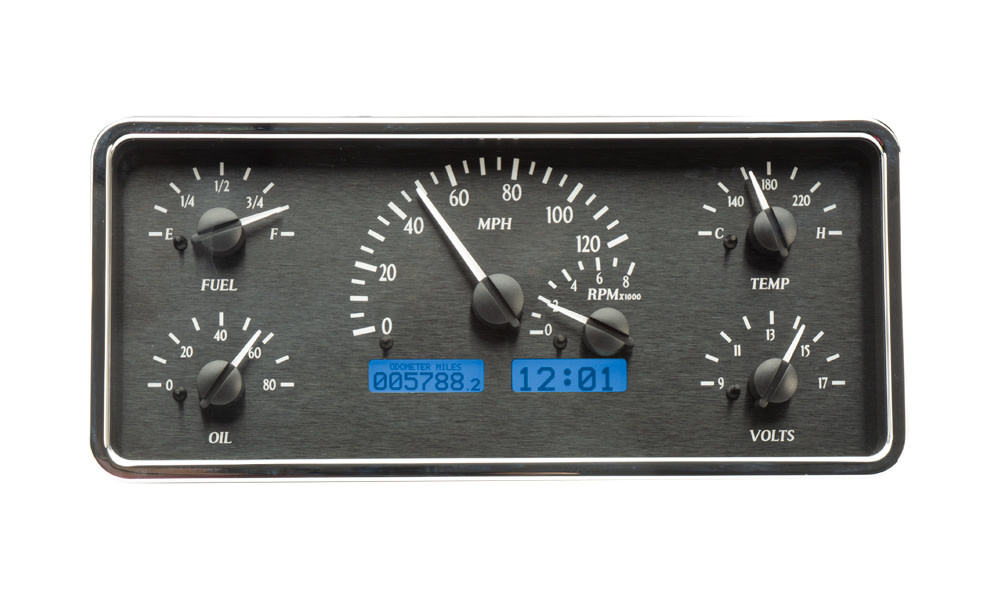

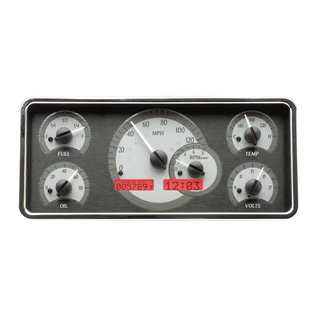

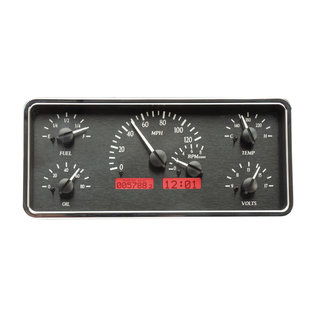

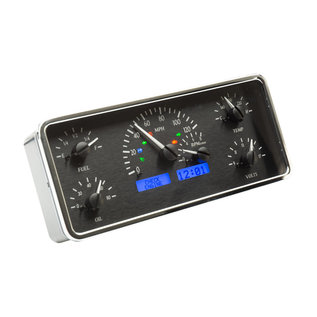

63-72 Jeep Wagoneer VHX Instruments - Select Color Options Below

Read more...
$850.25 Excl. tax
Delivery time: Due to supply chain delays currently affecting the world, order fulfillment may be delayed. Call 620-792-2836 with any questions.
+ -
Add to cart

63-72 Jeep Wagoneer VHX Instruments - Select Color Options Above

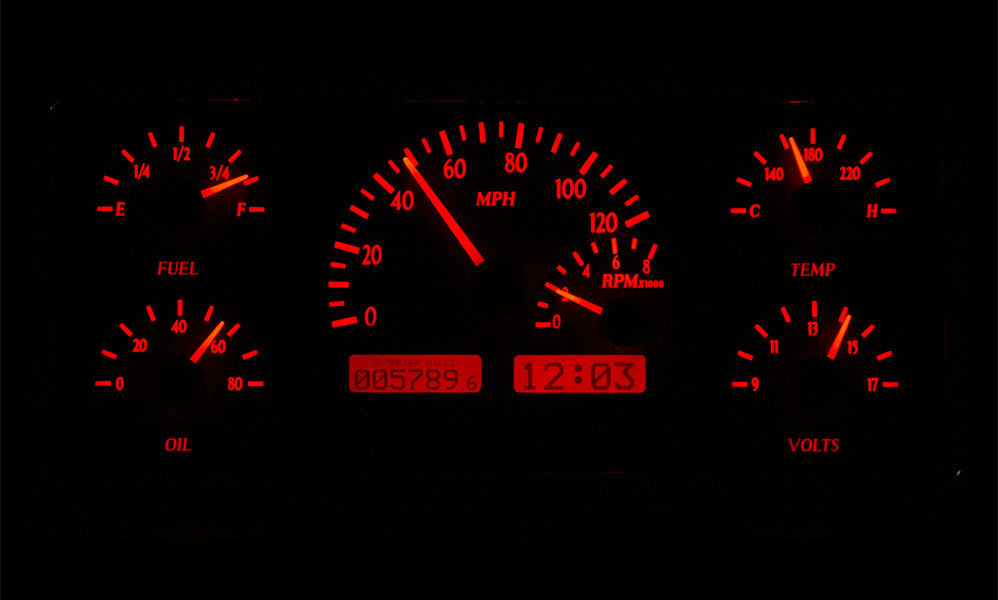

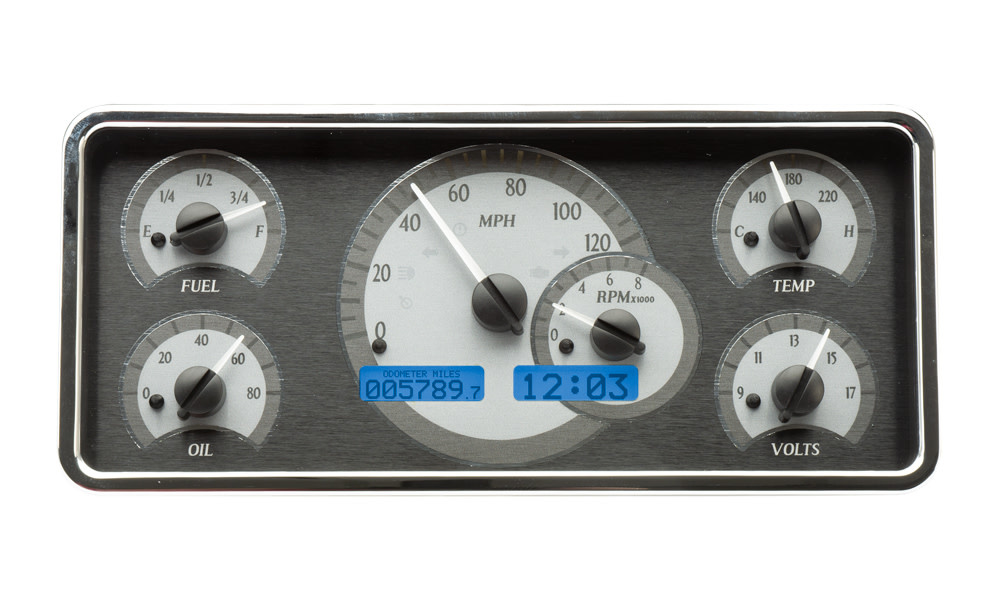

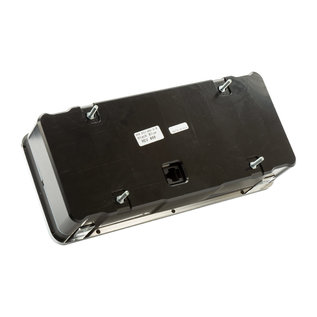

The original model sets the bar, often becoming the most desirable version of any recurring vehicle badge.  The 1963-72 Full Size Jeep is no exception, either in the truck or the wagon format, the earlier pioneer of today’s SUV.  This cult-classic is ripe for the upgrades of today, with more power, reliability and creature comforts that we’ve all come to expect, all while keeping the nostalgic feel of what brought you there in the first place. The VHX-63J-WAG is a purpose-built solution, sized just to match the rectangular instrument cluster space.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Fitment:
1963- 72 Jeep Wagoneer
1963- 72 J-Trucks
1967- 72 Jeepster Commando

VHX-63J-WAG fits original stock dash/ bezel/ fascia/ trim, not included.

Lighting Options

Analog Gauges

Speedometer
·0 -120 MPH (optional metric version 0- 195 kmh)

Tachometer
·0- 8,000 RPM

Oil Pressure
·0- 80 psi

Water Temperature
·100- 260ºF (optional metric version 40- 120ºC)

Fuel Level
·E, 1/4, 1/2, 3/4, F

Voltmeter
·9- 17 VDC

Lighting

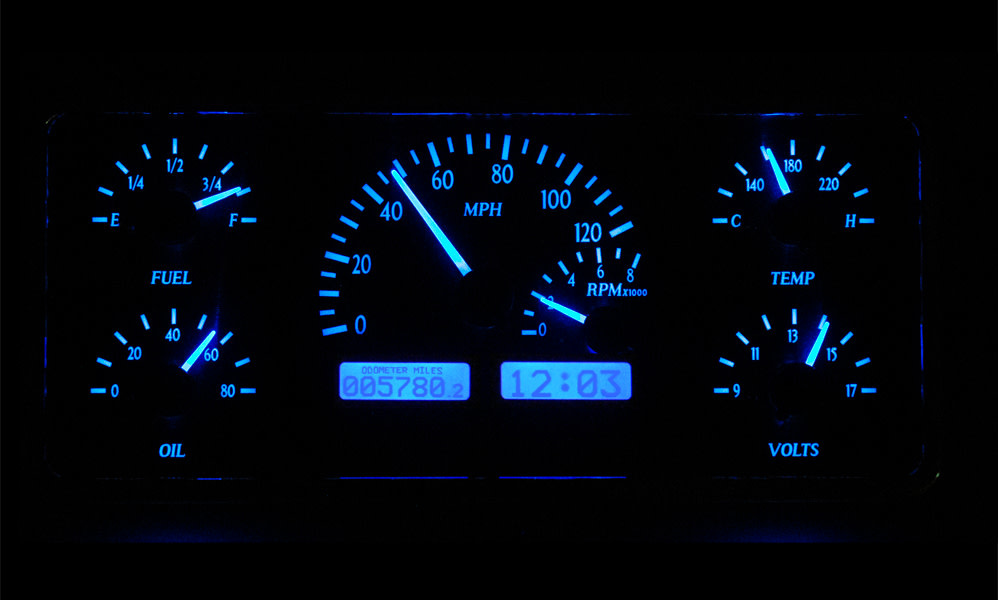

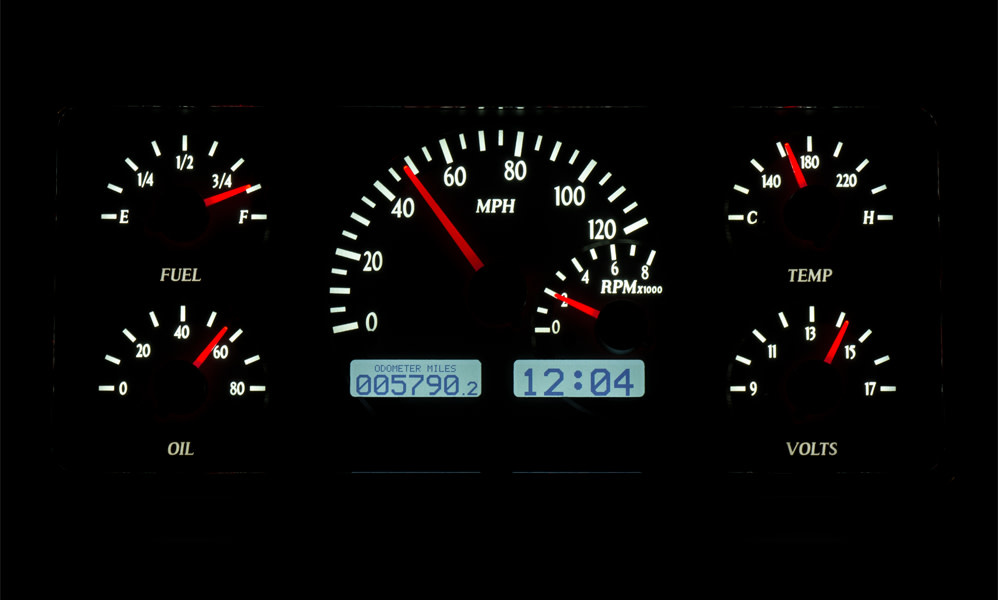

·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers


Standard Displays
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)

Performance Meters
·0- 60 MPH Timer (0- 100 kmh)
·1/4 mile time
·1/4 mile end speed (trap speed)
·High speed recall
·High RPM recall

Gauges
·Speedometer (0- 255 MPH/kmh)
·Tachometer (0- 9,900 RPM)
·Oil Pressure (0-100 psi displayed in 1 psi increments)
·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
·Voltmeter (9- 17 VDC)
·Fuel Level (0-99% full)

Lighting
·Auto-contrasting LCD display for optimal view in the brightest of sunlight.
·LED backlit at night to match/ complete the look at night.

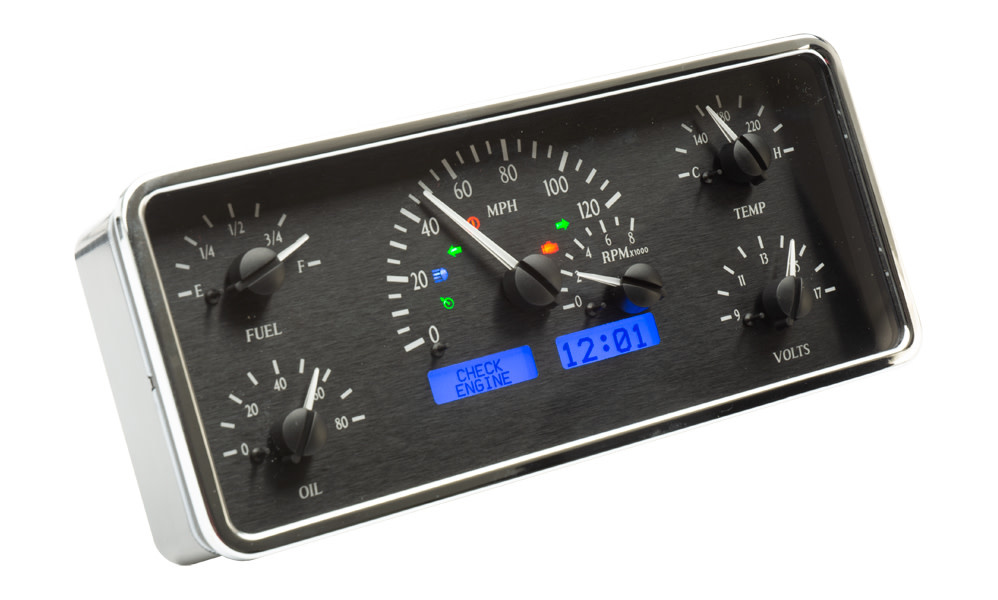

Built-in Indicators

Indicators
·Turn Signals (Left/ Right)
·High Beam
·Check Engine
·Parking Brake
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-3000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
 **Not all OEM indicator lamp functions will be replaced.
  • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Included Sensors



sVHX Specs GM (bottom)

Water Temperature
·1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure
·1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/ Generator
·Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)

Bushings
·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Control Box Dimensions
5.5" x 3.5"x 1"

Calibration


Pushbutton

·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.





Technical Support



Color Options



Red

White

Blue









Silver Background

VHX-63J-WAG-S-R

VHX-63J-WAG-S-W

VHX-63J-WAG-S-B

Black Background

VHX-63J-WAG-K-R

VHX-63J-WAG-K-W

VHX-63J-WAG-K-B
