Dakota Digital 33-34 Ford VHX Instruments - Select Color Options Above

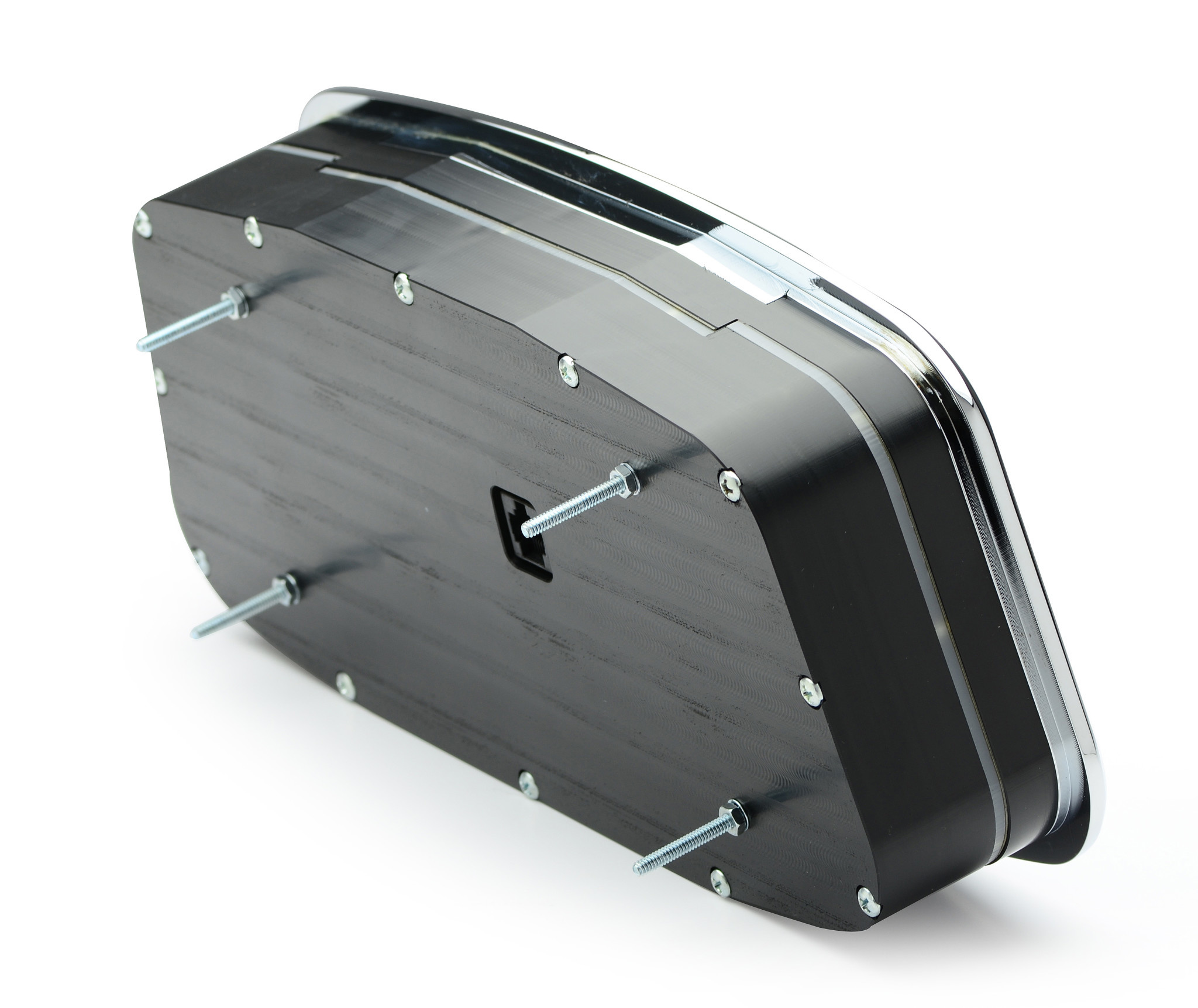

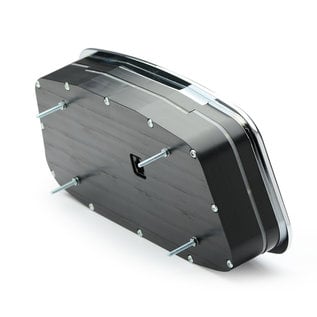

The new VHX Systems fit directly into the stock dash recess of a 1933- 1934 Ford Car, including a show-chrome machined aluminum instrument housing.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at the facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Dimensions:
Overall:  11.665" W x 5.785" H

 *Includes new chrome bezel shown

Lighting Options



Analog Gauges

Speedometer
·0 -120 MPH (optional metric version 0- 195 kmh)

Tachometer
·0- 8,000 RPM

Oil Pressure
·0- 80 psi

Water Temperature
·100- 260ºF (optional metric version 40- 120ºC)

Fuel Level
·E, 1/4, 1/2, 3/4, F

Voltmeter
·9- 17 VDC

Lighting

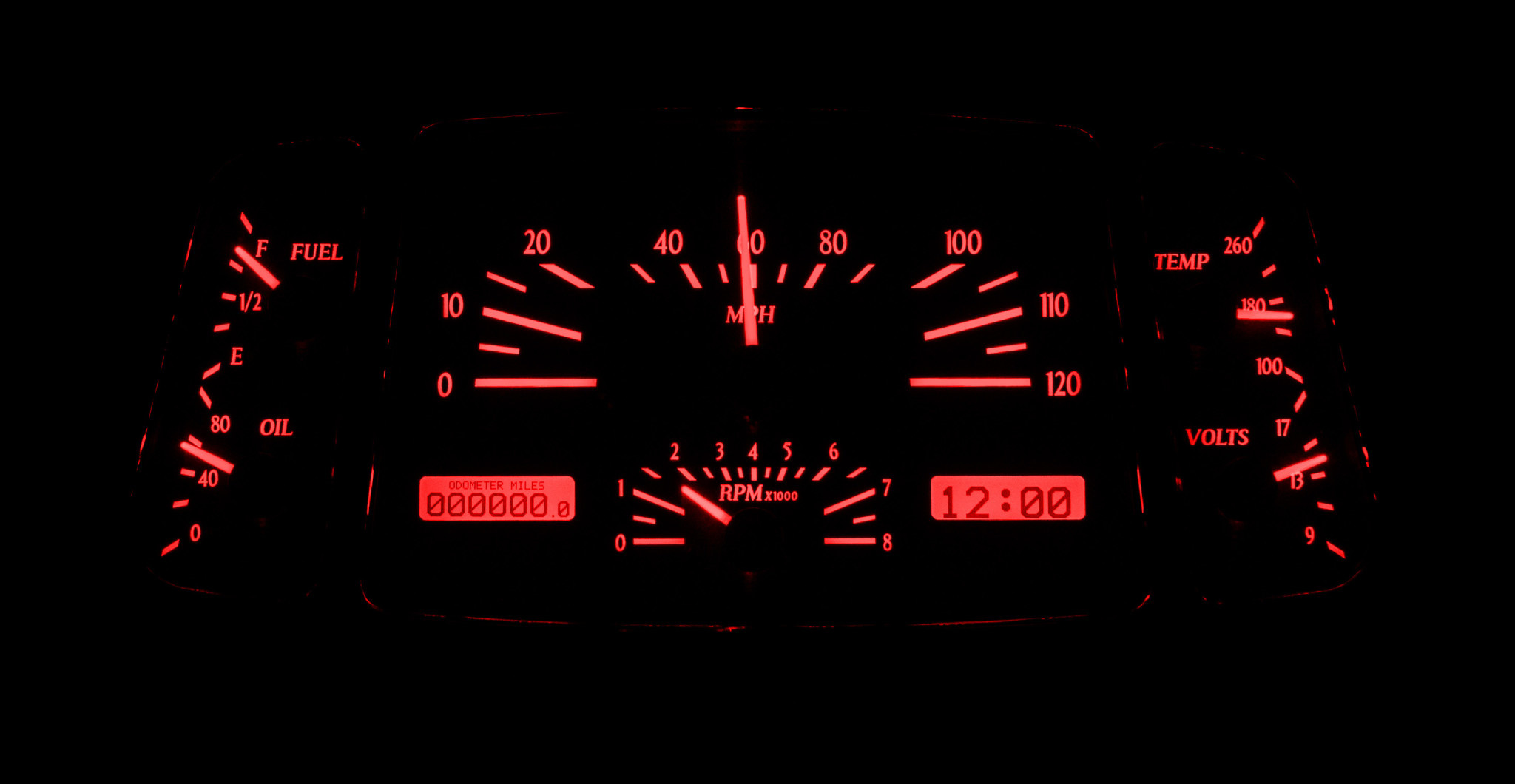

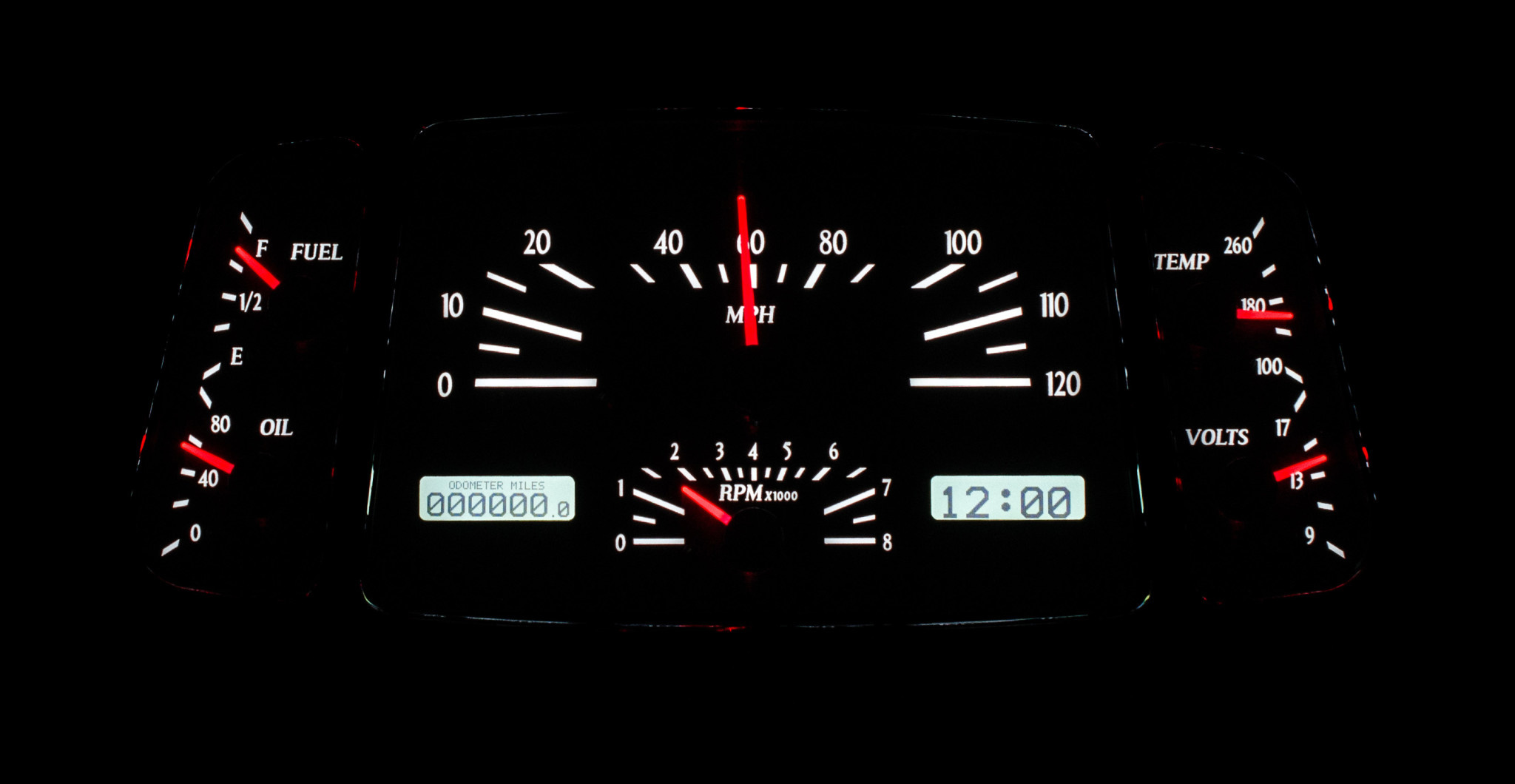

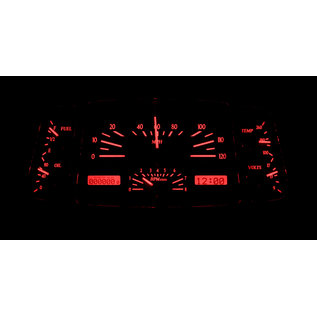

·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers


Standard Displays
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)

Performance Meters
·0- 60 MPH Timer (0- 100 kmh)
·1/4 mile time
·1/4 mile end speed (trap speed)
·High speed recall
·High RPM recall

Gauges
·Speedometer (0- 255 MPH/kmh)
·Tachometer (0- 9,900 RPM)
·Oil Pressure (0-100 psi displayed in 1 psi increments)
·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
·Voltmeter (9- 17 VDC)
·Fuel Level (0-99% full)

Lighting
·Auto-contrasting LCD display for optimal view in the brightest of sunlight.
·LED backlit at night to match/ complete the look at night.

Built-in Indicators

Indicators
·Turn Signals (Left/ Right)
·High Beam
·Check Engine
·Parking Brake
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-2000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
 **Not all OEM indicator lamp functions will be replaced.
  • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.



Manuals



Color Options



Red

White

Blue

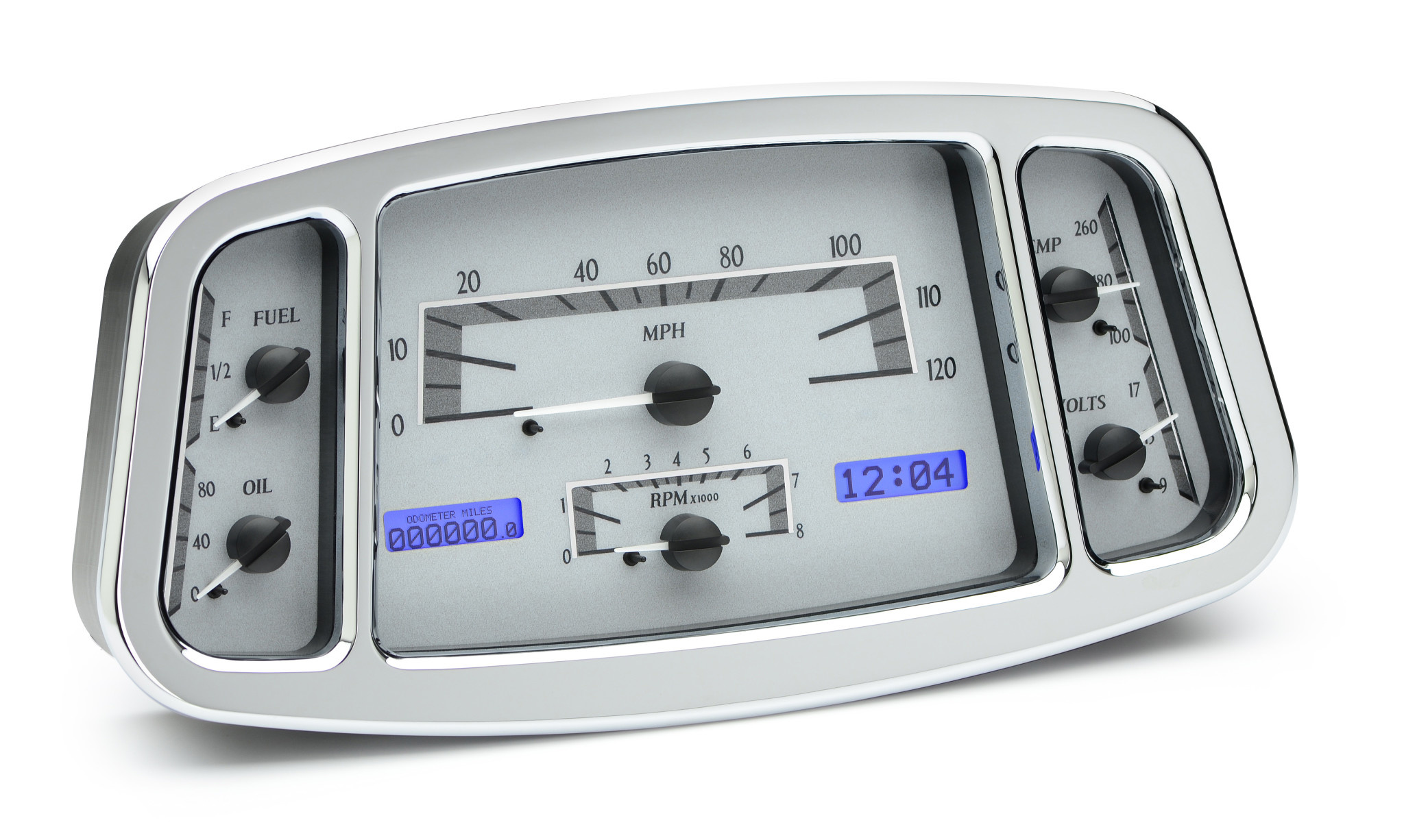

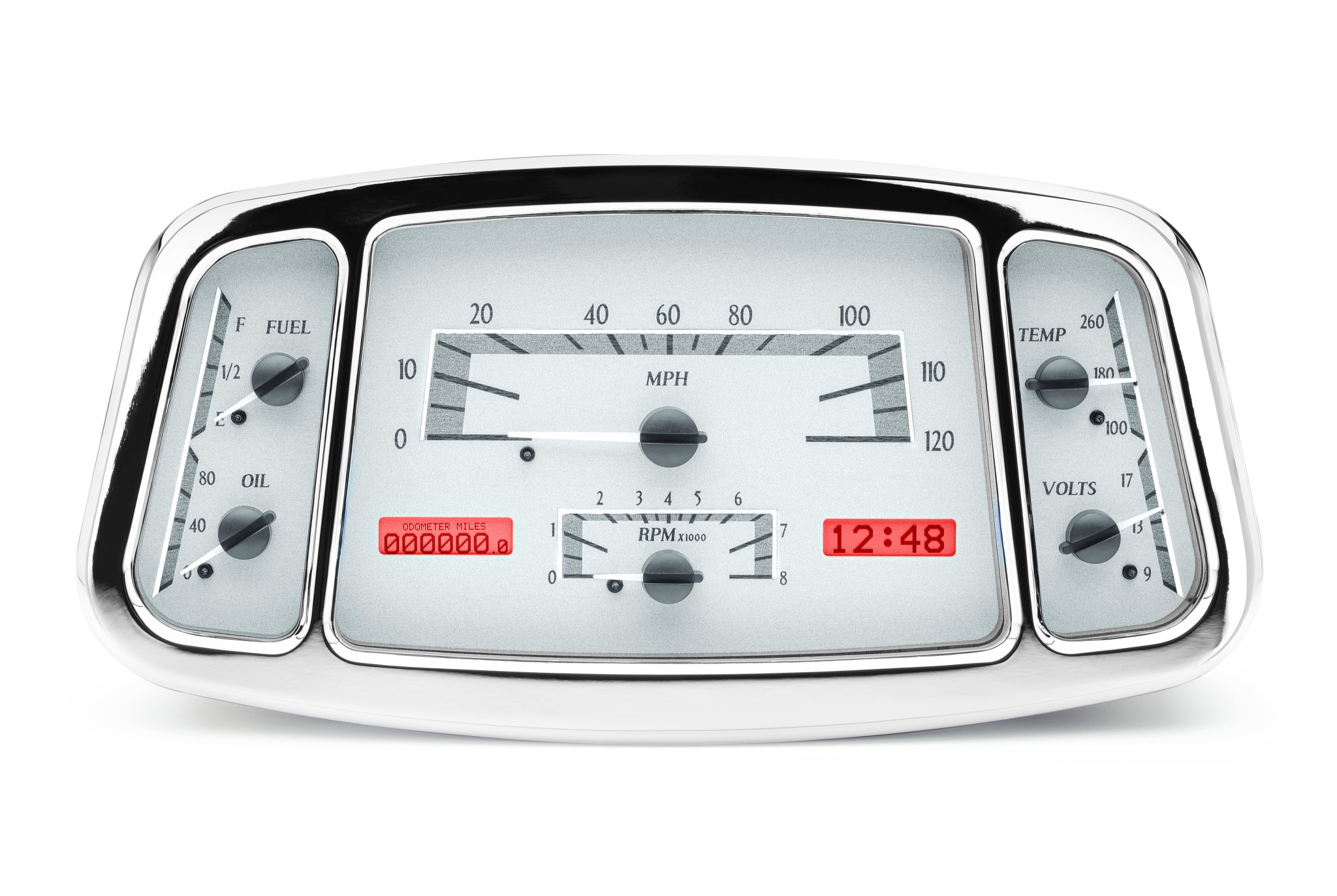

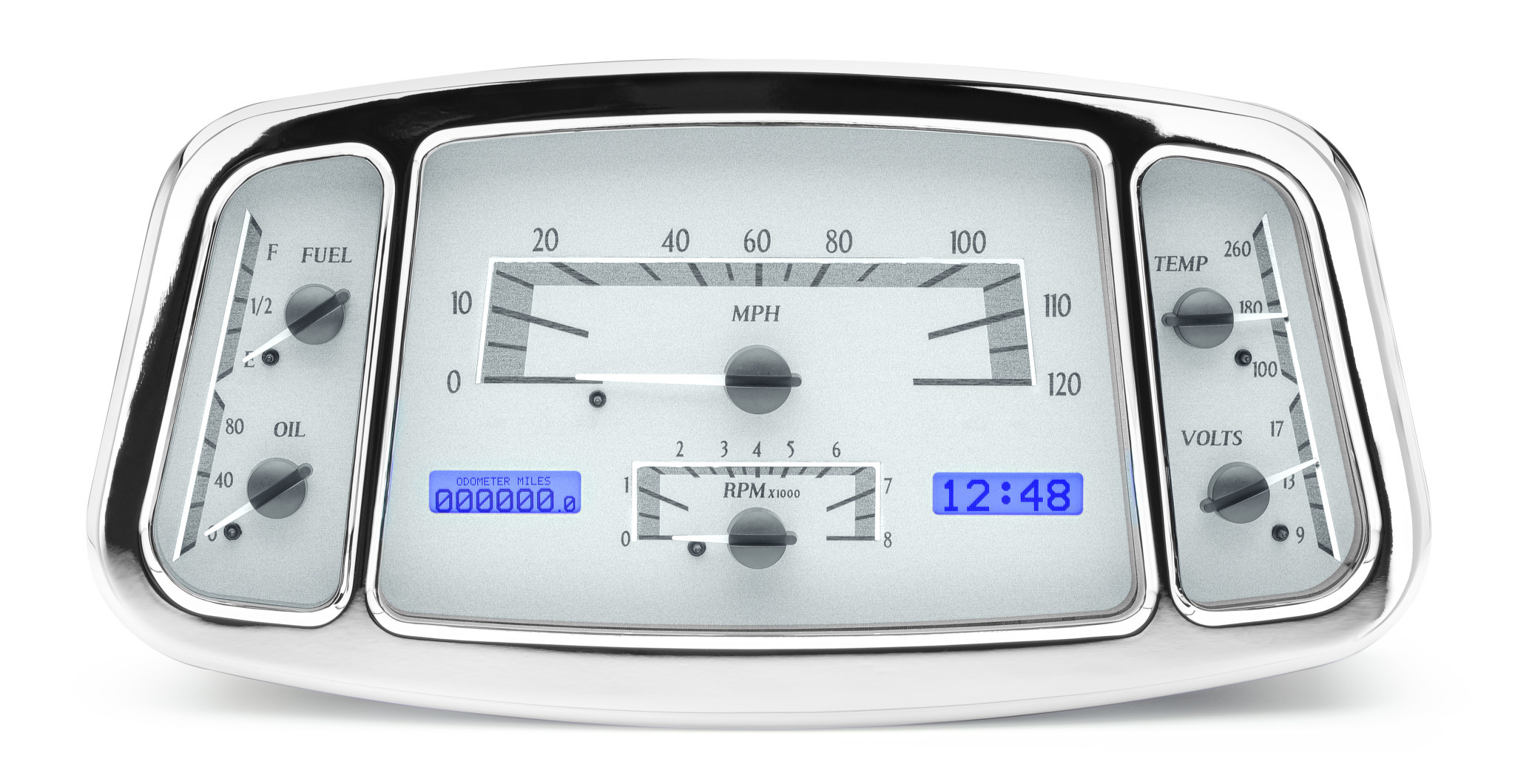

Silver Background

VHX-33F-S-R

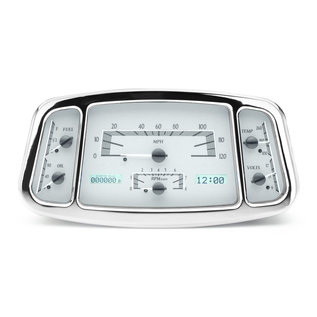

VHX-33F-S-W

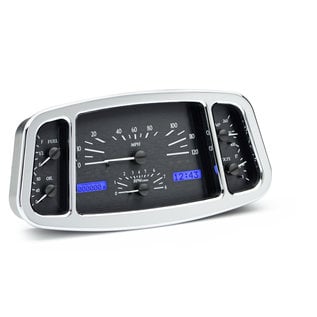

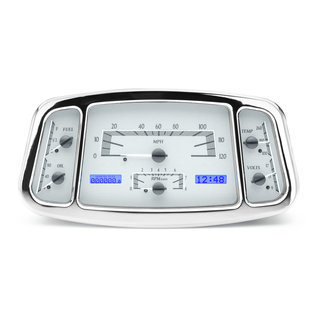

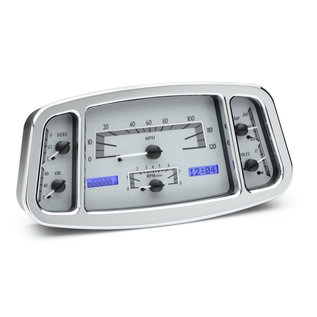

VHX-33F-S-B

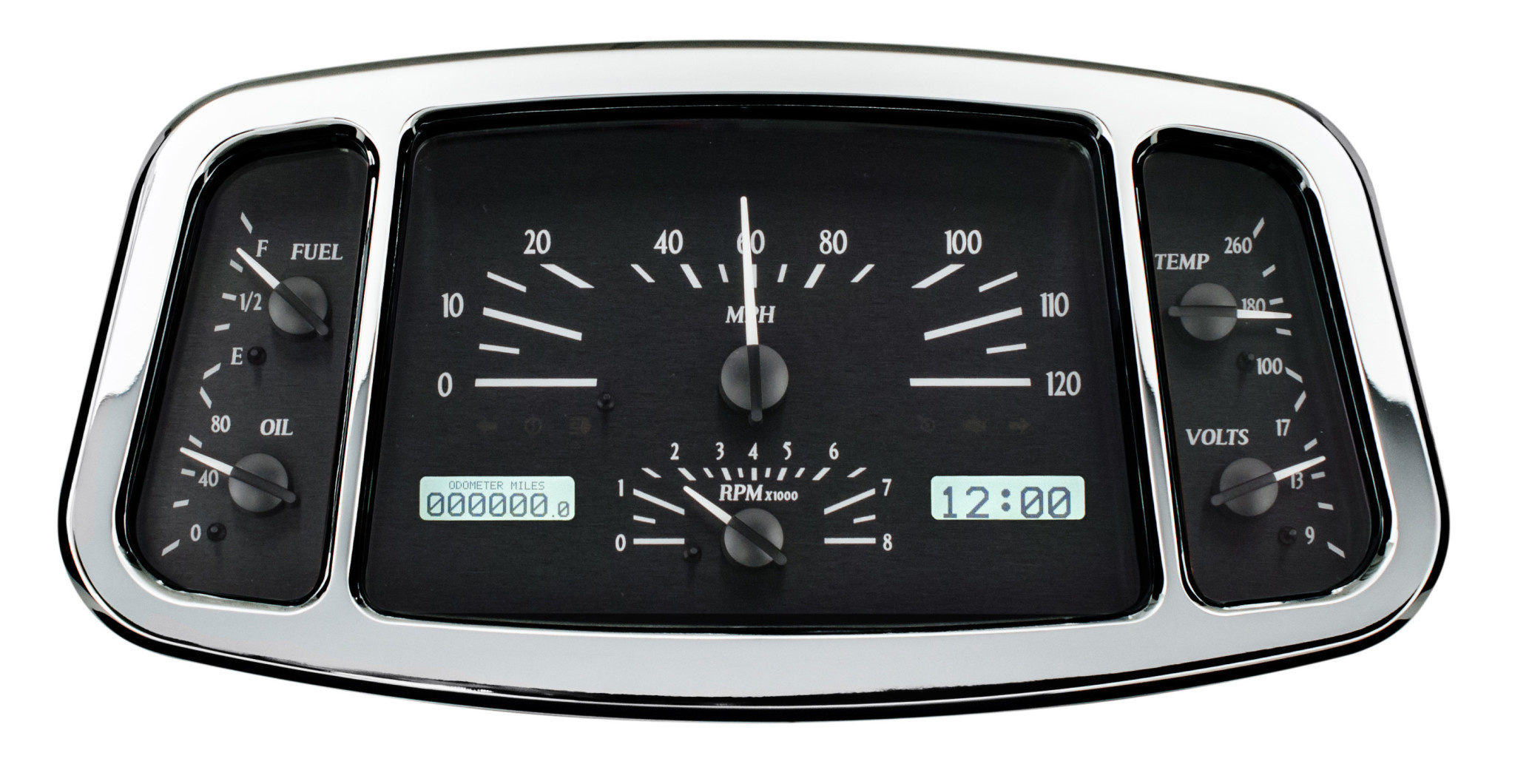

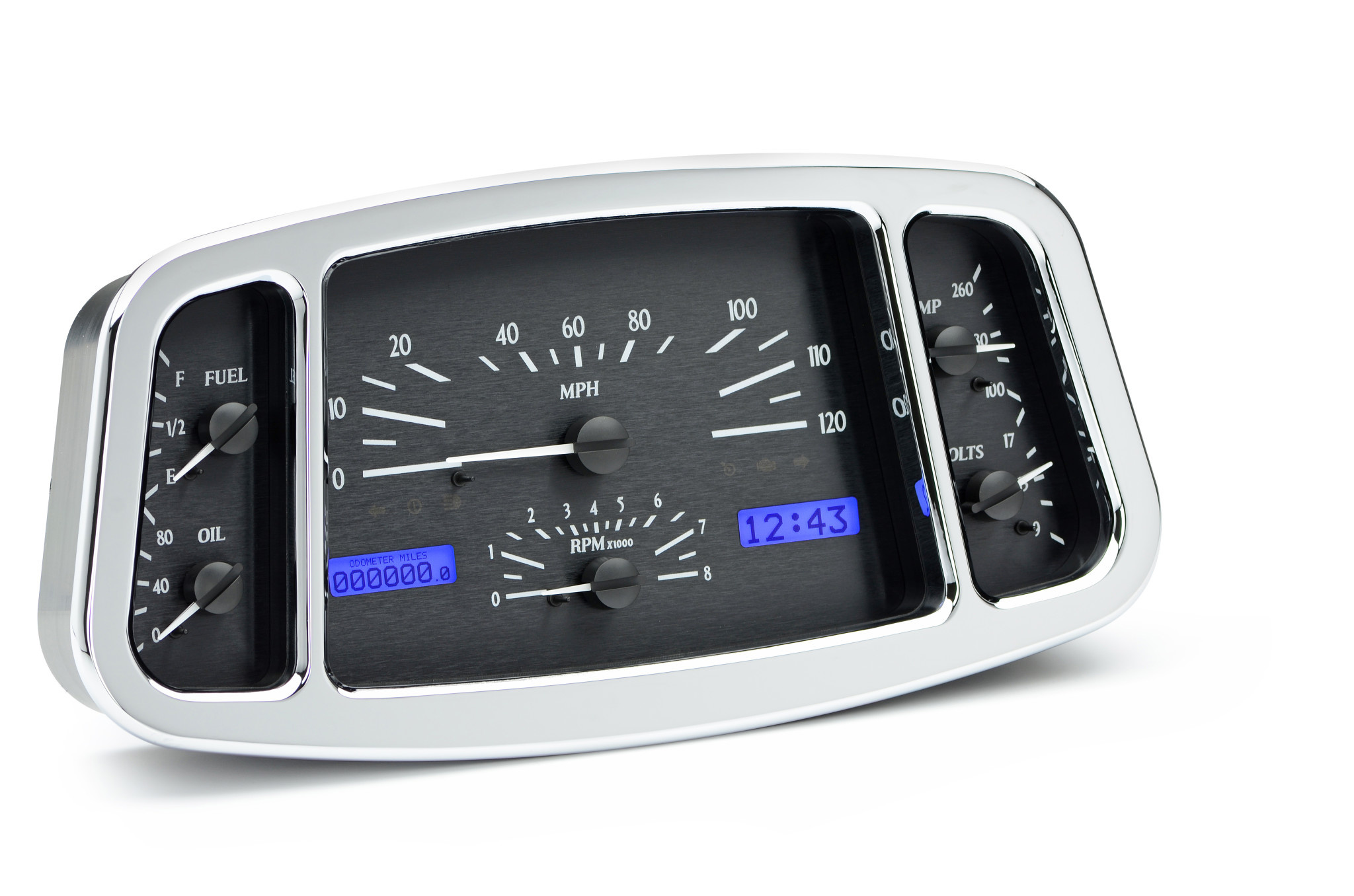

Black Background

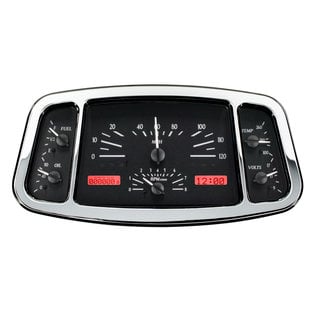

VHX-33F-K-R

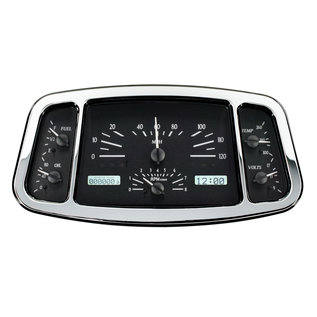

VHX-33F-K-W

VHX-33F-K-B
