Roadster Supply Company - Roadster Supply Vega Steering Box Plain 20:1 - RSC-11140

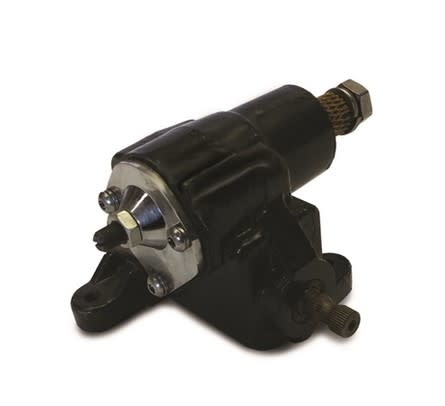

Roadster Supply Vega Steering Box Plain 20:1 - RSC-11140

The hot rod enthusiast's standard for conventional cross steer. Stock 20:1 Steering Ratio. Cast iron, painted. Input shaft: 5/8" - 36 spline. Output shaft: 1" - 32 spline, tapered. SOLD EACH

FEATURES:

Input Shaft: 5/8" - 36 Spline
Output Shaft: 1" - 32 Spline Tapered
Turning Ratio: 20:1 (Stock Vega)
Mounting Hole Sizes: 7/16"-14

The most common steering gear box in the hot rod industry for conventional cross steer applications. A cast iron construction painted black with chrome cap. This box uses the Vega 5/8" - 36 spline universal joint and accepts all standard 1" - 32 spline tapered Vega pitman arms. For use with cars under 3,000 pounds.

FOR BEST STEERING RESULTS WE RECOMMEND USING BORGESON 920004 BOX ALSO AVAILABLE ON THIS STORE
