Dakota Digital - Universal Speedometer and Tachometer Interface - SGI-100BT

Universal Speedometer and Tachometer Interface - SGI-100BT

$94.95 Excl. tax
Delivery time: Due to delays associated with Coronavirus, order fulfillment may be delayed. Call 620-792-2836 with any questions.

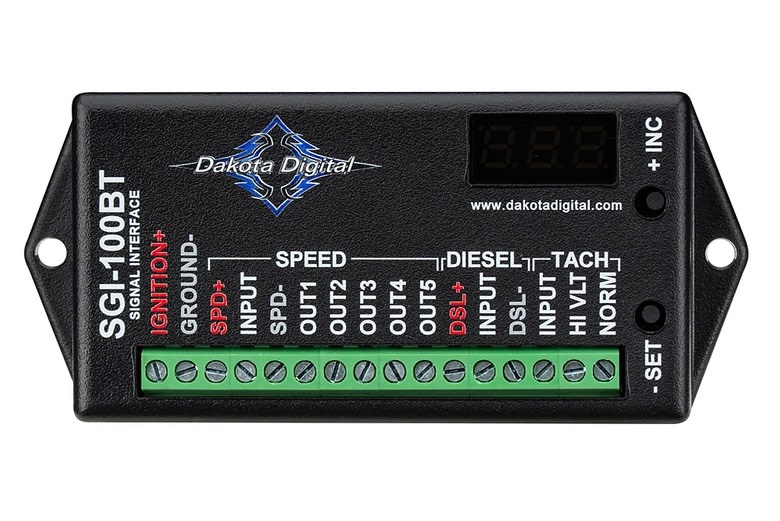

Universal Speedometer and Tachometer Interface - SGI-100BT

The functionality of three devices in one 4” x 2” x 1” case! The SGI-100BT can adjust/split/recalibrate an electronic speed signal, calibrate a tach signal, and aid in the creation and adjustment of a gas tach signal for diesel swap applications!

  • Speed calibration from 25% - 400%
  • Multiple speed outputs available for multiple devices.
  • Electronic pull-up built in; high or low voltage input.
  • Tachometer settings from 1-16 cylinders and 5V or 12V signal type.
  • Diesel applications: outputs for 4, 6 or 8 cylinder tachs.
    • Can read off flywheel sensor (available separately), timing gear sensor or alternator W-terminal (stator tap).
  • Bluetooth technology syncs unit to available mobile app for programming and setup.
  • Built-in programming buttons and LED display for setup in lieu of app.
  • Not for use with ABS sensors or systems.

    *Product not compatible with most '86 to current European or '96 to current Jeep tachometers.



Manual
