Chevrolet Truck LS A/C bracket kit for engines with truck or 2010-2015 Camaro accessory drive (crank pulley and water pump). 141840

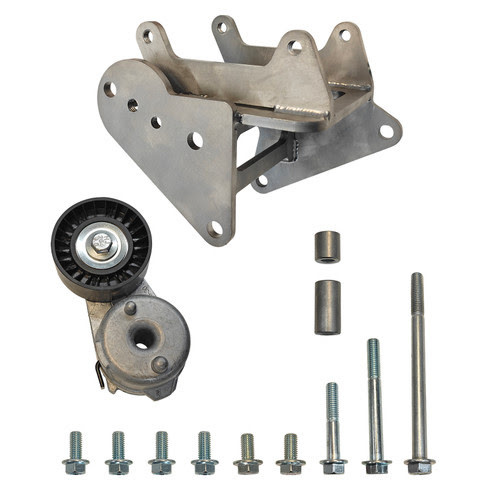

TiteFit LS Compressor Bracket Kit -141840
Chevrolet Truck LS A/C bracket kit for engines with truck or 2010-2015 Camaro accessory drive (crank pulley and water pump). Important information to note include:
This kit is designed to work with multi-groove Sanden or TCCI 7H15 “709” compressors with radial-exits such as part #04709-VMA or rear-exits such as 047007.
This kit contains spacers to accommodate both 1999-2013 trucks and 2010-2015 Camaro water pumps (See Page 5 of instruction).
Due to the variety of front drive combinations available for the LS family engines, Vintage Air recommends verifying that you have one of the water pumps and the corresponding crank dimensions as shown on Page 4 of the instruction.
This kit is designed to work with OEM style valve covers. Aftermarket valve covers may interfere and require modifications.
Belt length and routing may vary based on pulley diameter and accessory options.

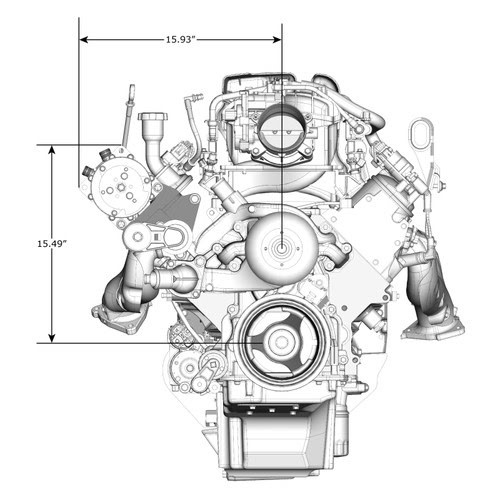

Truck water pump shown in all installation instruction illustrations.
The bracket assembly and spacers come with a corrosion resistant coating that can be installed as-is, or painted prior to installation.
