Vintage Air - Vintage Air Small Block Ford Front Runner Drive System - A/C, Alternator & Power Steering

Our Front Runner™ drive systems are engineered for maximum Performance First. These are not merely appearance or dress-up components. They are the essence of form following function.

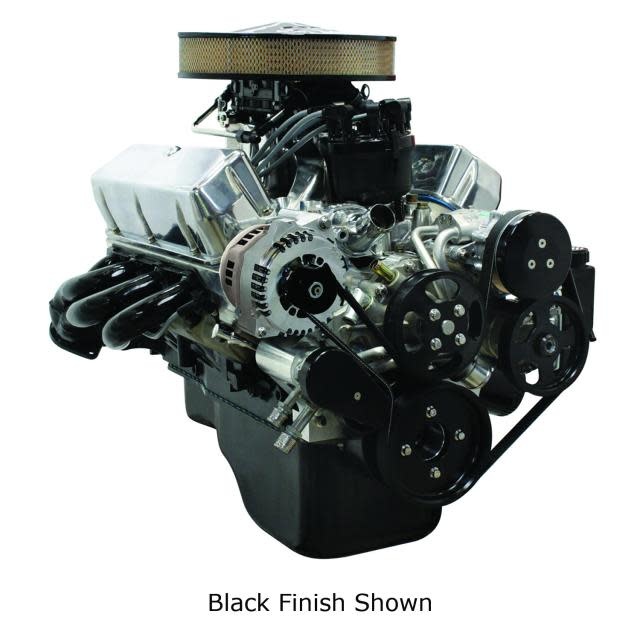

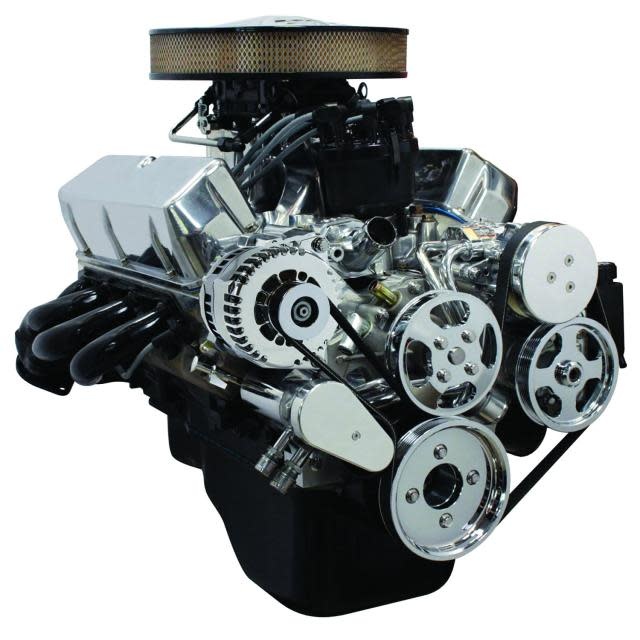

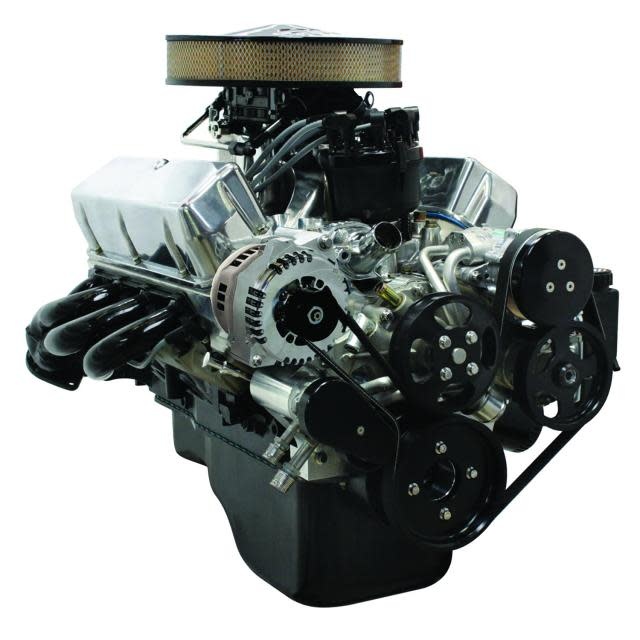

Designed for Small Block Ford applications with power steering this kit features a Detroit Speed aluminum power steering pump, a natural finish front cover/bracket, a Sanden SD7B10 compressor, 170 Amp Mechman alternator, CNC machined pulleys, compressor clutch cover and tensioner cover.

In addition to detailed installation instructions all of the components listed below are included.

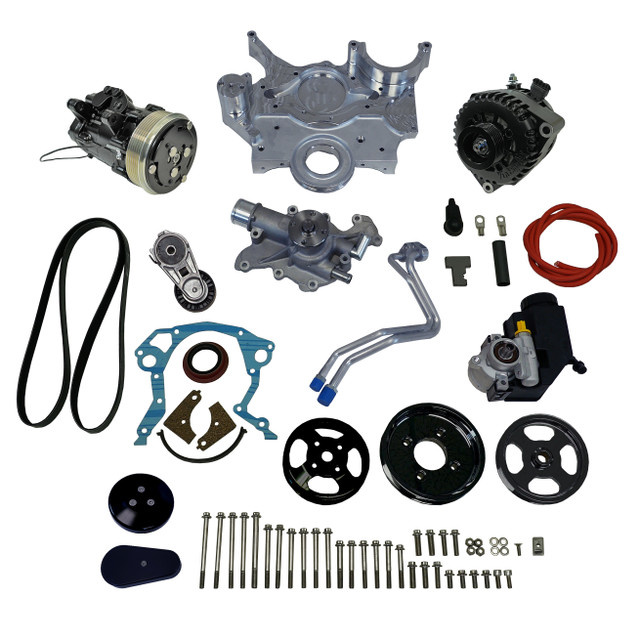

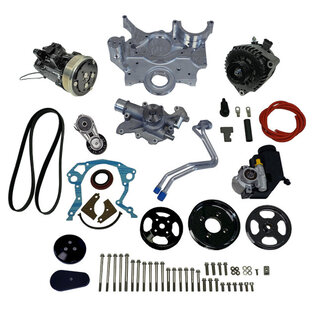

• Patented 1-piece forged aluminum timing cover with integral accessory mounts
• ARP stainless 12-point bolt and hardware kit
• Sanden SD-7B10 compressor with formed aluminum hardlines (passenger-side exit)
• 170-amp single-wire hairpin internal-fan alternator
• Dayco OEM tensioner
• Timing cover gasket set
• Dayco Performance serpentine drive belt
• Detroit Speed aluminum power steering pump with integral reservoir
• Compressor clutch cover
• Tensioner cover kit
• 4-bolt crankshaft pulley
• Stewart high-performance water pump
• Water pump pulley
• Power steering pulley

NOTES:
1. This kit requires an electric fuel pump.
2. This kit requires a 4-bolt harmonic balancer. If using a Ford Motorsports 6.573-inch diameter balancer, a 1-inch thick spacer (Vintage Air Part # 199002-HFA) is required.
3. If using a front-sump oil pan, it will be necessary to purchase our Stainless Steel Dipstick Kit (Part # 399009-SFA).

Installation Instructions

174101 176020 174100 176017
