Classic Instruments - Six Pack Gauge Set - Black - SX01BSLF

Six Pack Gauge Set - Black - SX01BSLF - Retail: $985

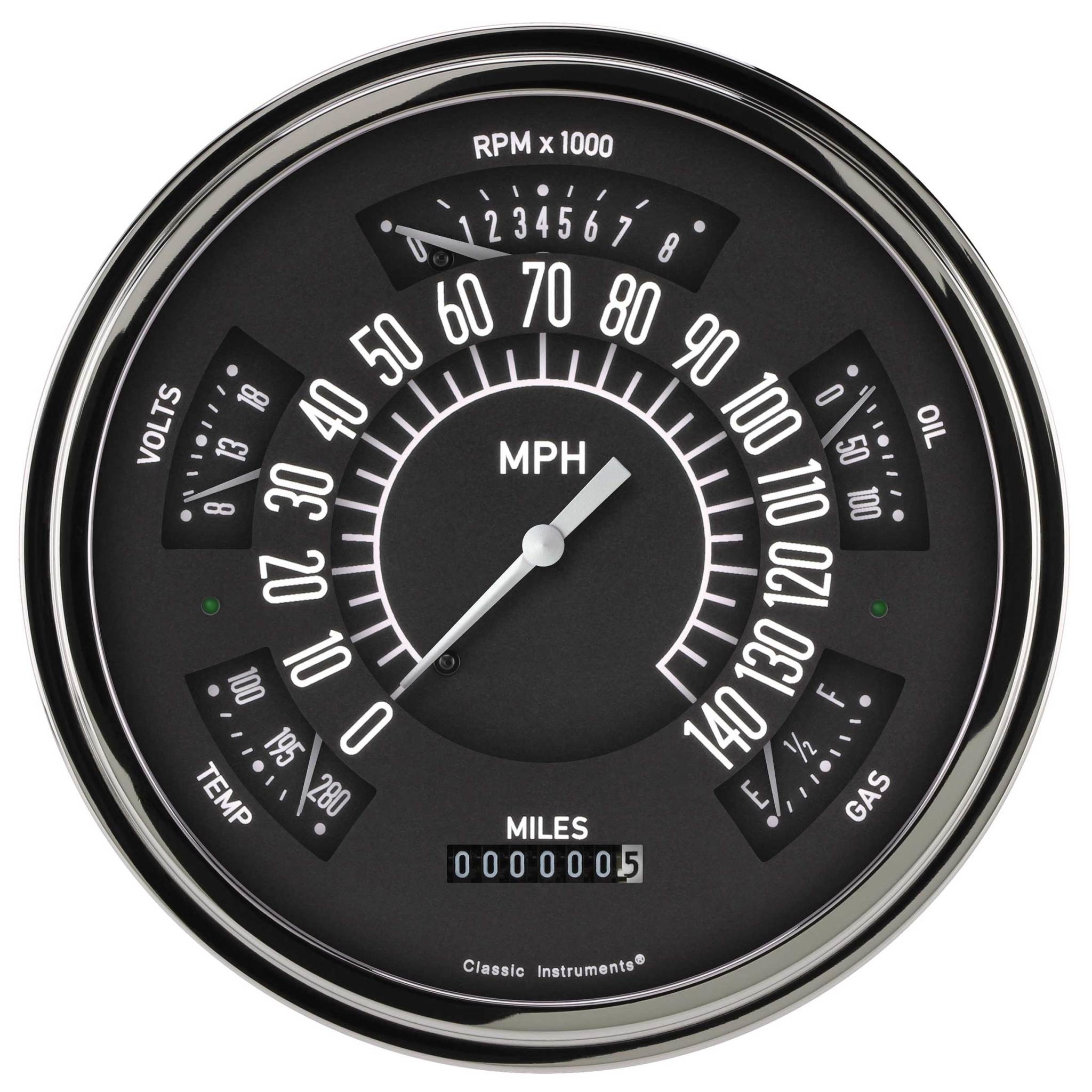

The 6-Pack features the speedometer, tachometer, fuel, temperature, volt, and oil gauges all in one universal fit instrument. Installing the all-electronic cluster is easy with a single harness connection in the back, Classic Instruments' Zeus Speedometer Technology for push button calibration, and all the included sending units.

 Key Features

• 5 ¾” hole size required for mounting

• 6 ¼” overall outside diameter

• U-shaped bracket to clamp in the back

• LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster

• Turn signal indicators in the left and right sides of cluster, green LEDs

• High beam indicator hidden at the top of the tachometer, red LED HaloTM

• Zeus Speedometer Technology built-in (patent pending), molded plastic back housing

• Push button calibration, switch included, part no. SNPB

• ECM signal filter switch built-in

• Standard GM sender kit included (t­­emp., fuel, oil, speedometer senders), part no. SNGM

*Please change fuel ohm range if you are using a factory fuel sender. (Ex. Ford pre-1986: 75-10, GM 1964 or earlier: 0-30, GM 1965-1998: 0-90)
