Roadster Supply Company - Roadster Supply Vega Steering Pitman Arms

Roadster Supply Vega Steering Pitman Arms - Select Polished or UnPolished Above

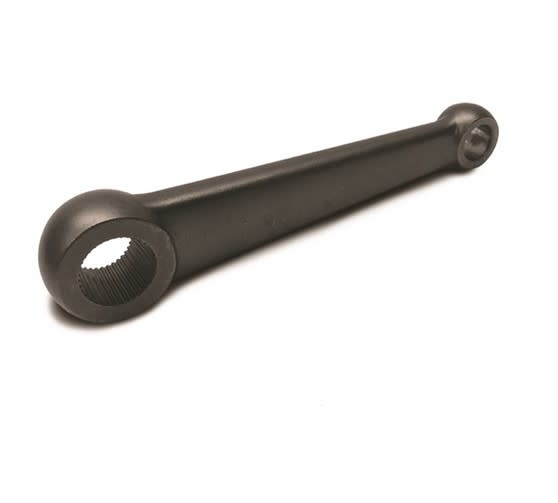

Tapered 7 degrees from top side only for maximum tie rod engagement. Investment cast 17-4 stainless steel, un polished. Engineered with a 6.250" center to center. Accepts 5/8" or 11/16" Ford tie rod ends. SOLD EACH

FEATURES:

For Use With Vega Steering Boxes

Center to Center: 6 1/4"
Tie Rod End Taper Angle: 7 Degree **Tapered From Top Side
Spline for Steering Box Output Shaft: 1" - 32 Spline Tapered

Straight design for non-offset applications keeps the pitman arm 90 degrees in relation to the output shaft. American Hot Rod Parts' pitman arms are made of 17-4 investment cast stainless steel. This pitman arm is also available fully polished on this store. Search for Pitman Arm in the search box to learn more.

WHAT'S INCLUDED:

NOTES & TIPS:

This pitman arm is designed with a single taper from the top side for maximum tie rod engagement. If your application requires the tie rod end being installed from the underside, a double tapered option is also available - call for details.
