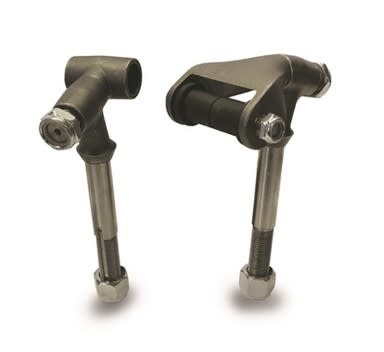

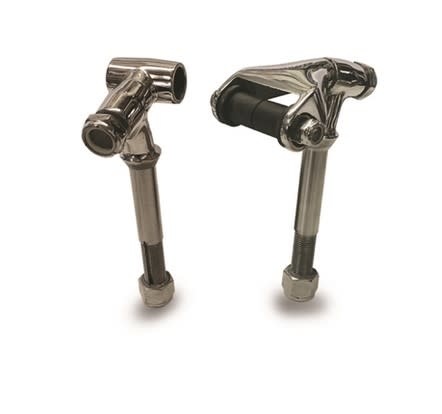

Roadster Supply 1924-34 Adjustable Dead Head Front Spring Perch Sets - Select Polished or Plain Below
Read more...
| Article number: | 00161103 |
| Quantity: | 1 |
Roadster Supply 1924-34 Adjustable Dead Head Front Spring Perch Sets - Select Polished or Plain Below
Adjustable head for increased caster adjustment. Included dead head eliminates side to side spring movement shackles face. Stainless body with keyway for lower shock mounts. For use with 1 3/4" wide spring. Thread size: 5/8"-18. For bushing diameter: 3/4". SOLD IN PAIRS
FEATURES:
For Use With 1 3/4" Wide Springs
Thread Size: 5/8"-18
For Bushing diameter: 3/4"
Keyway Width: 0.125"
Perch 'Bolt' Diameter: 0.680"
American Hot Rod Parts' stainless steel perches are heat treated 17 - 4 stainless and designed extra long with a 0.125" wide keyway to eliminate lower shock mount rotation other brands face. The dead head perch kit offers the caster adjustment of adjustable perches and further acts as a great alternative to a front panhard bar by eliminating side to side spring movement, Also known as death wobble.
WHAT'S INCLUDED:
| 2 (TWO) | Stainless Steel Perch Bodies | 1 (ONE) | Stainless Dead Head Assembly |
| 1 (ONE) | Stainless Steel Swivel Head | 2 (TWO) | Urethane Shackle Bushings |
| 2 (TWO) | Stainless Steel Nyloc Nuts | 2 (TWO) | Stainless Steel Jam Nyloc Nuts |
NOTES & TIPS:
American Hot Rod Parts' dead head perches are also available in polished or un polished stainless steel.
After setting final caster adjustment, all adjustable style perches can be welded at rotation point to eliminate front end rotation under high braking loads.
Remember to always use Anti-Seize on all stainless steel and aluminum parts.
