Vintage Air - ProLine Gen IV / Gen 5 Horizontal Control Panel

ProLine Gen IV / Gen 5 Horizontal Control Panel

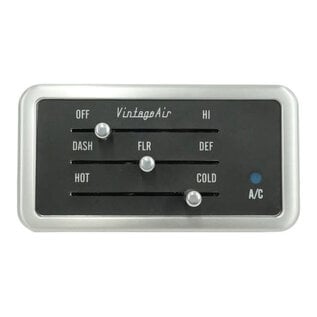

For builders seeking a more modern layout, the ProLine Rectangular Panel delivers precise slide-style control with a polished bezel and knobs, paired with a matte-finish Mylar face. These panels include variable soft-white LED illumination and are available in both horizontal and vertical orientations, offering maximum flexibility for custom installations. Features include:

• Machined aluminum slide control panel
• Polished bezel and knobs
• Matte finish Mylar face
• Variable soft-white LED lighting

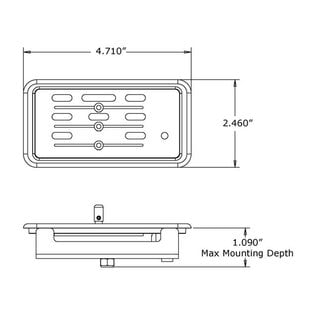

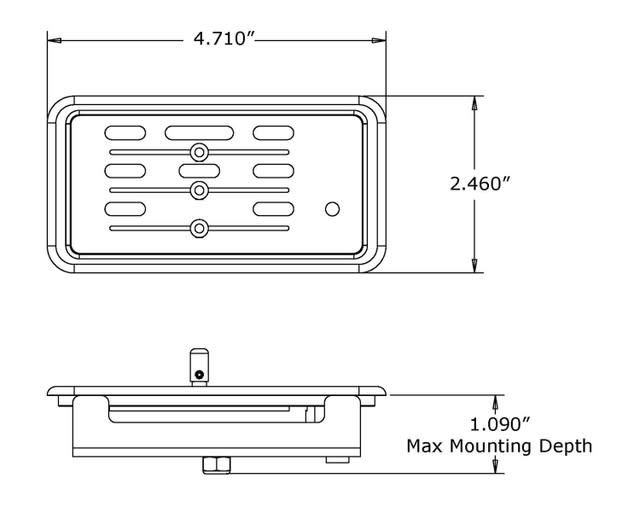

• Panel size: 4.710-inches wide x 2.460-inches high x 1.090-inches deep

Available in three finishes:

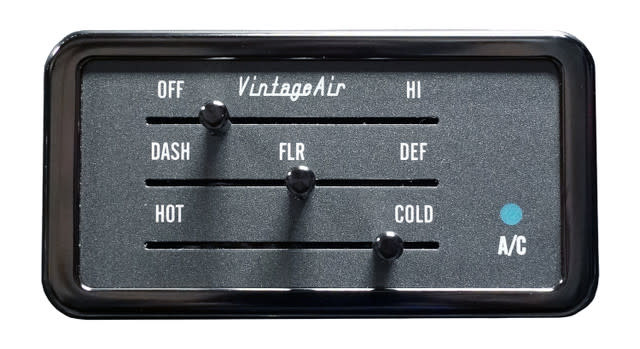

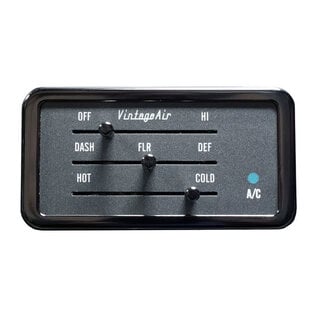

• Black anodized face and knobs - 490769

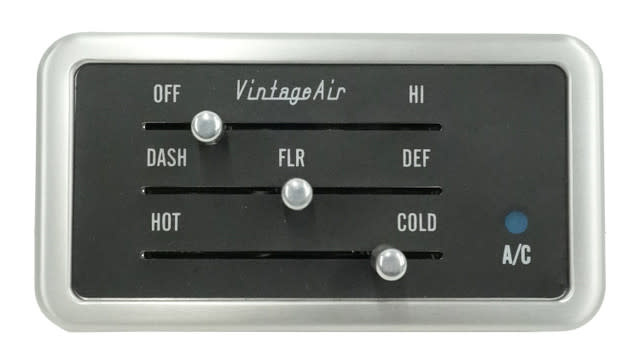

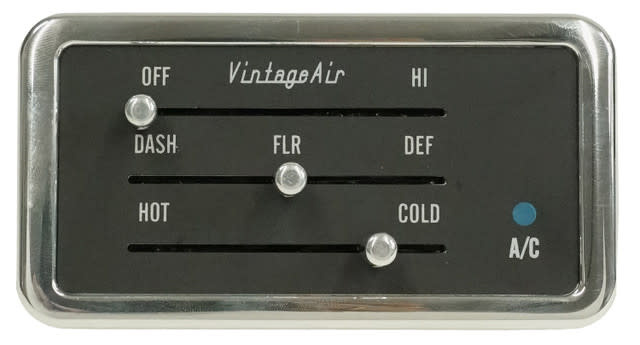

• Polished bezel and knobs - 490765
• Clear anodized face and knobs - 490772

NOTE: Drop-in replacement for GEN II^® rectangular panel footprint and cutout. Backwards compatible with GEN IV^® systems with 246204-PUA ECU.

Installation Instructions
