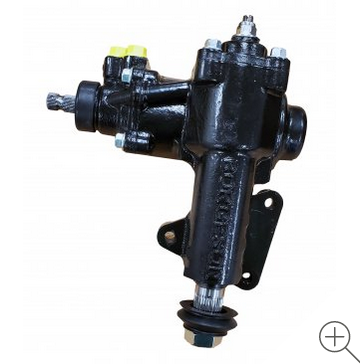

Borgeson power steering conversion box for 1962-1966 Chevy II Nova.

Borgeson Power Steering Conversion Box - 62-66 Chevy II Nova - 800117

$518.81 Excl. tax

Delivery time: Typically ships within 7-10 business days

Brand:

Borgeson

Information

Borgeson power steering conversion box for 1962-1966 Chevy II Nova. New manufactured modern power steering gearbox with a 11/16"-36 spline input shaft and a 14:1 ratio. Steering column modifications required for installation, see product instructions for more info. All Borgeson power steering boxes are assembled and tested in the USA from globally sourced components and have a 3 year warranty.

800117 DIMENSIONS

800117 INSTRUCTIONS

IMPORTANT INSTALLATION NOTES

1: Power conversion box is intended for use with stock column.

2: Floor Shift Applications Only. Any stock column can be modified to fit our box however column shift is not possible with added length of steering box.

3: Borgeson column shaft #990041 is recommended for installation.

800117 SPECIFICATIONS:

Input Shaft: 11/16"-36 Spline

Pitman Shaft: 1-1/8" GM with 32 Splines and 4 Master Splines

Pressure Port: 16mm X 1.5 Flare (Located closest to engine)

Return Port: 16mm X 1.5 Flare (Located closest to input shaft)

Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal

Flow Rate: 2.0-2.5 GPM Flow Rate Recommended
