OTB Gear - Cast Finned Remote Oil Filter Assembly - Remote Mount -

OTB Gear Cast Finned Remote Oil Filter Assembly - Remote Mount - Select Finish Option Above

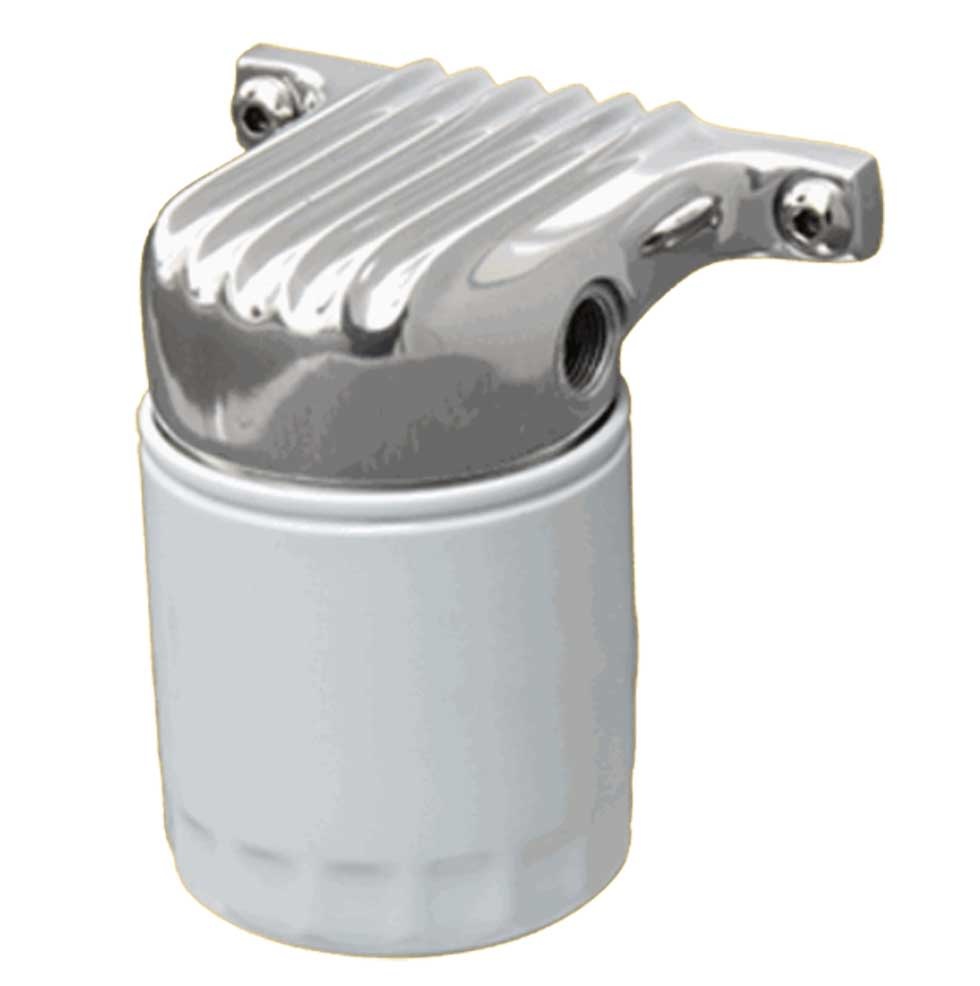

A good looking, high quality solution for your oil filter mounting needs. truly compact in size, perfect for those tight spaces. Cast of aircraft grade A-356 aluminum and embellished with our graceful fins. We furnish a U.S. made filter - replacements available in your local market. Offered in highly polished or unpolished variations. Mounting hardware and oil line fittings are not included. Made in USA.

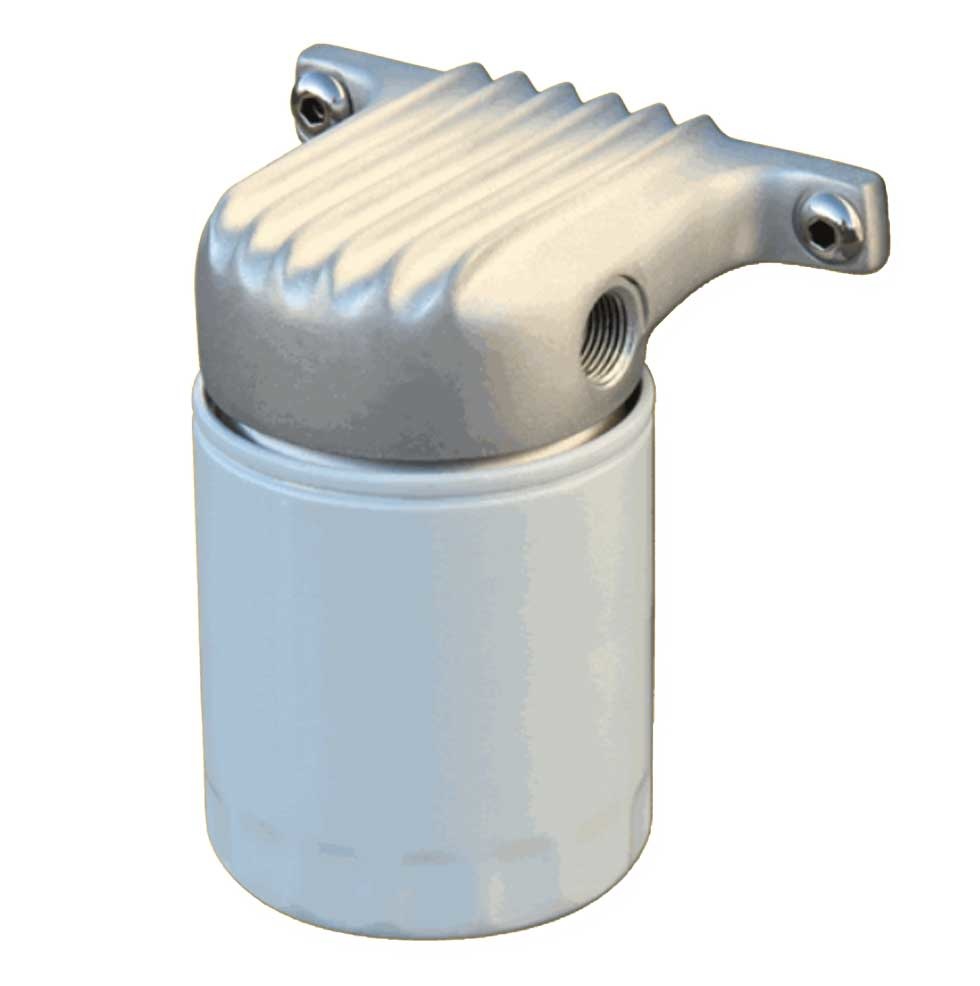

*The unpolished version is bead blasted for a smooth, uniform finish.
*Drilled for 5/16" mounting bolts - holes are 4-3/16" center to center.
*Drilled and tapped for 3/8" oil line fittings.
*Oil flow is from right to left when facing the product.
*Max. width 5-1/4".
*Projection from mounting surface 3-3/4".
*Height with filter 5-1/2".
*Filter Details: Compact design, full flow, anti-drain back valve, internal by-pass valve @16PSI, max flow rate 7-9 GPM, micron rating 21, burst pressure 360 PSI.
