Nu-Crank Switches - GM Large Round - Short Shaft with Harness - 214
Keep an original look by using Nu-Crank Switches.
Nu-Crank switches allow you to use your crank handle as the switch.
The housing is aluminum which has been milled with solid stops on each side. When the handle is moved,
the micro switches cannot be crushed due to the internal design. This protects the micro switches when someone
unknowingly tries to really "crank" the handle.

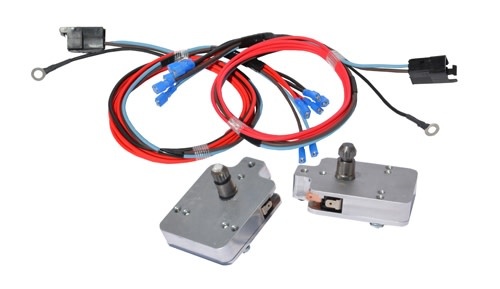

Included are 2 switches and 2 completed wire harnesses.
Fits the following:
Camaro- Front Doors and Rear Quarter Windows: 1967-1981
Chevelle - Front Doors and Rear Quarter Windows: 1964-1972
Chevy Truck: 1967-1971
Corvette: 1956-1962
El Camino: 1964-1972
GM Cars - Front Doors and Rear Quarter Windows: 1949-1957
Nova - Front Doors and Rear Quarter Windows: 1963-1967
Studebaker: 1949-1964
- NOTE: Customer can control all windows with the installation of a master switch. Master switches are sold separately and are also available in the accessories section. Single Master Switch to control one additional window or Quad Master Switch to control up to 4 windows.
Switch Housing: 2-1/4" x 3"
Shaft Length" 7/8" (to include housing 1-1/2")
Spline OD: 29/64" (.453)
Spline ID: 7/16" (.437)
