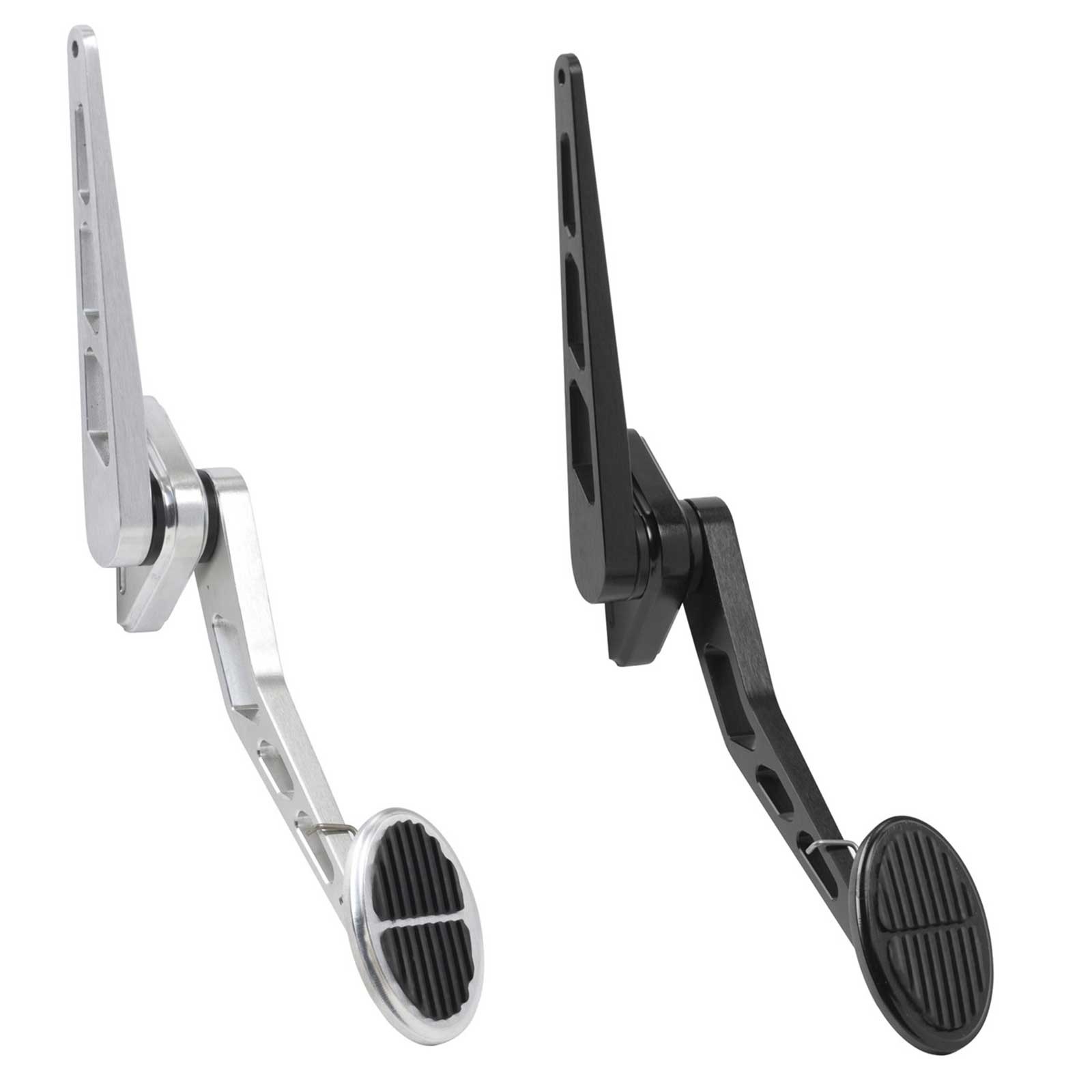

Mini Oval Billet Aluminum Throttle Assembly
Oval billet aluminum throttle pedals and brake pads come in three convenient sizes - Mini, Standard, and XL.
The throttle pedal is spring loaded with a removable lower arm that is splined for versatility and can be mounted to the right or left of the mounting bracket. The shaft and arm are one piece - requiring no pins.
Rubber inserts provide foot traction for safety.
|
Dimensional Comparison |
Throttle Pedal |
Brake Pad |
|
Mini Oval |
1-3/8" x 2-3/8" |
3-7/16" x 1-5/8" |
|
Standard Oval |
1-3/4" x 3-3/4" |
3-3/4" x 1-3/4" |
|
XL Oval |
2-3/8" x 5" |
5" x 2-3/8" |
|
Description |
Part # |
|

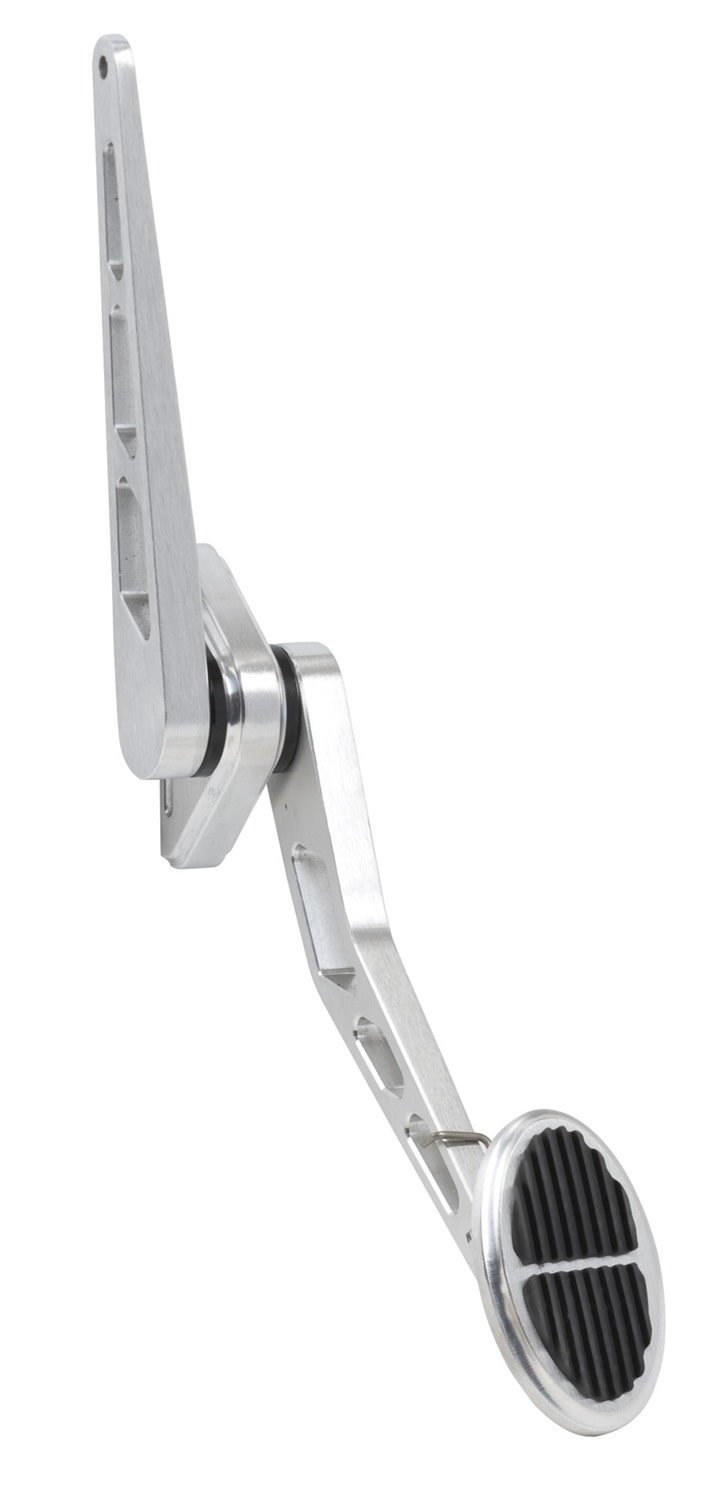

Brushed Oval Throttle Assembly - Mini |
BAG-6103 |
|

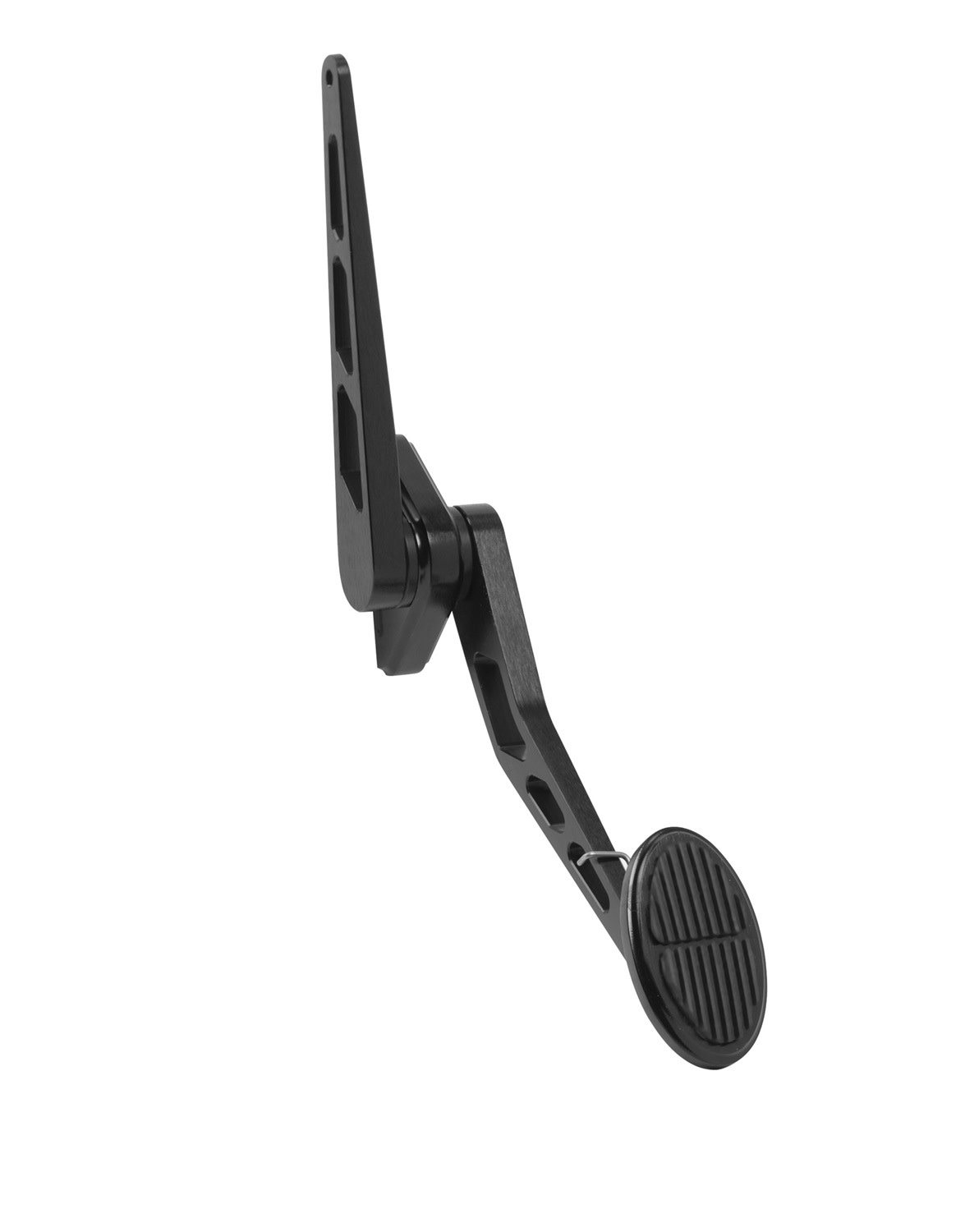

Black Oval Throttle Assembly - Mini |
XBAG-6103 |
