Vintage Air - LoPro™ 1932 Ford CustomFit™ Brushless Fan Kit - 280474

Genuine Vintage Air LoPro™ 1932 Ford CustomFit™ Brushless Fan Kit - 280474

Vintage Air LoPro Brushless Electric Fan and Shroud Combination 500 Watt 17.813 IN x 21.900 IN x 3.375 IN

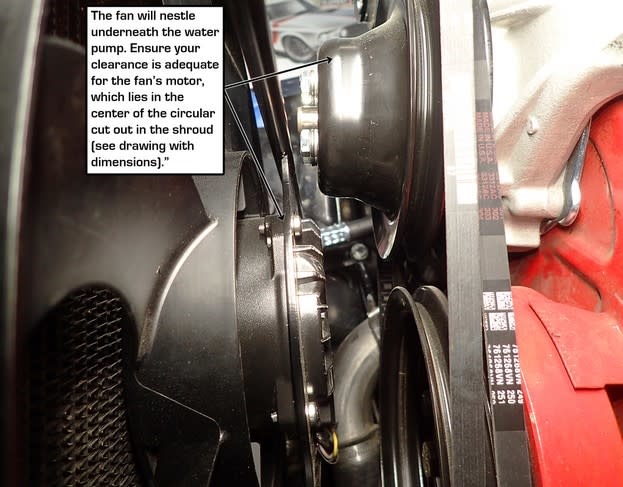

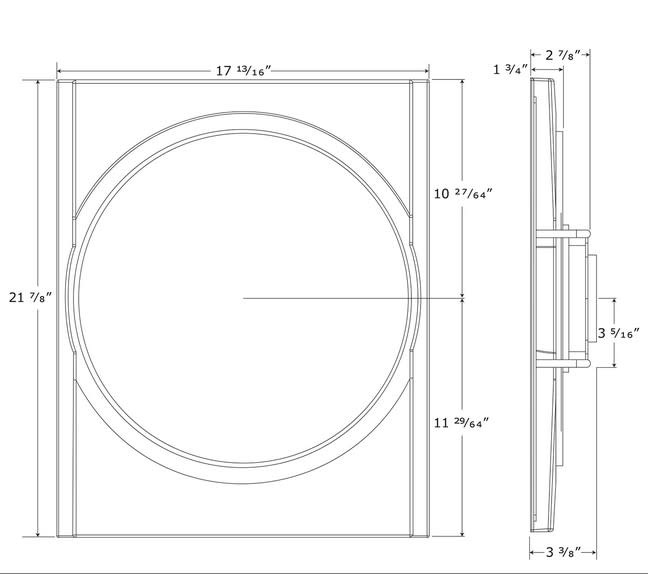

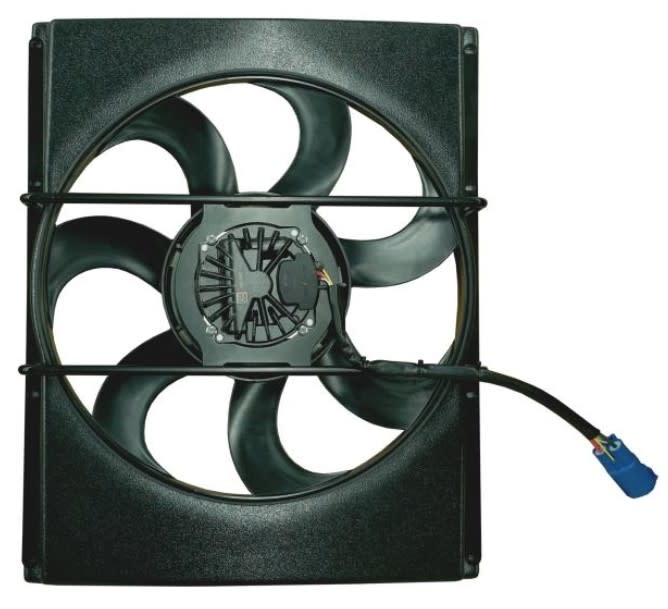

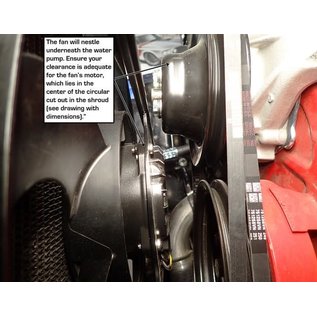

Brushless Electric fan with shroud. Powder coated tubular fan mounting bracket (see diagrams for clearance requirements). Mount vertically or horizontally.

NOTE: Fan is designed to be a puller only. Cannot be used as a pusher type fan.

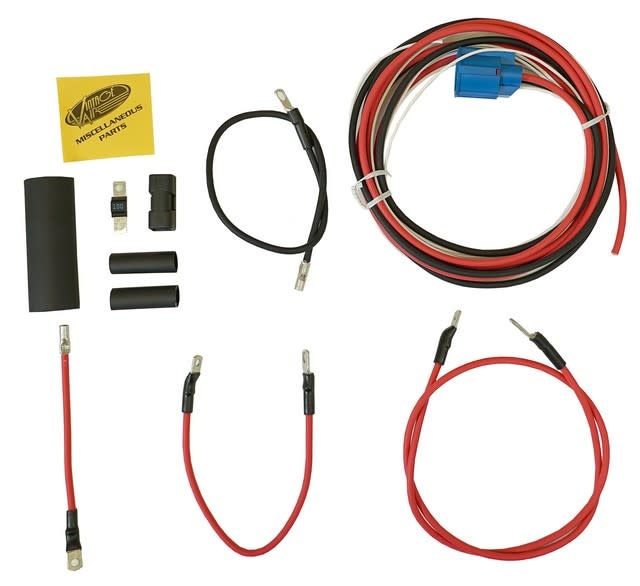

Includes power wiring kit 231068 (as shown).

NOTE: Requires temperature controller based on engine thermostat. See part numbers 113014, 113015 or 113016.

Control Kits for 500 Watt LoPro Fans

• 113014 - 190° Min. On - 215° Max - 195° Thermostat
• 113015 - 175° Min. On - 195° Max - 180° Thermostat
• 113016 - 165° Min. On - 185° Max - 160° Thermostat
