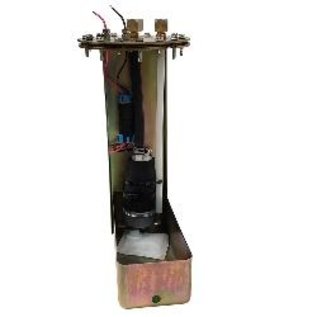

High Performance Fuel Pump - 340 Liters Per Hour - Up to 800 hp - PA-5
For over 20 years Tanks Inc has been retrofitting non EFI gas tanks with internal fuel pumps using their PA Series EFI Gas Tank Conversion Module. This In-Tank Fuel Pump module can be used to retrofit an internal fuel pump into your original gas tank.
This kit gives you everything that you need to install an internal fuel pump into nearly any tank. The PA Series fuel pump kit features a reservoir tray that eliminates fuel pump starvation that is common on non-baffled tanks. A properly installed internal fuel pump will essentially eliminate any issues that are common on external fuel pumps such as vapor lock and cavitation.
The pumps listed are capable of running up to 100 PSI and they will deliver a varying amount of fuel (gallons per hour) depending on the pressure. We have recorded estimated max HP ratings at 60, 70 and 7 PSI as a guide to finding the correct pump for your particular installation (click the application guide tab). See below for Installation Instructions.
Note: "TANKS" 35M, 37M, and U-T poly tanks do not require the "P" suffix.
Note: Our kits do not include fuel pressure regulators.
Note: All flow rates are rated at 13.5 volts.
Note: Assembly requires a minimum tank depth of 6 inches.
Note: Maximum tank depth of 10.5 inches with no modification.
Turbine Style High Flow PA Series Fuel Pumps
We use Walbro high-performance pumps in all of our fuel injection modules. Walbro (TI Automotive) is an OE validated pump manufacturer that supplies products for two-thirds of the vehicles produced around the world today. Based on our testing we believe that Walbro offers the highest quality pump on the market. These patented design dual channel deep pocket pumps produce high flow volumes at unparalleled efficiency that is better at hot fuel handling and recovery from aeration compared to other pump manufacturers. We offer multiple flow ranges in order to supply up to 1000 horsepower
