Tanks, Inc. - LS Fuel Line & Regulator Kit w/ 2x 45 Degree Fittings - LS-LINE-KIT45

Make Plumbing a LS Engine Swap a Snap!

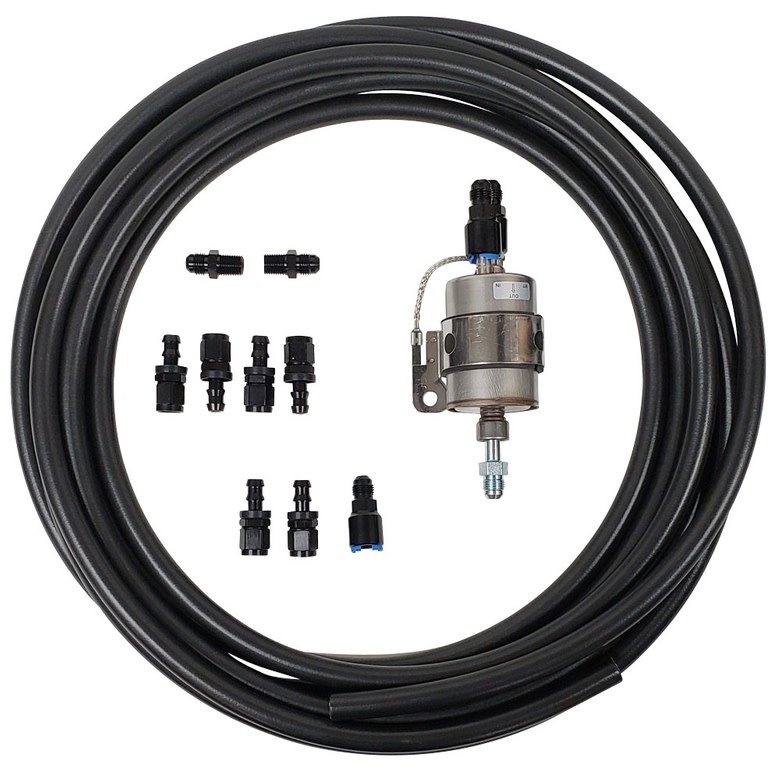

This fuel line kit includes 25 feet of line and all the fittings that you need for your LS engine swap using our fuel pumps.  This kit is designed for LS engines that have a single fuel inlet fitting.  The regulator in this kit is not recommended with fuel pumps that flow over 255 lph.

• # LS9904  Fuel Filter/Fuel Regulator
• # 640940  Russell 3/8" Male Quick Disconnect to -6AN Male Fitting (Fuel Feed from Regulator to Engine Fitting)
• # 640853 (x2) Russell 3/8" Female Quick Disconnect to -6AN Male Fitting (Fuel Regulator Feed from Pump and Fuel Rail Fitting)
• # 640863  Russell 5/16" Female Quick Disconnect to -6AN Male Fitting (Fuel Regulator Return Line Fitting)
• # 660443 (x2) Russell 1/4" NPT to -6AN Adapter fitting (Fuel Pump Pickup and Return Line Fittings)
• # 624013 (x6)  Russell Straight -6AN Straight Twist-Lok Fittings
• # 634173 (25 feet)  Russell -6AN Black Twist-Lok Fuel Hose

Click Here for a diagram on how to run fuel lines using this kit.

UT-N Series, 48G, , 48-CG, 51-CG, 53-CG, 48-CGX, 51-CGX, and 53-CGX

The tanks listed above require the LS-LINE-KIT45.  This kit has two 45 degree fittings instead of straight.  These tanks have a recessed bowl where the fuel pump is mounted.  The 45 degree fittings point up out of the bowl for easier accessibility.
