Flexible Engine Dipsticks for Ford
| Article number: | 005332 |
| Quantity: | 1 |
Flexible Engine Dipsticks for Ford

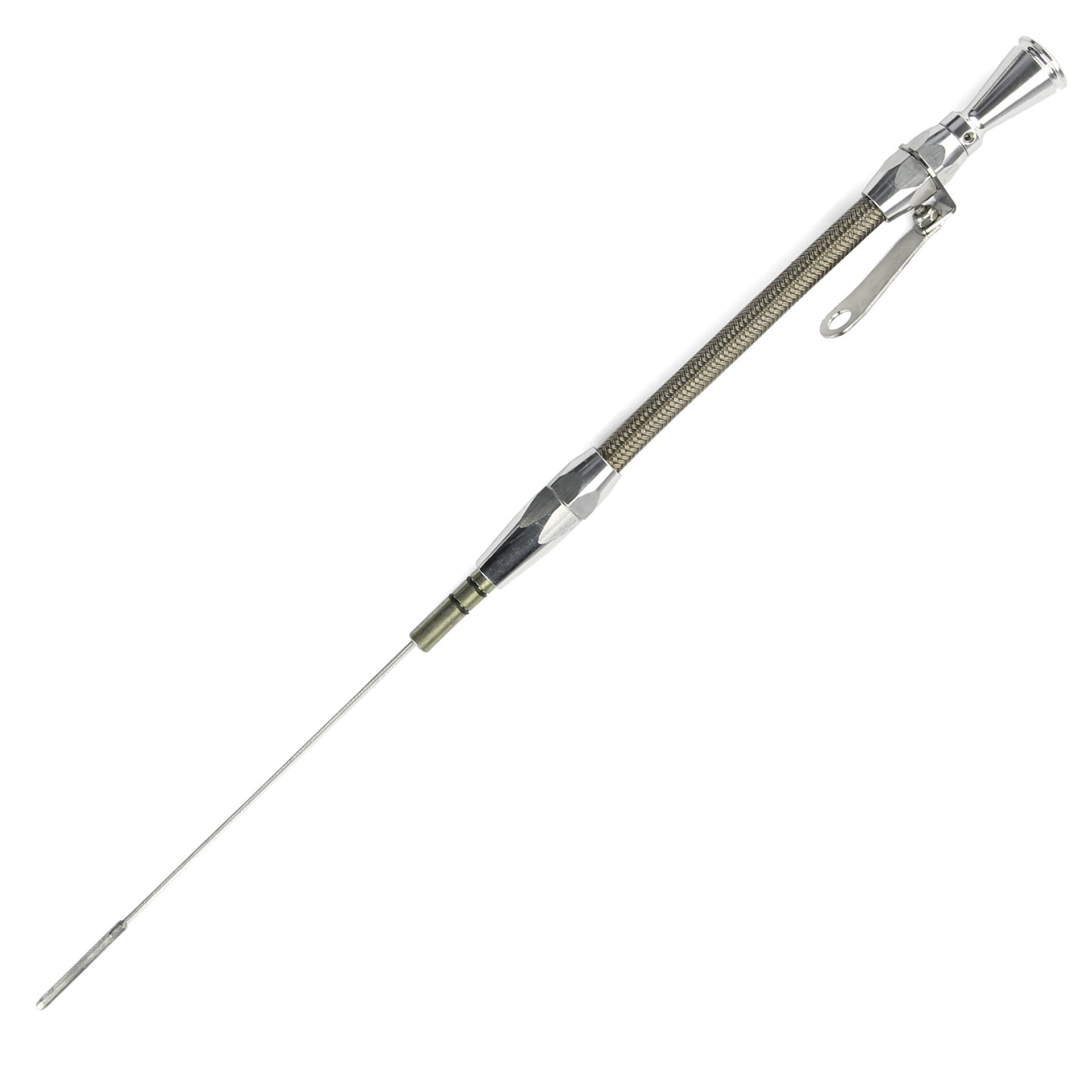

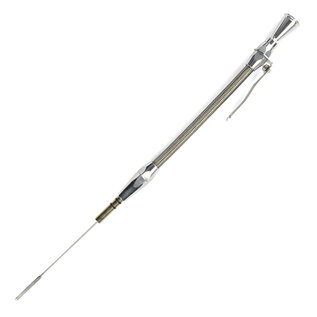

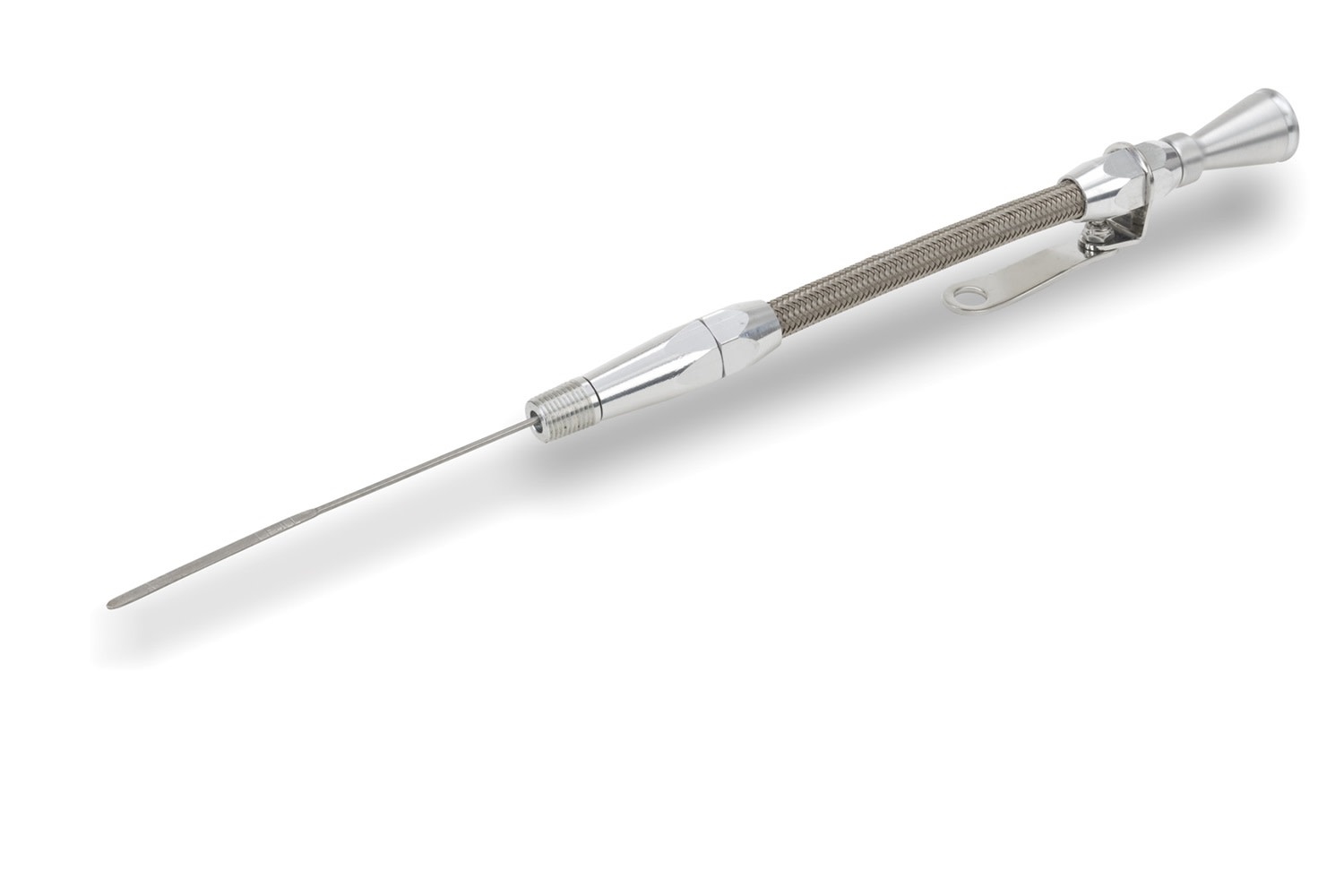

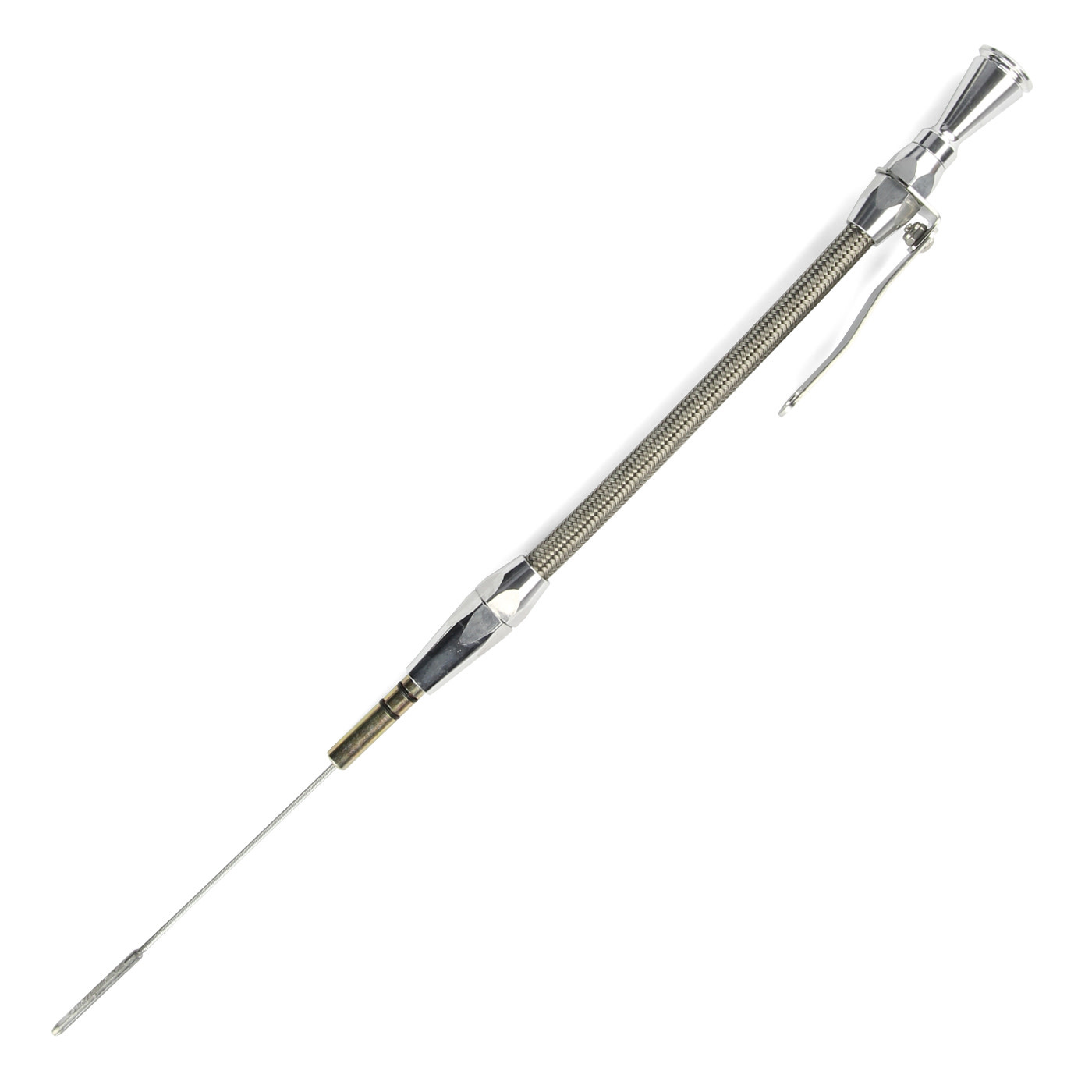

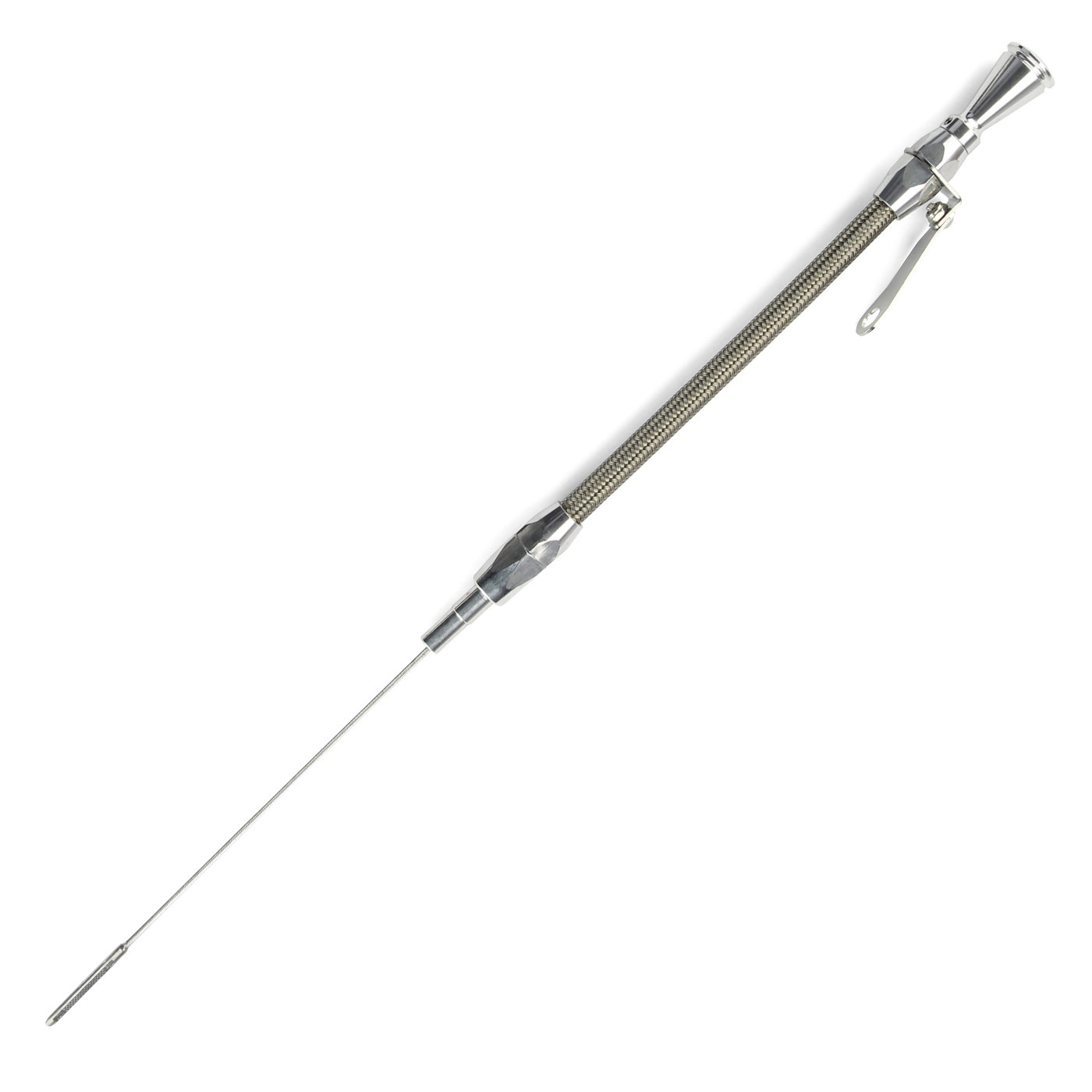

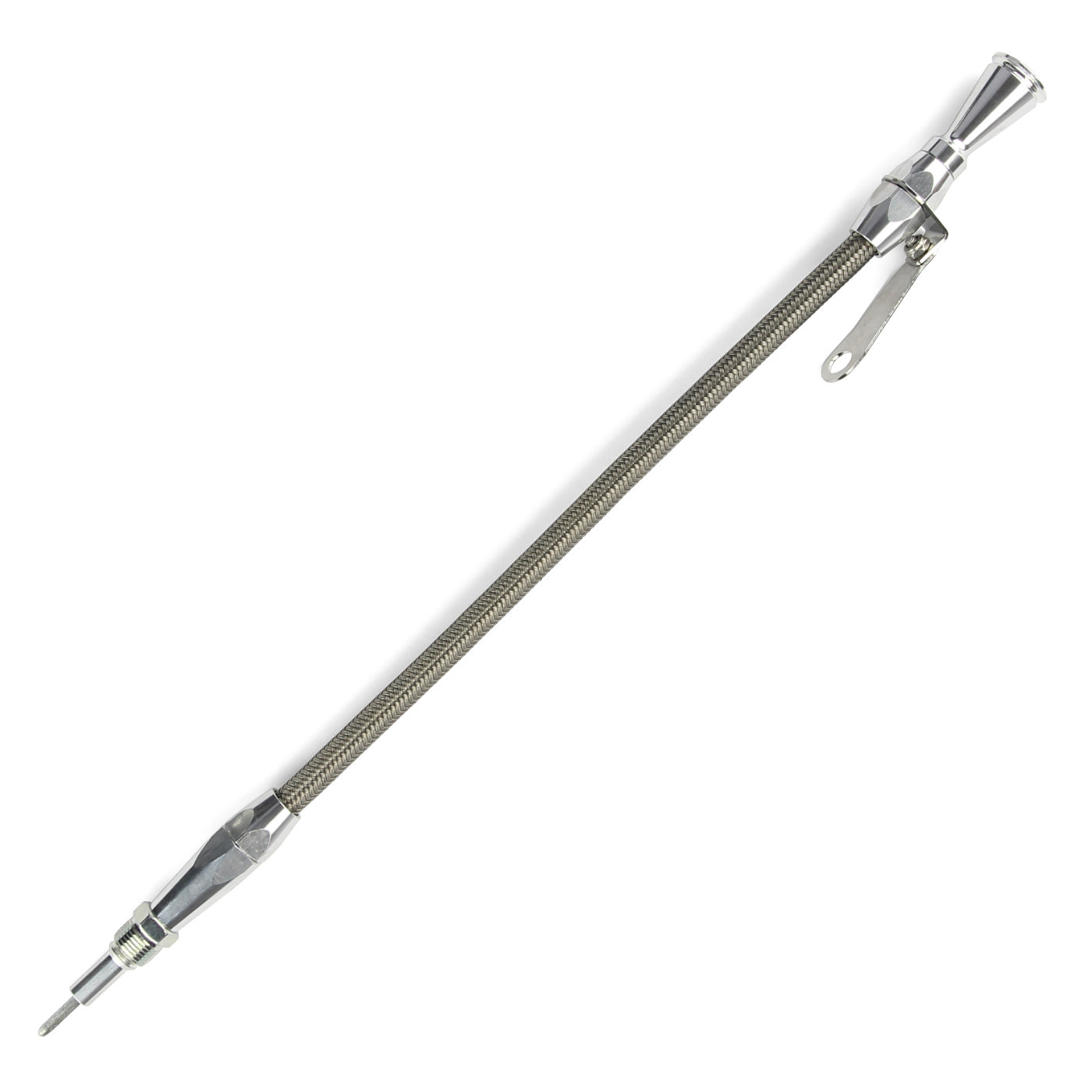

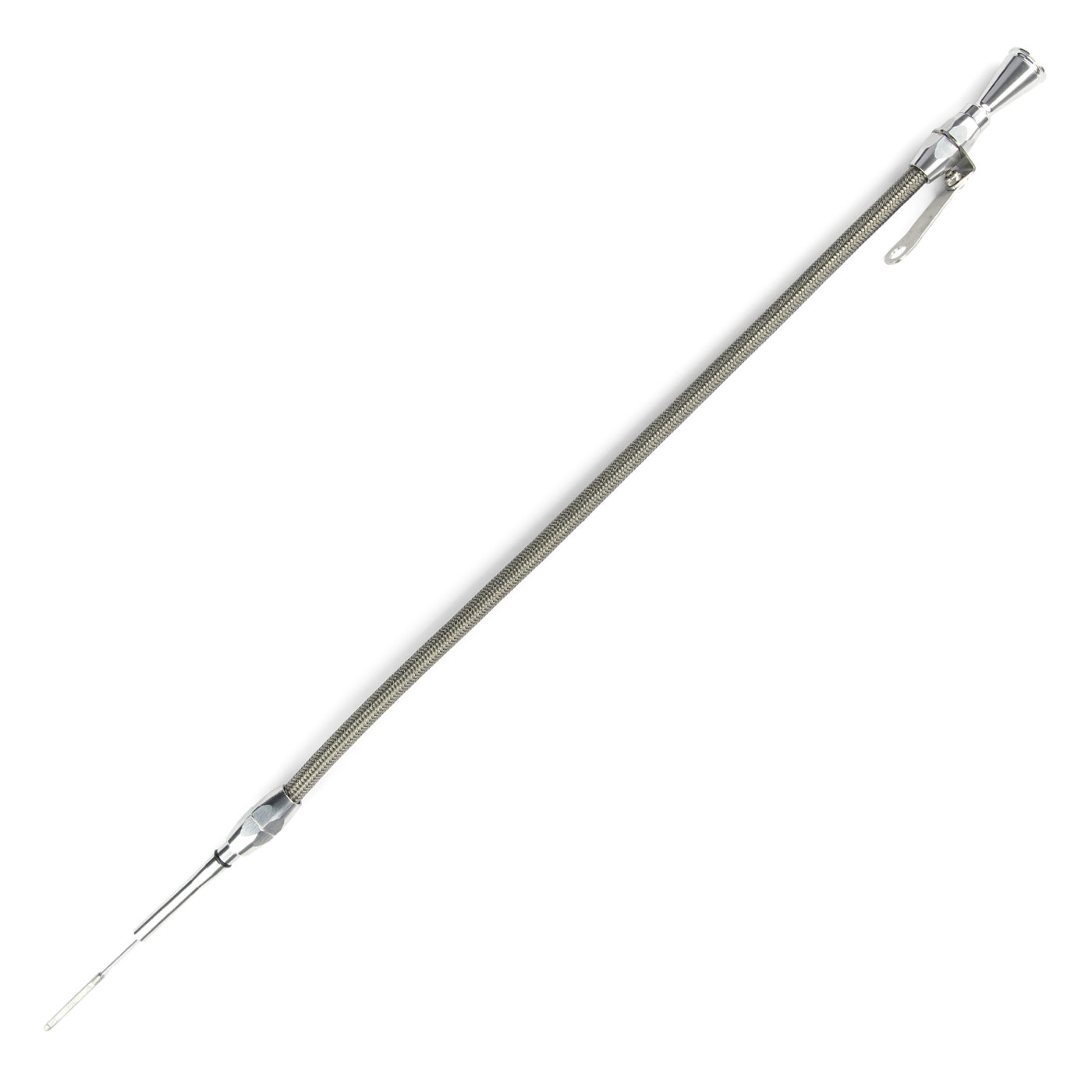

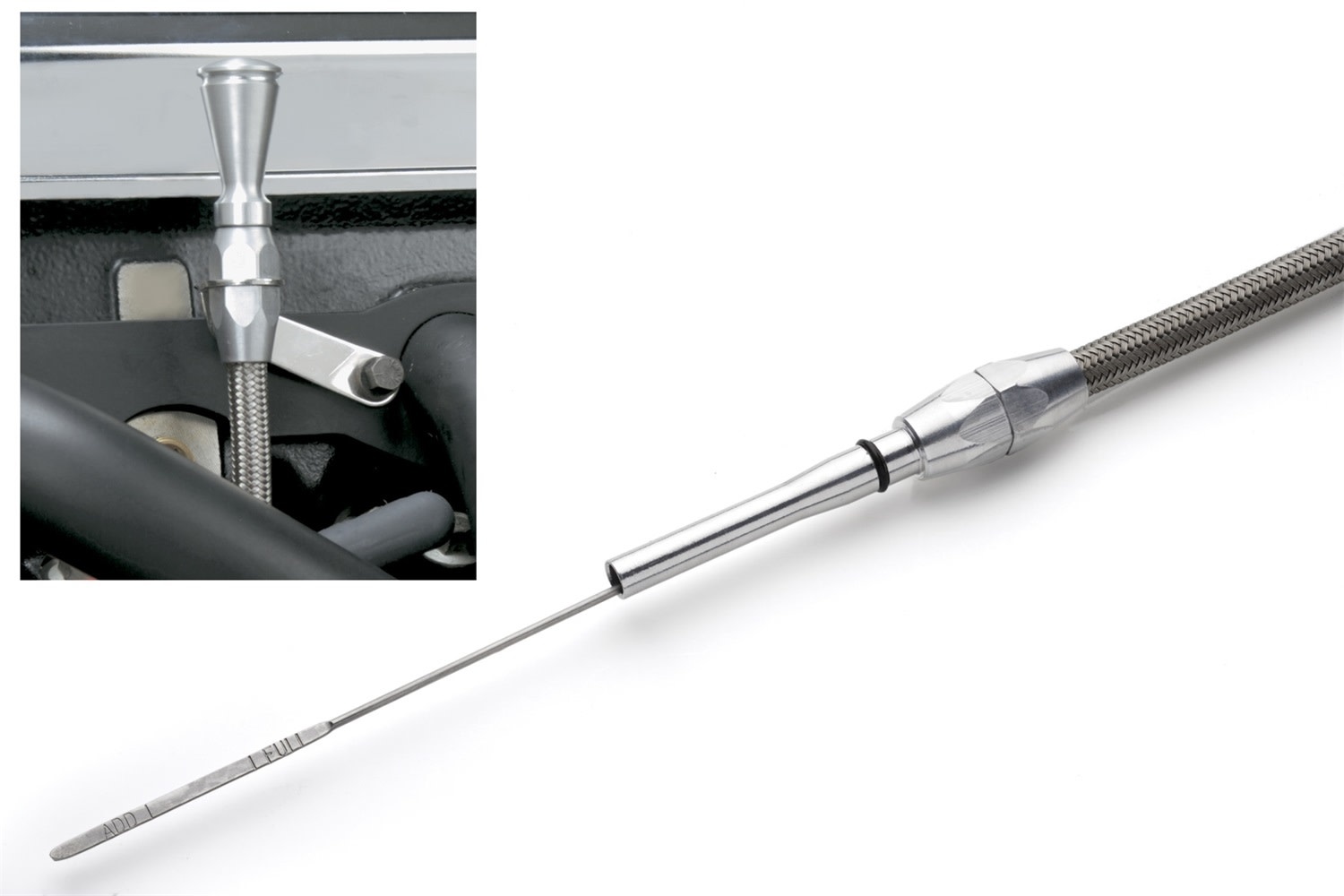

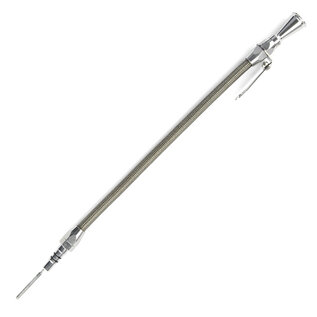

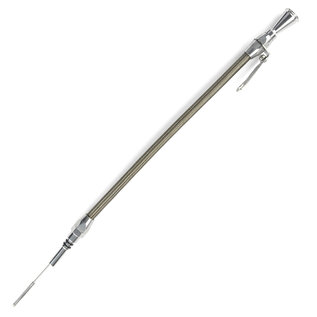

Flexible Engine Dipsticks are designed with a billet aluminum handle to coordinate with Lokar's Flexible Transmission Dipstick. Slim design allows mounting inside headers. Designed for use with factory or block hugger headers. Applications available for GM, Ford and Chrysler. E-Z to Read flexible inner dipstick measuring cable for accurate measure of engine oil.
Note: Some after-market oil pans may require a custom made dipstick.
|
Engine |
Style |
Stainless Housing |

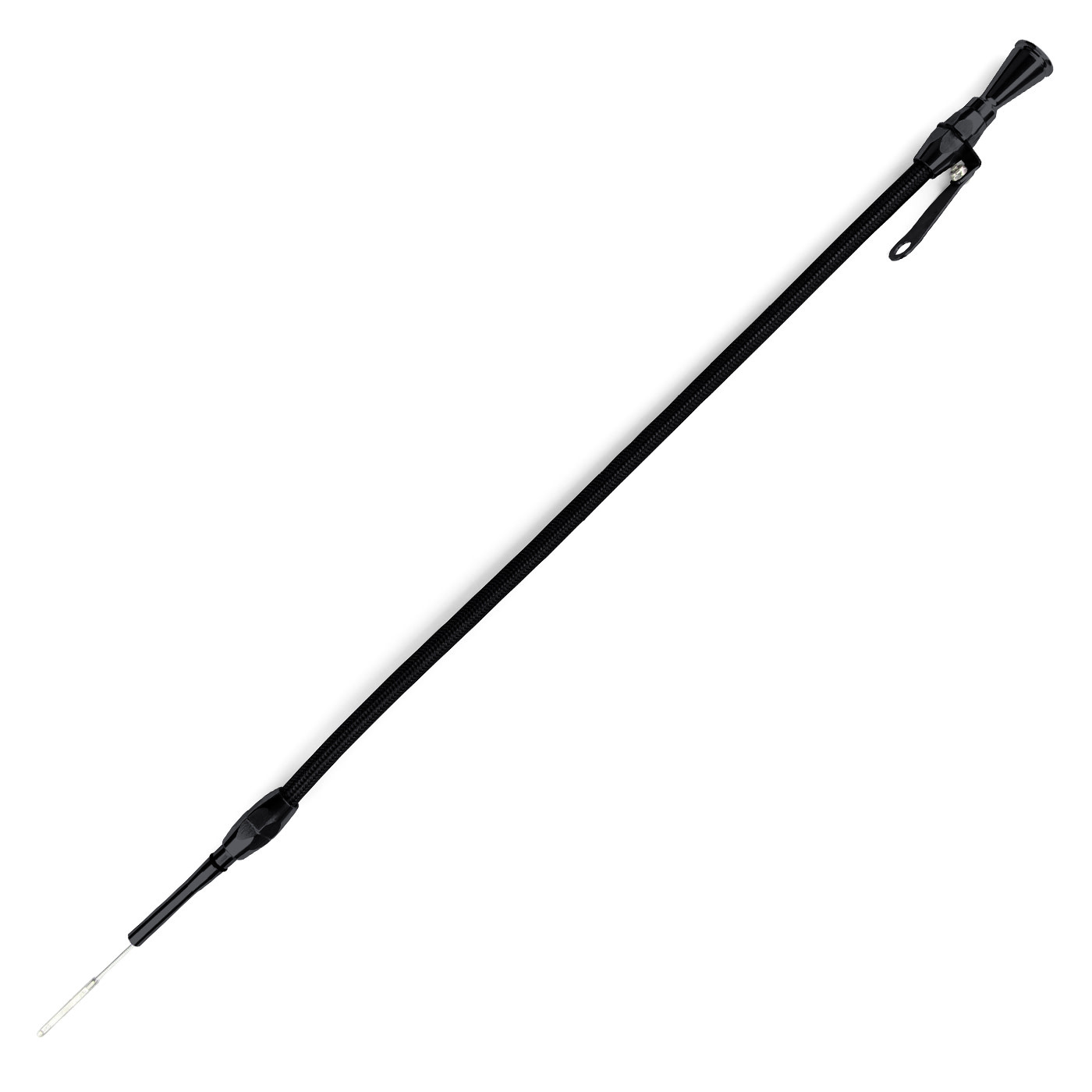

Black Stainless Housing |
Instructions |
|
Ford Flathead V8 1937-1953 |
Screw into Pan 1/2"-20 |
ED-5016 |
XED-5016 |
INS0071 |
|
Ford Early 289/302 |
Through Timing Chain Cover |
ED-5010 |
XED-5010 |
INS0071 |
|
Ford 302 5.0L - 1986-1995 |
Push into Block Driver's side |
ED-5004 |
XED-5004 |
INS0071 |
|
Ford 302 (Crate Engines Only) |
Push Into Pan |
ED-5013 |
XED-5013 |
INS0071 |
|
Ford 351W |
Screw into Pan 5/8"-18 |
ED-5005 |
XED-5005 |
INS0071 |
|
Ford 351 Cleveland/(302/351 Australia) 1969-1974 (US), 1971-1984 (AUS) |
- |
ED-5023 |
XED-5023 |
INS0071 |
|
Ford 4.6 Modular, 2 Valve 1994 & Later |
Push Into Block Driver's Side |
ED-5014 |
XED-5014 |
INS0071 |
|
Ford FE |
Push into Block/Front Sump |
ED-5012 |
XED-5012 |
INS0071 |
|
Ford Big Block 460/514 (Crate Engines Only) |
Push Into Pan |
ED-5011 |
XED-5011 |
INS0071 |
