CVF Racing Chevy LS Engine Mid Mount Serpentine Kit - Alternator Only

CVF Racing CVF Racing Chevy LS Engine Mid Mount Serpentine Kit - Alternator Only CVF Racing CVF Racing Chevy LS Engine Mid Mount Serpentine Kit - Alternator Only CVF Racing CVF Racing Chevy LS Engine Mid Mount Serpentine Kit - Alternator Only
CVF Racing CVF Racing Chevy LS Engine Mid Mount Serpentine Kit - Alternator Only
CVF Racing CVF Racing Chevy LS Engine Mid Mount Serpentine Kit - Alternator Only
CVF Racing CVF Racing Chevy LS Engine Mid Mount Serpentine Kit - Alternator Only
$1,695.00 Excl. tax
Delivery time: Typically ships directly from manufacturer within 5-7 business days
Brand:
CVF Racing
+ -
Add to cart

Chevy LS Engine Mid Mount Serpentine Kit - Alternator Only Applications

Fits LS1, LS2, LS3, LS6 & LS7 Engines
Call for compatibility with Variable Valve Timing, VVT


All Inclusive Kit! Includes Hub Adapter, Belts, High Flow Aluminum Water Pump and More!

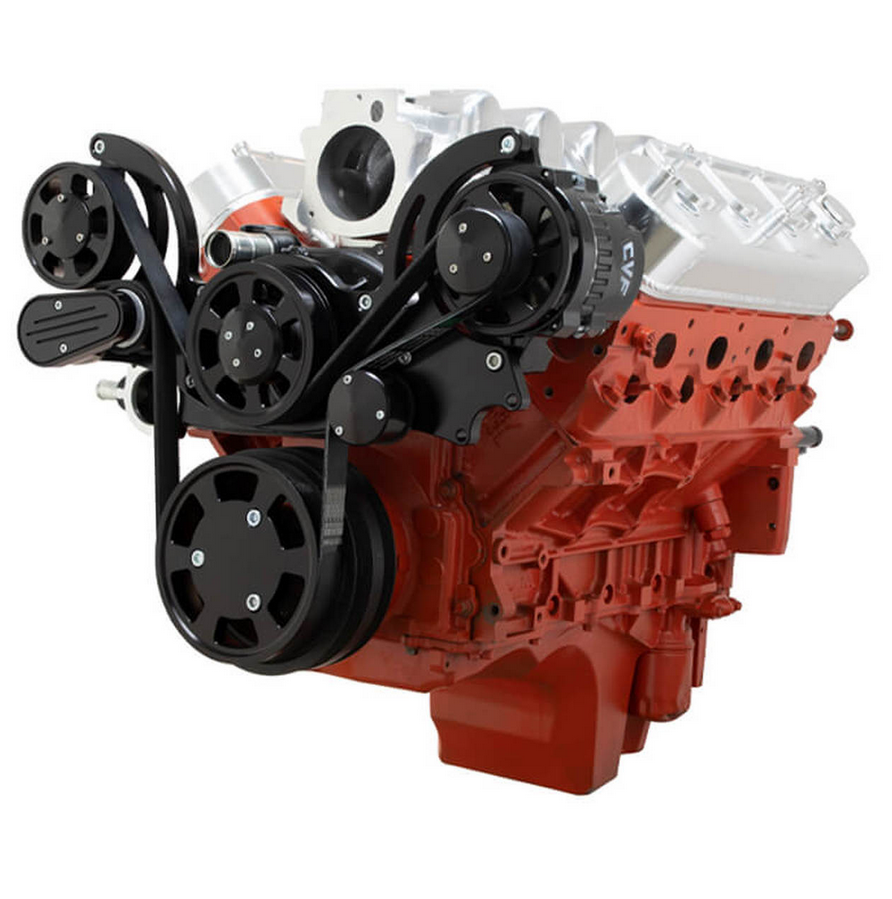

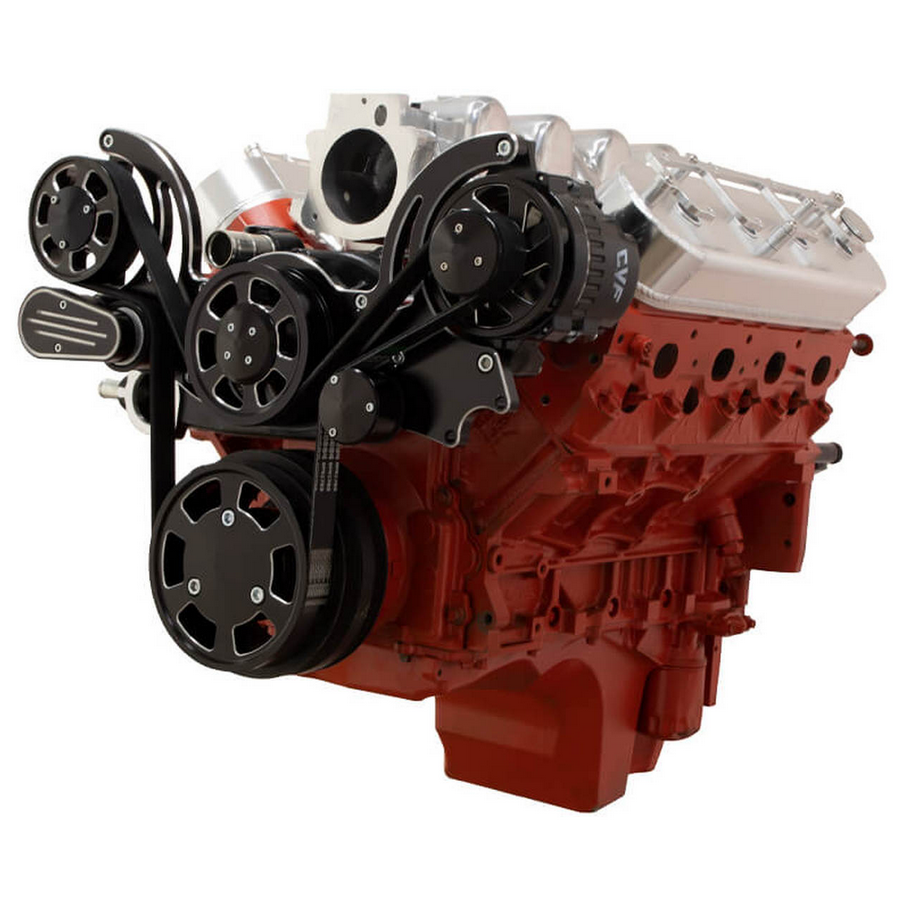

WRAPTORTM 8 Track Serpentine System for Chevy LS engines with Alternator Only. Unique 8 Rib Serpentine pulley design increases grip, reduces stretching and prevents belt slipping when compared to traditional 6 Rib designs. Spring loaded Gates belt tensioner ensures proper tension during hard acceleration and deceleration. Modular design allows you to easily add AC or Power Steering in the future just by purchasing the compressor or PS Pump & Pulley. Mounts alternator on the driver's side. Uses special LS water pump with provision for bolt on water pump pulley.


Kit Includes:
  • High Flow Aluminum Water Pump
  • 140 or 300 Amp, 1-Wire CS130 Alternator
  • Gates Premium Green Strip 8 Rib Belt
  • 8 Rib Water Pump Pulley
  • 8 Rib Crank Pulley
  • 8 Rib Alternator Pulley
  • 8 Rib AC Idler Pulley
  • Gates Spring Loaded Idler Pulley
  • One Piece Billet Aluminum Bracket
  • Hub Adapter for attaching crank pulley to OEM Balancer (or optional Fluidampr SFI Balancer)
  • Billet alternator fan

Application Notes
  • Some drive by wire applications may require Holley part# 717-15

Notes:
  • Decorative "Spoke" Design on Crank Pulley is not available with SFI Balancer.
  • Not compatible with 102mm intake
